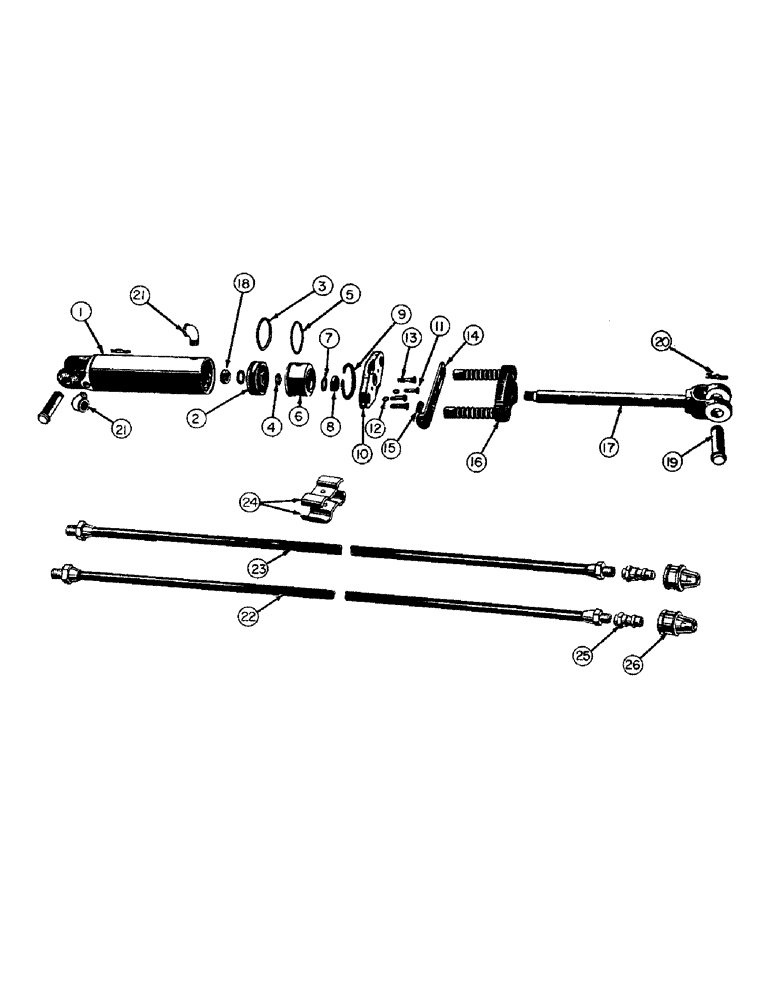

Запчасти Case 420B (122) - B3785AA REMOTE HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

B3785AA

CYLINDER - 3-1/4" x 8" hydraulic, remote

1шт.

1

4246AA

CYLINDER AND HEAD - hydraulic, remote

1шт.

2

6243A

PISTON - hydraulic cylinder

1шт.

3

O8342AB

X

"O" RING - piston

1шт.

4

O8345AB

X

GASKET - piston rod

1шт.

5

O8347AB

X

"O" RING - hydraulic cylinder

1шт.

6

6187A

HEAD - hydraulic cylinder, inner

1шт.

7

O8346AB

X

"O" RING - piston rod

1шт.

8

O3869AB

X

SEAL - oil, piston rod

1шт.

9

O9303AB

X

SNAP RING - cylinder head

1шт.

10

O8354AB

GUIDE - limit stop pin

1шт.

11

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16 - 18NC x 1-1/4

2шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

O8601AB

X

SCREW - stop latch

2шт.

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

14

3859AA

X

LATCH - limit stop

1шт.

15

O8602AB

X

SPRING - limit stop latch

1шт.

16

3756AA

STOP AND PIN - hydraulic cylinder limit

1шт.

17

4417AA

ROD AND YOKE - hydraulic cylinder piston

1шт.

18

131-369

LOCK NUT,7/8"-14, GA

NUT - self locking (7/8 - 14NF)

1шт.

19

O8361AB

X

PIN - remote cylinder

2шт.

20

VC1419

X

PIN - cotter hair

2шт.

21

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degrees street, 1/2 NPT

2шт.

22

A20816

HOSE

- coupling to remote cylinder, front (106" long)

1шт.

23

A20817

HOSE

- coupling to remote cylinder, rear (118" long)

1шт.

24

O8681AB

X

CLAMP - hydraulic hose

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

92-5

LOCK WASHER,5/16"

1шт.

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

25

4025AA

X

COUPLING - break-away self-sealing, male, complete (See figure 120 for breakdown)

2шт.

26

4026AA

X

COUPLING - break-away self-sealing, female, complete (See figure 120 for breakdown)

2шт.
