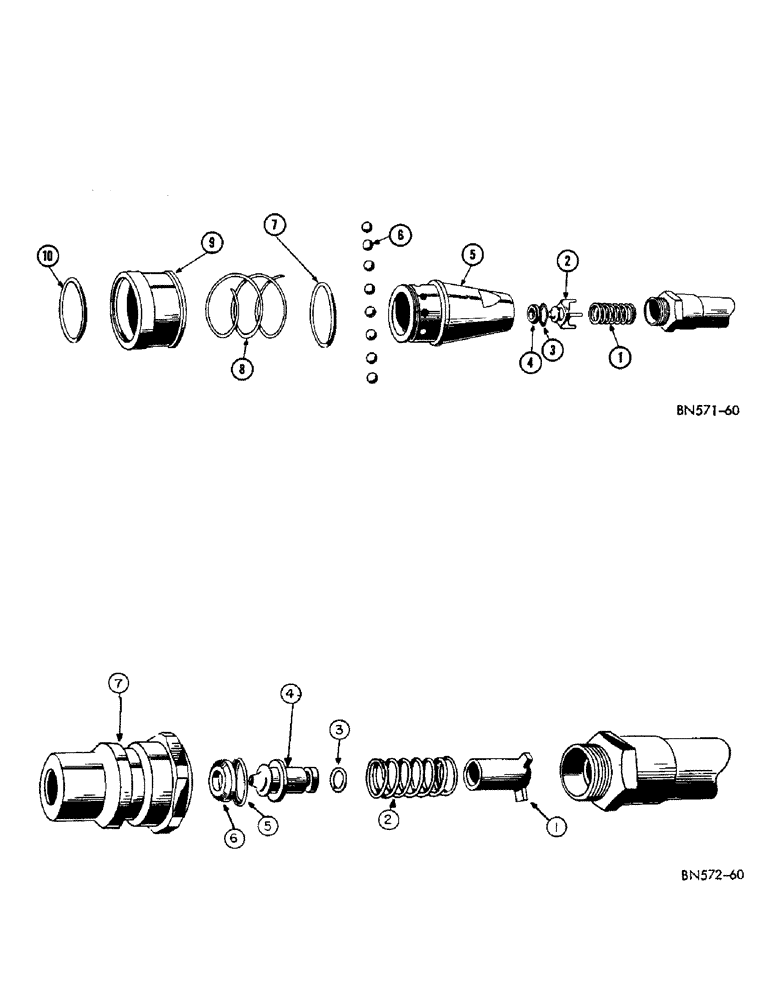

Запчасти Case 420B (120[2]) - ADAPTER PLUGS FOR BREAK-AWAY COUPLINGS (07) - HYDRAULIC SYSTEM

4026AA

X

COUPLING - break-away self-sealing female (See figure 122 for service kit)

2шт.

1

A11324

SPRING

- coupling position

1шт.

2

6119A

X

PISTON - socket

1шт.

3

A11325

X

RETAINER - seal

1шт.

4

O8372AB

X

SEAL - piston

1шт.

5

O8371AB

BODY - female coupling socket

1шт.

6

O8635AB

X

BALL - steel, socket locking (1/4" dia.)

8шт.

7

O8377AB

X

"O" RING - socket body

1шт.

8

O8379AB

X

SPRING - ball retaining sleeve

1шт.

9

O8378AB

X

SLEEVE - ball retaining

1шт.

10

O8380AB

X

SNAP RING - socket rubber

1шт.

4025AA

X

COUPLING - self-sealing break-away male (See figure 122 for service kit)

2шт.

1

A9634

SLEEVE

- coupling plug piston

1шт.

2

08375AB

SPRING - piston

1шт.

3

O8386AB

X

"O" RING - piston sleeve

1шт.

4

O8859AB

X

PISTON - coupling plug

1шт.

5

A11325

X

RETAINER - seal

1шт.

6

O8372AB

X

SEAL - piston

1шт.

7

O8381AB

X

BODY - male plug coupling

1шт.

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

PLUG - adapter to connect Case hydraulic hose to 1/2" female pipe connection (Has 1/2" male P.T. on one end and 7/8" - 18 female thread on the other end.)

1шт.

O9466AB

X

PLUG - adapter to adapt Case break-away couplings to hydraulic hose lines having 1/2" P.T. (Has 1/2" female P.T. on one end and 7/8" - 18 male thread on the other end.)

1шт.
