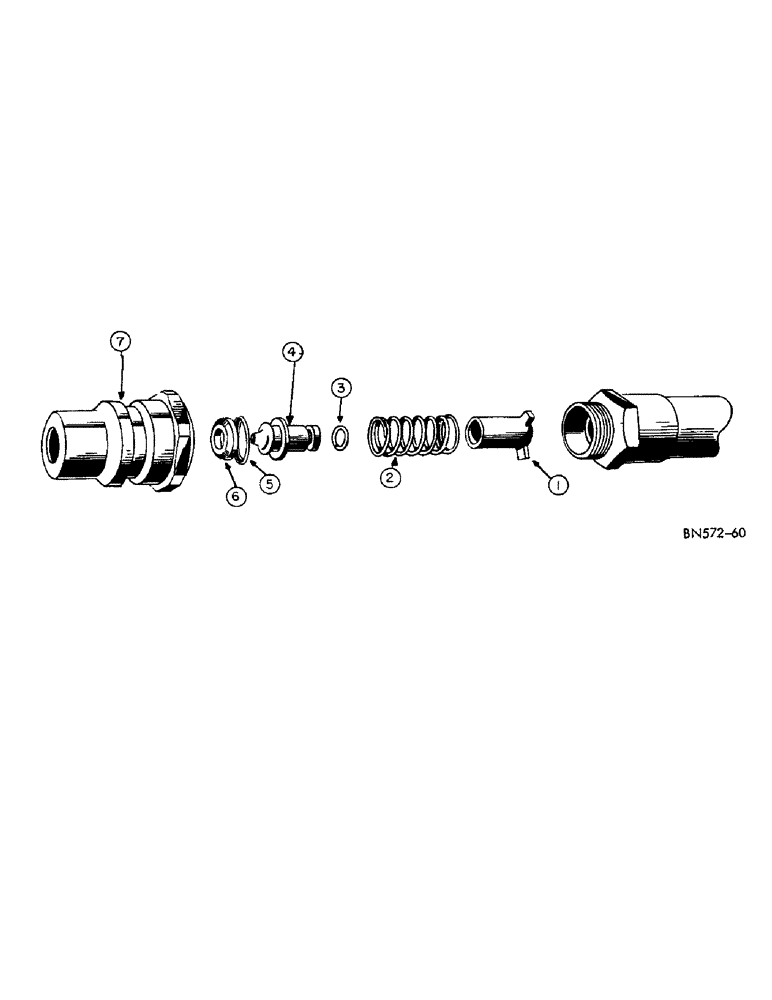

Запчасти Case 420B (120[1]) - 4025AA BREAK-AWAY, SELF SEALING COUPLING, MALE (07) - HYDRAULIC SYSTEM

4025AA

X

COUPLING - self-sealing break-away male (See figure 122 for service kit)

2шт.

1

A9631ASY

SPARE PART

- coupling plug piston

1шт.

2

08375AB

SPRING - piston

1шт.

3

O8386AB

X

"O" RING - piston sleeve

1шт.

4

O8859AB

X

PISTON - coupling plug

1шт.

5

A11325

X

RETAINER - seal

1шт.

6

O8372AB

X

SEAL - piston

1шт.

7

O8381AB

X

BODY - male plug coupling

1шт.

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

PLUG - adapter to connect Case hydraulic hose to 1/2" female pipe connection (Has 1/2" male P.T. on one end and 7/8" - 18 female thread on the other end.)

1шт.

O9466AB

X

PLUG - adapter to adapt Case break-away couplings to hydraulic hose lines having 1/2" P.T. (Has 1/2" female P.T. on one end and 7/8" - 18 male thread on the other end.)

1шт.
