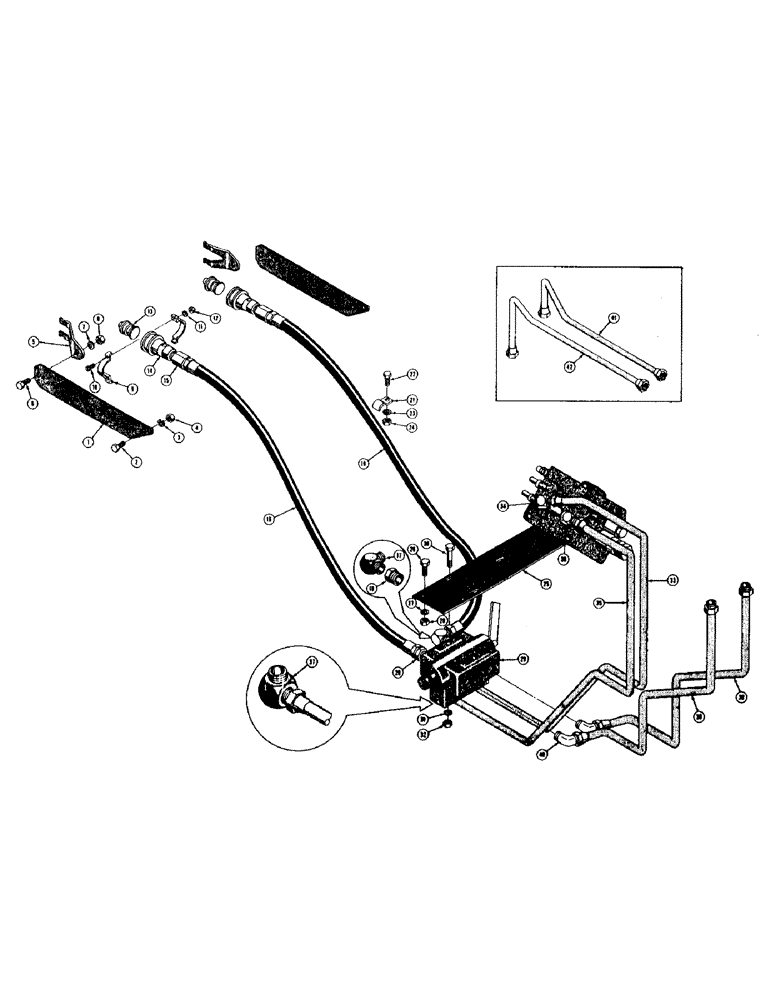

Запчасти Case 420B (118) - PULL BEHIND HYDRAULICS (WITH HYDRAULIC DOZER OR TERRALOADR) (07) - HYDRAULIC SYSTEM

1

38505

BRACKET - mounting

2шт.

2

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24NF x 1

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- hex (3/8 - 24NF)

4шт.

5

O8388AB

X

BRACKET - mounting, break-away coupling

2шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18NC)

2шт.

9

O8606AB

X

CLAMP - break-away coupling

4шт.

10

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

RHMS - #8 - 32NF x 5/8

4шт.

11

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

12

129-6

NUT,#8-32

4шт.

13

O8652AB

X

PLUG - dust

2шт.

14

4026AA

X

COUPLING - self-sealing break-away (Female) (See figure 120 for breakdown)

2шт.

4025AA

X

COUPLING - self-sealing break-away (Male) (See figure 120 for breakdown

2шт.

15

O9466AB

X

ADAPTER - hose to break-away coupling (1/2 NPT x 7/8 - 18NF male thread)

2шт.

16

38503

HOSE - diversion valve to L.H. pull behind coupling (1/2" I.D. x 7/8" O.D. x 42")

1шт.

17

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8 JIC x 1/2 NPT)

1шт.

18

221-60

TUBE

BUSHING - pipe, outside hex. (3/4 NPT x 1/2 NPT)

1шт.

19

D20804

HOSE

- diversion valve to R.H. behind coupling (1/2" I.D. x 7/8" O.D. x 30-1/2")

1шт.

20

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male (5/8 JIC x 3/4 NPT)

1шт.

21

49789

CLAMP

- hose

1шт.

22

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - 1/4 - 28NF x 1

1шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28NF)

1шт.

25

D20260

PLATE - mounting diversion valve

1шт.

26

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24NF x 1

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

2шт.

29

D20354

VALVE - diversion (See figure 74 for breakdown)

1шт.

30

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

HHCS - 3/8 - 24NF x 2-3/4

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

2шт.

33

D25763

TUBE - control valve, right rear port to diversion valve lower left port

1шт.

34

D25698

X

ELBOW - adjustable 90 degrees male (5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

35

D25761

TUBE - control valve, right front port to diversion valve lower right port

1шт.

36

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable 90 degrees male (5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

37

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degrees male (5/8 JIC x 3/4 NPT)

2шт.

38

D25770

TUBE - diversion valve, left front port to Terraload'r or dozer manifold

1шт.

39

D25764

TUBE - diversion valve, right front port to Terraload'r or dozer manifold

1шт.

40

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- 45 degrees male (5/8 JIC x 3/4 NPT)

2шт.

41

D25766

TUBE - L.H. diversion valve outlet tube to rear dozer manifold tube (Dozer only)

1шт.

42

D25768

TUBE - R.H. diversion valve outlet tube to front dozer manifold tube (Dozer only)

1шт.
