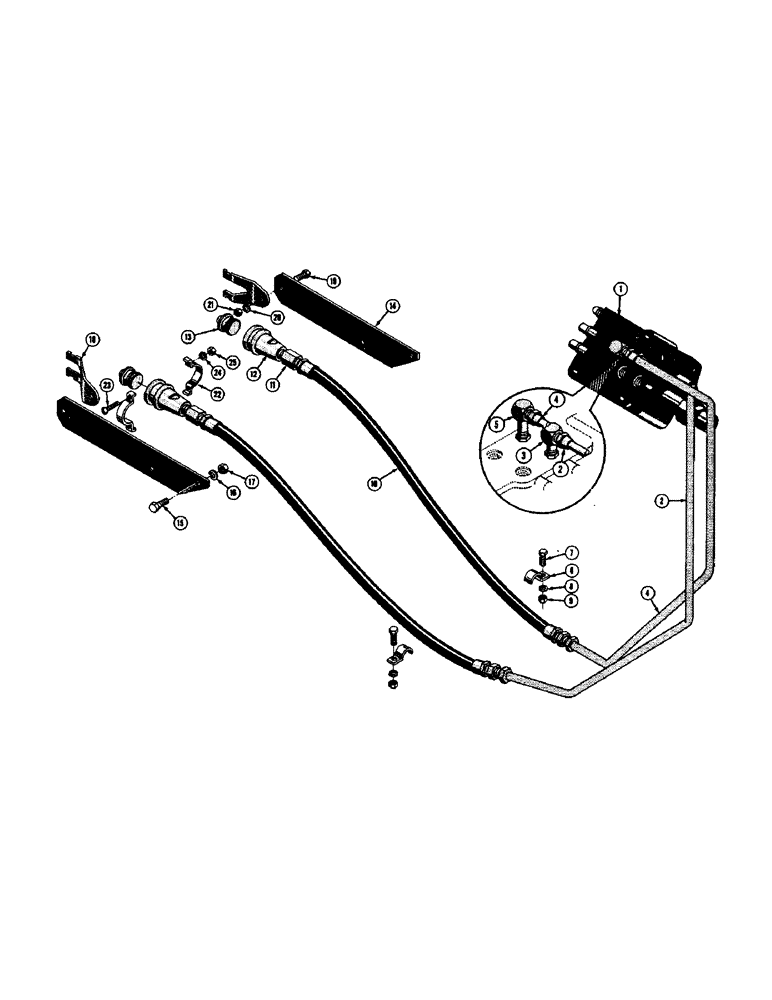

Запчасти Case 420B (116[1]) - PULL BEHIND HYDRAULICS (WITH DRAWBAR TRACTOR, THREE POINT HITCH OR MECHANICAL DOZER) (07) - HYDRAULIC SYSTEM

1

D25451

VALVE - hydraulic control (See figure 78 for breakdown)

1шт.

2

37763

TUBE - left front control valve port to R.H. hose

1шт.

3

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable 90 degrees male (5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

4

D26309

ELBOW

TUBE - left rear control valve port to L.H. hose

1шт.

5

D25698

X

ELBOW - adjustable 90 degrees male, extra long (5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

6

49789

CLAMP

- tube

2шт.

7

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

25-104

NUT,1/4"-20, G5

2шт.

10

38503

HOSE - tubes to pull behind, R.H. and L.H. (1/2" I.D. x 7/8" O.D. x 42")

2шт.

11

O9466AB

X

ADAPTER - hose to break-away coupling (1/2 NPT x 5/8 JIC)

2шт.

12

4026AA

X

COUPLING - self-sealing break-away (Female) (See figure 120 for breakdown)

2шт.

4025AA

X

COUPLING - self-sealing break-away (Male) (See figure 120 for breakdown) (Not shown)

2шт.

13

O8652AB

X

PLUG - dust

2шт.

14

38505

BRACKET - mounting

2шт.

15

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24NF x 1

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

4шт.

18

O8388AB

X

BRACKET - mounting, break-away coupling

2шт.

19

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18NC)

2шт.

22

O8606AB

X

CLAMP - break-away coupling

4шт.

23

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

RHMS - #8 - 32NF x 5/8

4шт.

24

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

25

129-6

NUT,#8-32

4шт.
