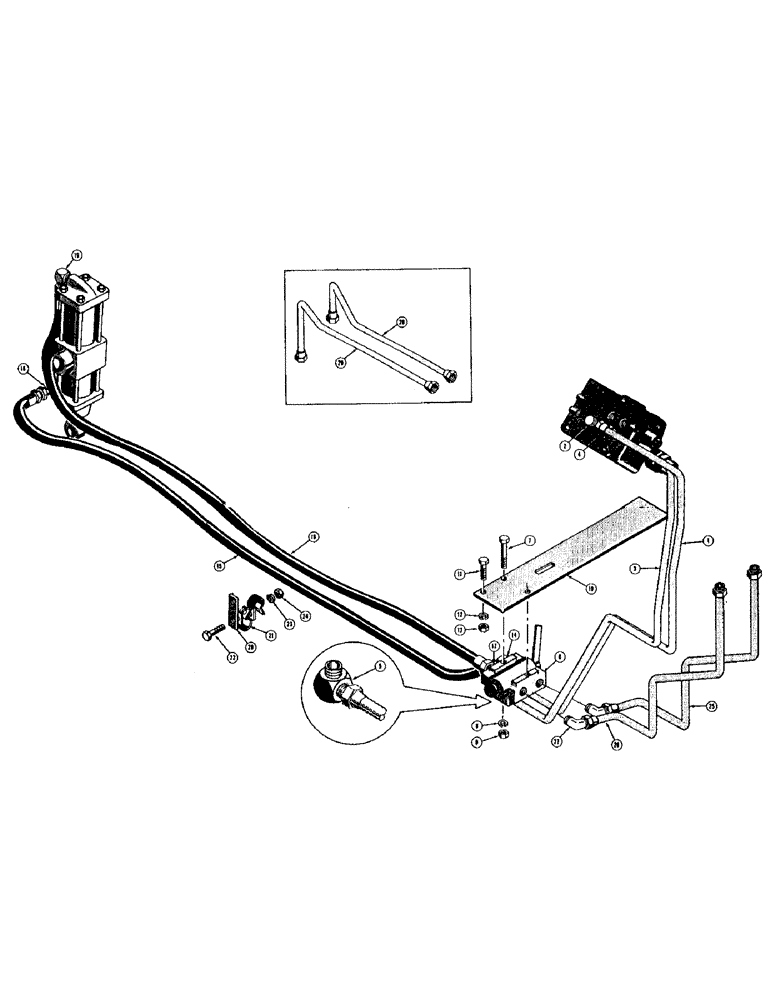

Запчасти Case 420B (114) - SCARIFIER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D25763

TUBE - control valve float spool rear port to diversion valve lower left port

1шт.

The float spool is the right hand spool of the control valve.

1шт.

2

D25698

X

ELBOW - adjustable 90 degrees male (5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

3

D25761

TUBE - control valve float spool front port to diversion valve lower right port

1шт.

The float spool is the right hand spool of the control valve.

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degrees male (5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

5

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degrees male (5/8 JIC x 3/4 NPT)

2шт.

6

D20354

VALVE - diversion (See figure 74 for breakdown)

1шт.

7

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

HHCS - 3/8 - 24NF x 2-3/4

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

2шт.

10

D20260

PLATE - mounting, diversion valve

1шт.

11

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24NF x 1

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

2шт.

14

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- 45 degrees male (5/8 JIC x 3/4 NPT)

1шт.

15

D20358

HOSE

- diversion valve to lower cylinder port (1/2" I.D. x 7/8" O.D. x 46")

1шт.

16

D20168

ELBOW - special flow restrictor (Lower cylinder port)

1шт.

17

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male (5/8 JIC x 3/4 NPT)

1шт.

18

D20356

HOSE - diversion valve to upper cylinder port (1/2" I.D. x 7/8" O.D. x 49")

1шт.

19

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male (5/8 JIC x 1/2 NPT) (Upper cylinder port)

1шт.

20

D20307

BRACKET - tube clamp

1шт.

21

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

2шт.

22

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

1шт.

23

92-6

LOCK WASHER,3/8"

1шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

1шт.

25

D25770

TUBE - diversion valve left front port to Terraload'r or dozer manifold

1шт.

26

D25764

TUBE - diversion valve right front port to Terraload'r or dozer manifold

1шт.

27

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- 45 degrees male (5/8 JIC or 3/4 NPT)

2шт.

28

D25766

TUBE - L.H. diversion valve tube to rear manifold tube (Dozer only)

1шт.

29

D25768

TUBE - R.H. diversion valve tube to front manifold tube (Dozer only)

1шт.
