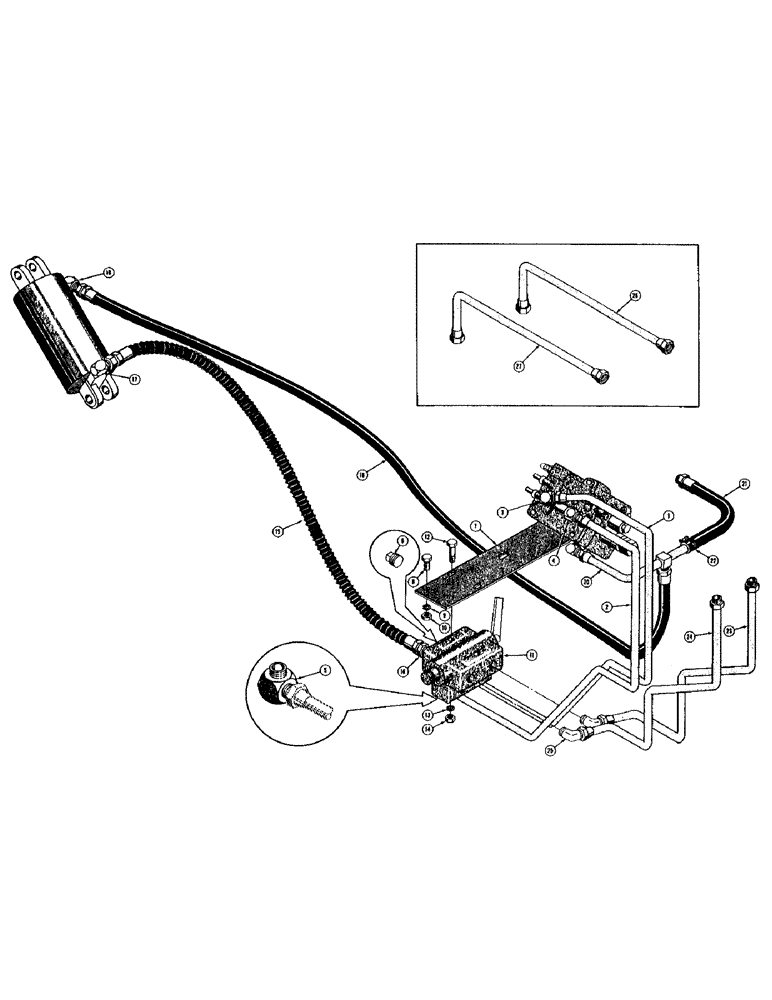

Запчасти Case 420B (110) - THREE POINT HITCH HYDRAULICS (WITH TERRALOADR OR DOZER) (07) - HYDRAULIC SYSTEM

1

D25763

TUBE - control valve, right rear port to diversion valve lower left port

1шт.

2

D25761

TUBE - control valve, right front port to diversion valve lower right port

1шт.

3

D25698

X

ELBOW - adjustable 90 degrees male (5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable 90 degrees male (5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

5

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degrees male (5/8 JIC x 3/4 NPT)

2шт.

6

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - pipe, 3/4 NPT ext. sq. hd.

1шт.

7

D20260

PLATE - mounting, diversion valve

1шт.

8

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24NF x 1

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

2шт.

11

D20354

VALVE - diversion (See figure 74 for breakdown)

1шт.

12

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

HHCS - 3/8 - 24NF x 2-3/4

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

2шт.

15

D20499

HOSE - diversion valve, right rear port to lower cylinder port (1/2" I.D. x 7/8" O.D. x 33")

1шт.

16

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male (5/8 JIC x 3/4 NPT)

1шт.

17

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degrees male (5/8 JIC x 1/2 NPT)

1шт.

18

D20502

HOSE - upper cylinder port to reservoir tube (3/8" I.D. x 7/8" O.D. x 72")

1шт.

19

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

- 45 degrees male (3/8 JIC x 1/2 NPT)

1шт.

20

D26226

TUBE - return line, valve, Serial Range: outlet-hose

1шт.

21

D26229

HOSE - return line, tube to reservoir (3/4" I.D. x 1-1/4" O.D. x 14")

1шт.

22

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

1шт.

23

D25770

TUBE - diversion valve, left front port to Terraload'r or dozer manifold

1шт.

24

D25764

TUBE - diversion valve, right front port to Terraload'r or dozer manifold

1шт.

25

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- 45 degrees male (5/8 JIC x 3/4 NPT)

2шт.

26

D25766

TUBE - L.H. diversion valve outlet tube to rear manifold tube (Dozer only)

1шт.

27

D25768

TUBE - R.H. diversion valve outlet tube to front manifold tube (Dozer only)

1шт.
