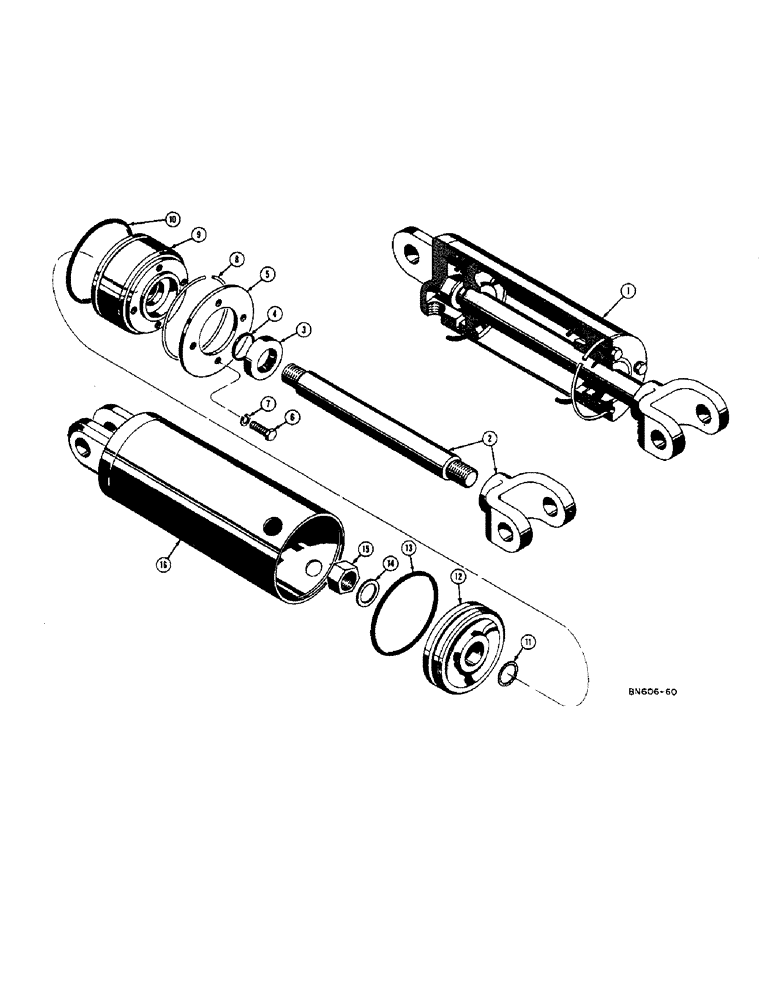

Запчасти Case 420B (108) - A8282 THREE POINT HITCH HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

A8282

CYLINDER - 4" x 6" hydraulic mounted, complete

1шт.

2

4416AA

ROD AND YOKE - piston

1шт.

3

O3869AB

X

SEAL - oil, piston rod

1шт.

4

A11251

SEALING RING

"O" RING - seal, piston rod

1шт.

5

A11249

CLAMP - cylinder head

1шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

7

92-5

LOCK WASHER,5/16"

4шт.

8

O9265AB

X

SNAP RING - cylinder head

1шт.

9

A11248

HEAD

- cylinder

1шт.

10

O8365AB

X

"O" RING - seal, cylinder head

1шт.

11

O8345AB

X

GASKET - piston rod

1шт.

12

A8968

PISTON

- cylinder

1шт.

13

O8364AB

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - seal, piston

1шт.

14

193-16

LOCK WASHER,Ext Tooth, 7/8"

WASHER - Shakeproof lock, external tooth (7/8)

1шт.

15

A11247

TUBE AND CAP - cylinder

1шт.
