Запчасти Case 420B (108[1]) - THREE POINT HITCH HYDRAULICS (WITH DRAWBAR TRACTOR OR PULL BEHIND HYDRAULICS) (07) - HYDRAULIC SYSTEM

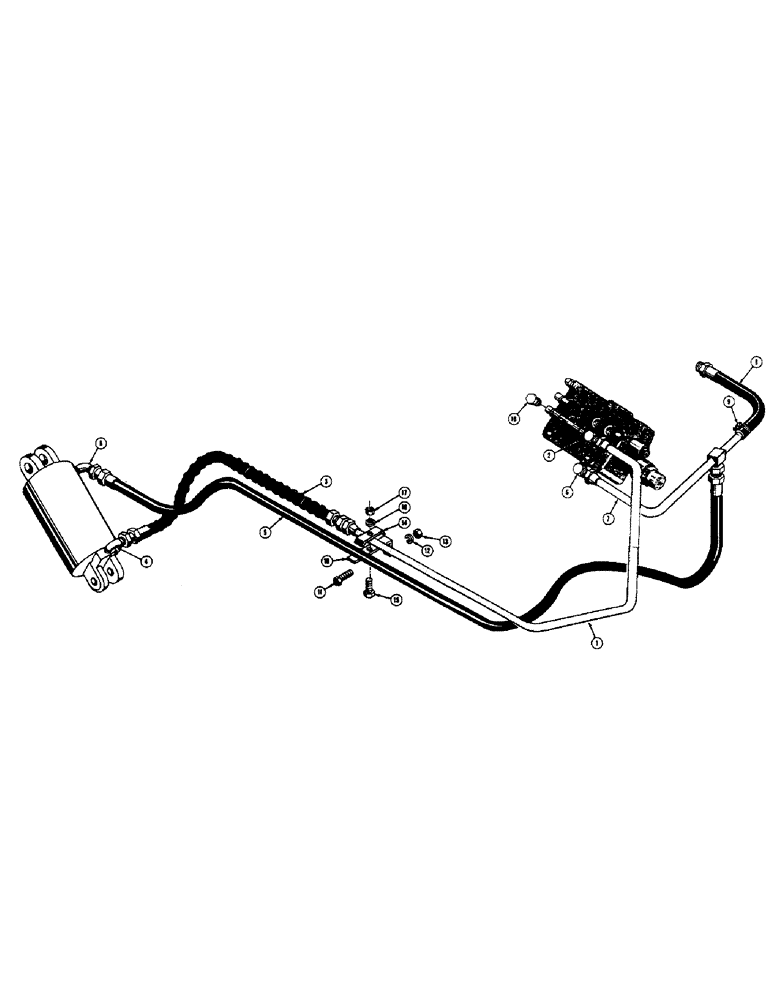

Схема запчастей Case 420B - (108[1]) - THREE POINT HITCH HYDRAULICS (WITH DRAWBAR TRACTOR OR PULL BEHIND HYDRAULICS) (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

39849

SEAL

TUBE - pressure line, valve to cylinder hose

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degrees male (5/8 JIC x 5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

3

D20499

HOSE - pressure line, rear selection (1/2" I.D. x 7/8" O.D. x 33")

1шт.

4

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degrees male (5/8" JIC x 1/2 NPT)

1шт.

5

D20502

HOSE - return line, rear section (3/8" I.D. x 3/4" O.D. x 72")

1шт.

6

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

- 45 degrees male (3/8 JIC x 1/2 NPT)

1шт.

7

D26226

TUBE - return line, valve, Serial Range: outlet-hose

1шт.

8

D26229

HOSE - return line, tube to reservoir (3/4" I.D. x 1-1/4" O.D. x 14")

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

1шт.

10

39860

SHIM

BRACKET - tube

1шт.

11

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24NF x 1

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

1шт.

14

32978

PLATE ASSY.

CLAMP - tube

1шт.

15

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

1шт.

16

92-5

LOCK WASHER,5/16"

1шт.

17

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

18

86512512

PLUG,7/8" - 14 ORB

Pipe, 5/8 JIC Hex Hd, 7/8"-14 ORB

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

Выбрано товаров: 20
