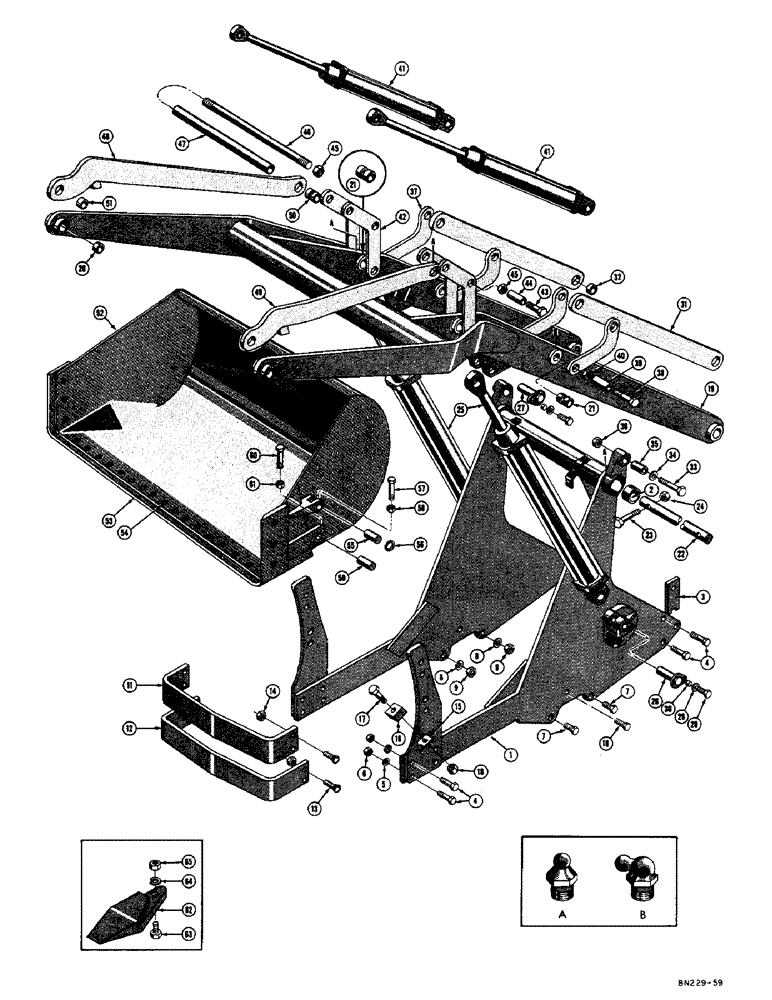

Запчасти Case 420B (090) - TERRALOADR FRAME, LIFT ARM, BUCKET, AND CYLINDERS (07) - HYDRAULIC SYSTEM

1

D24464

FRAME - main, Terraload'r (Does not include stop blocks)

1шт.

2

D23870

BUSHING

- main frame

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

2шт.

3

D20685

SPACER - main frame, rear (Between main frame and engine frame)

2шт.

4

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

10шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

25-1010

NUT,5/8"-11, G5

4шт.

7

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

9

25-1012

NUT,3/4"-10, G5

4шт.

10

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

11

D23190

PLATE - rub and reinforcement, upper

1шт.

12

D23189

PLATE - rub and reinforcement, lower

1шт.

13

164-73

HEX SOC SCREW,Flat Hd, 1/2" - 13 x 1 1/2"

SHCS - 1/2 - 13NC x 1-1/2

8шт.

14

D23332

X

NUT - special lock (1/2 - 13NC)

8шт.

15

31123

BRACKET - mounting, stop block (48" gauge Terraload'r)

2шт.

D25547

BRACKET - mounting, stop block (42" gauge Terraload'r)

2шт.

16

31636

BLOCK - stop (48" gauge Terraload'r)

2шт.

D25548

BLOCK - stop (42" gauge Terraload'r)

2шт.

17

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2 - 13NC x 2-1/2

2шт.

18

D23332

X

NUT - special lock (1/2 - 13NC)

2шт.

19

D24463

ARM - main (48" gauge Terraload'r)

1шт.

D25179

ARM - main (42" gauge Terraload'r)

1шт.

20

D21912

BUSHING

- main arm

2шт.

21

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- main arm

8шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) 90º, 1/8" NPT x .84" lg

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

2шт.

22

31318

SHAFT - mounting, main arm to main frame

1шт.

23

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

2шт.

24

D23332

X

NUT - special lock (1/2 - 13NC)

2шт.

25

D26083

CYLINDER - hydraulic lift (See figure 96 for breakdown)

2шт.

26

31109

PIN ASSY.

PIN - mounting, lift cylinder (Lower)

2шт.

27

31340

PISTON

PIN - mounting, lift cylinder (Upper)

2шт.

28

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

29

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

30

D23740

BUSHING

- lock head pin

4шт.

31

D24459

ARM - leveling

2шт.

32

DR10011

BUSHING

- leveling arm

2шт.

33

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, Hex, 1"-8 x 5", G5

2шт.

34

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (1)

2шт.

35

D24584

BUSHING - spacer

2шт.

36

230-41116

NUT,1"-8, GA

NUT - lock (1 - 8NC)

2шт.

37

D24442

LEVER - pivot (Bucket cylinder and leveling arm)

4шт.

38

13-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

4шт.

39

D24462

SPACER - pivot lever

4шт.

40

230-41116

NUT,1"-8, GA

NUT - lock (1 - 8NC)

4шт.

41

D24461

CYLINDER - hydraulic bucket (See figure 96 for breakdown)

2шт.

42

D24441

LEVER - pivot (Bucket dump arm and dump cylinder)

4шт.

43

13-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

4шт.

44

30959

SPACER - pivot lever

4шт.

45

230-41116

NUT,1"-8, GA

NUT - lock (1 - 8NC)

6шт.

46

D24460

ROD - tie

1шт.

47

D24439

SPACER - pipe

1шт.

48

34269

WASHER

ARM - bucket dump, R.H. (48" gauge Terraload'r)

1шт.

34273

ARM - bucket dump, R.H. (42" gauge Terraload'r)

1шт.

49

34270

BELT

ARM - bucket dump, L.H. (48" gauge Terraload'r)

1шт.

34274

ARM - bucket dump, L.H. (42" gauge Terraload'r)

1шт.

50

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- dump arm, rear

2шт.

51

31148

BUSHING - dump arm, front

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

2шт.

52

D24465

BUCKET - Terraload'r (5/8 cubic yard) (48" gauge Terraload'r)

1шт.

D25181

BUCKET - Terraload'r (1/2 cubic yard) (42" gauge Terraload'r)

1шт.

53

30889

EDGE - cutting, bucket (D24465 bucket)

1шт.

31258

EDGE - cutting, bucket (D25181 bucket)

1шт.

54

46-826

RIVET

- cutting edge (19 used on D25181 bucket, 21 used on D24465 bucket)

21шт.

55

32598

PIN

- mounting, bucket to dump arm

2шт.

56

31928

SHIM - bucket to dump arm mounting pin

1шт.

57

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8 - 16NC x 3-3/4

2шт.

58

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8 - 16NC)

2шт.

58

32599

PIN - mounting, bucket to main arm

2шт.

60

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

61

D23332

X

NUT - special lock (1/2 - 13NC)

2шт.

62

16988

TOOTH - digging (Optional equipment)

5шт.

63

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2 - 20NF x 2-1/4

5шт.

64

92-8

LOCK WASHER,1/2"

5шт.

65

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

5шт.
