Запчасти Case 420B (086) - D26491 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

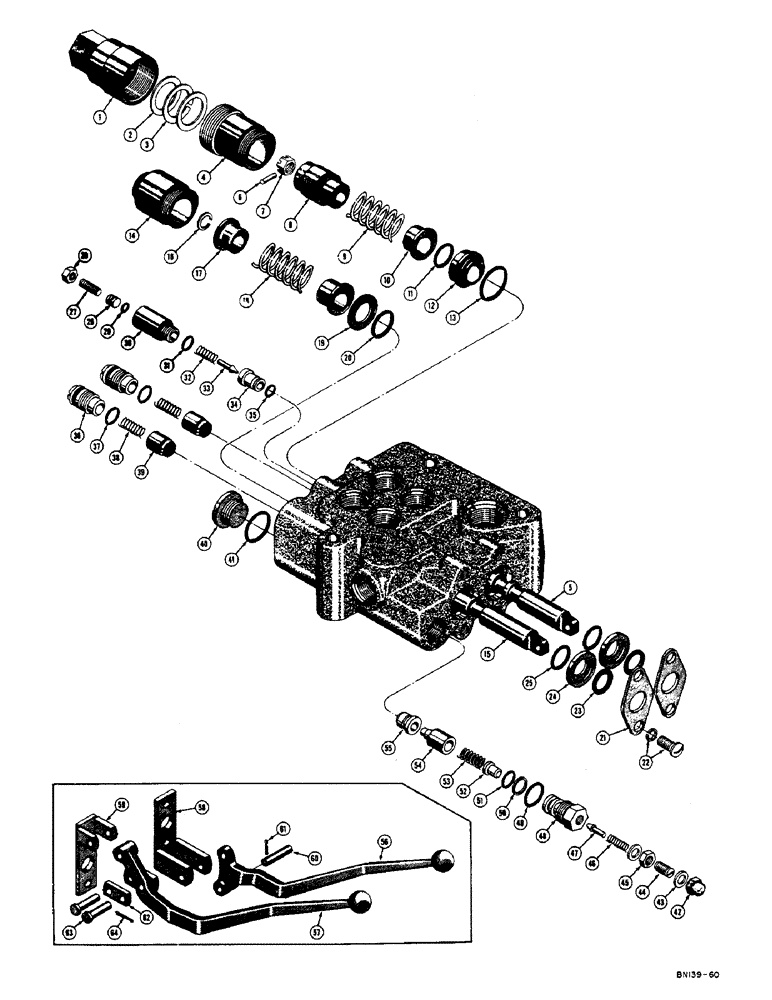

Схема запчастей Case 420B - (086) - D26491 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

D26491

VALVE - hydraulic control (Parker #VDP12DF28)

1шт.

1

D26272

CAP - four position spool

1шт.

2

D26273

WASHER - spacer

2шт.

3

A14541

RING, SNAP

SNAP RING - float detent

1шт.

4

D26271

ADAPTER - cap, four position spool

1шт.

5

D26248

SPOOL ASS'Y - four position (Color code - black, letter code - W), Serial Range: (.73700"-.73709")

1шт.

D26247

SPOOL ASS'Y - four position (Color code - blue, letter code - X), Serial Range: (.73710"-.73719")

1шт.

D26249

SPOOL ASS'Y - four position (Color code - yellow, letter code - Y), Serial Range: (.73720"-.73729")

1шт.

D26250

SPOOL ASS'Y - four position (Color code - green, letter code - Z), Serial Range: (.73730"-.73740")

1шт.

6

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

7

A14544

NUT - castle

1шт.

8

A14539

BARREL - float detent

1шт.

9

A14534

SPRING

- float detent

1шт.

10

A14538

SPACER - float detent spring

1шт.

11

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - seal

1шт.

12

A14537

RETAINER - "O" ring

1шт.

13

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"O" RING - seal

1шт.

14

A14529

CAP

- three position spool

1шт.

15

D26243

SPOOL ASS'Y - three position (Color code - black, letter code - W), Serial Range: (.73700"-.73709")

1шт.

D26244

SPOOL

ASS'Y - three position (Color code - blue, letter code - X), Serial Range: (.73710"-.73719")

1шт.

D26245

SPOOL ASS'Y - three position (Color code - yellow, letter code - Y), Serial Range: (.73720"-.73729")

1шт.

D26246

SPOOL ASS'Y - three position (Color code - green, letter code - Z), Serial Range: (.73730"-.73740")

1шт.

16

A13190

X

SNAP RING - spring retainer

1шт.

17

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

18

A14534

SPRING

- spool return

1шт.

19

A14535

RETAINER

SPACER - three position spool

1шт.

20

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - seal

1шт.

21

A14531

PLATE ASSY.

PLATE - retainer

2шт.

22

D20771

SCREW AND LOCKWASHER - retainer plate

4шт.

23

A14527

SCRAPER

RING - wiper, spool

2шт.

24

A14526

RETAINER

- wiper ring

2шт.

25

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - seal

2шт.

D26896

VALVE - overload relief, adjustable

1шт.

26

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

1шт.

27

176-395

SCREW - set, headless slotted (1/4 - 28 NF x 3/4)

1шт.

28

D26897

SPACER - overload relief spring

1шт.

29

D26899

O-RING,0.145" ID

"O" RING - seal, overload relief spring spacer

1шт.

30

D26900

CAP - overload relief valve

1шт.

31

D26282

X

"O" RING - seal, cap

1шт.

32

D26898

SPRING - overload relief valve

1шт.

33

D26278

PLUNGER - overload relief valve

1шт.

34

D26276

SEAT - plunger

1шт.

35

D26277

"O" RING - seal, plunger seat

1шт.

36

A14532

CAP

- check valve

2шт.

37

A14546

O-RING

"O" RING - seal, check valve cap

2шт.

38

A14520

VALVE SPRING

SPRING - check valve

2шт.

39

A14528

POPPET - check valve

2шт.

40

A13192

X

PLUG - pipe, Allen hd.

1шт.

41

D26410

X

"O" RING - seal, pipe plug

1шт.

42

D20756

X

NUT - acorn, pilot operated relief valve

1шт.

43

D26270

WASHER, SEALING

WASHER - special, fibre

2шт.

44

82-514

SET SCREW

SCREW - adjusting, pilot operated relief valve

1шт.

45

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex. jam (5/16 - 24 NF)

1шт.

46

D26268

SPRING

- pilot

1шт.

47

D26267

PLUNGER

- relief valve

1шт.

48

D26262

CAP

- relief valve

1шт.

49

D26263

X

"O" RING - seal, relief valve cap

1шт.

50

D26264

X

RING - backup

1шт.

51

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

"O" RING - seal

1шт.

52

D26266

SEAT

- relief valve

1шт.

53

D26261

VALVE SPRING

SPRING - relief valve

1шт.

54

D26260

VALVE POPPET

POPPET - relief valve

1шт.

55

D26259

SEAT

- poppet

1шт.

56

D25221

LEVER - control valve, R.H.

1шт.

57

D25220

LEVER - control valve, L.H.

1шт.

58

D25659

BRACKET - pivot, control valve lever, R.H.

1шт.

59

D25657

BRACKET - pivot, control valve lever, L.H.

1шт.

60

D25660

PIN - mounting, valve lever to pivot bracket

2шт.

61

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

62

D25483

LINK

- control valve, Serial Range: lever-valve

4шт.

63

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

4шт.

64

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

Выбрано товаров: 72
