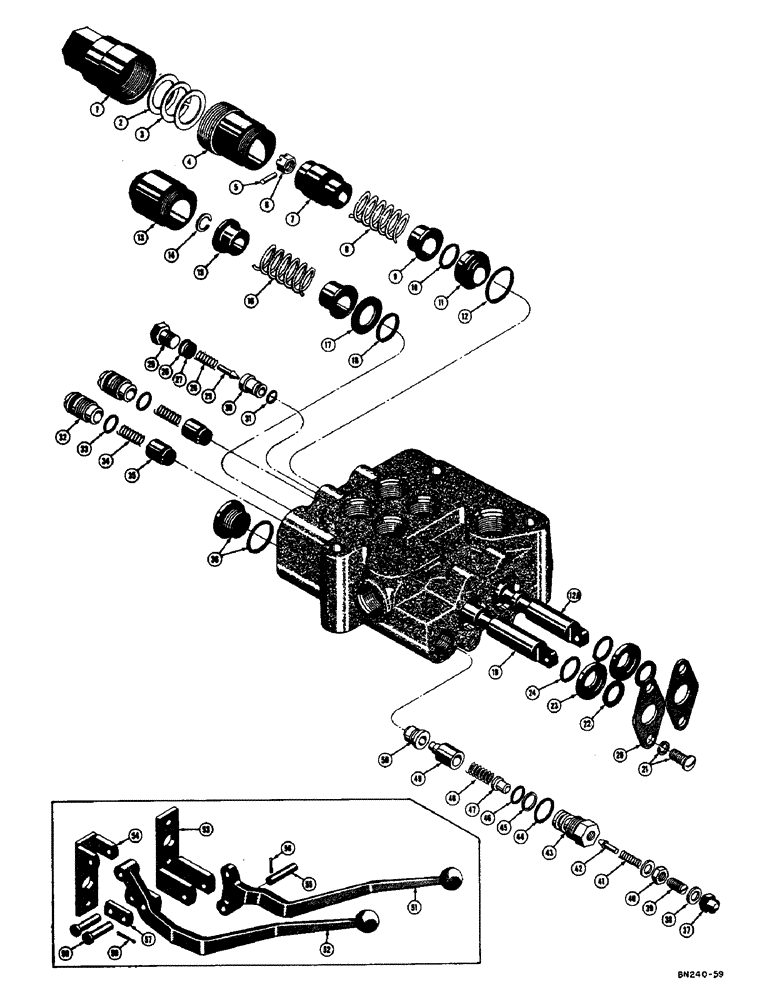

Запчасти Case 420B (082) - D25398 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
D25398
VALVE - hydraulic control (Parker #VDP12D22)
1шт.
1
D26272
CAP - float spool, outer
1шт.
2
D26273
WASHER - spacer
2шт.
3
A14541
RING, SNAP
SNAP RING - wear washer
1шт.
4
D26271
ADAPTER - cap, four position spool
1шт.
D26247
SPOOL ASS'Y - four position (Color code - blue, letter code - X), Serial Range: (.73710"-.73719")
1шт.
D26248
SPOOL ASS'Y - four position (Color code - black, letter code - W), Serial Range: (.73700"-.73709")
1шт.
D26249
SPOOL ASS'Y - four position (Color code - yellow, letter code - Y), Serial Range: (.73720"-.73729")
1шт.
D26250
SPOOL ASS'Y - four position (Color code - green, letter code - Z), Serial Range: (.73730"-.73740")
1шт.
5
138-59
LOCK PIN,1/8" x 7/8", Slotted
PIN, 1/8" x 7/8", Slotted
1шт.
6
A14544
NUT - castle
1шт.
7
A14539
BARREL - float detent
1шт.
8
A14534
SPRING
- float detent
1шт.
9
A14538
RETAINER - spring
1шт.
10
R17547
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
"O" RING - seal
1шт.
11
A14537
RETAINER - "O" ring
1шт.
12
A13184
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
"O" RING - seal
1шт.
12a
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
13
A14529
CAP
- spool
1шт.
D26243
SPOOL ASS'Y - three position (Color code - black, letter code - W), Serial Range: (.73700"-.73709")
1шт.
D26244
SPOOL
ASS'Y - three position (Color code - blue, letter code - X), Serial Range: (.73710"-.73719")
1шт.
D26245
SPOOL ASS'Y - three position (Color code - yellow, letter code - Y), Serial Range: (.73720"-.73729")
1шт.
D26246
SPOOL ASS'Y - three position (Color code - green, letter code - Z), Serial Range: (.73730"-.73740")
1шт.
14
A13190
X
SNAP RING - spring retainer
1шт.
15
A14533
BRONZE BUSHING
RETAINER - spring
2шт.
16
A14534
SPRING
- spool return
1шт.
17
A14535
RETAINER
SPACER - three position spool ass'y
1шт.
18
R17547
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
"O" RING - seal
1шт.
19
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
20
A14531
PLATE ASSY.
PLATE - retainer
1шт.
21
D20771
SCREW AND LOCKWASHER - retainer plate
4шт.
22
A14527
SCRAPER
RING - wiper, spool
2шт.
23
A14526
RETAINER
- wiper ring
2шт.
24
R17547
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
"O" RING - seal
2шт.
D26275
VALVE - overload relief, non-adjustable
1шт.
25
D26280
CAP
- overload relief valve
1шт.
26
D26282
X
"O" RING - seal
1шт.
27
D26281
SHIM - overload relief spring
1шт.
28
D26279
SPRING
- overload relief valve
1шт.
29
D26278
PLUNGER - overload relief valve
1шт.
30
D26276
SEAT - plunger
1шт.
31
D26277
"O" RING - seal, plunger seat
1шт.
32
A14532
CAP
- check valve
2шт.
33
A14546
O-RING
"O" RING - seal, check valve cap
2шт.
34
A14520
VALVE SPRING
SPRING - check valve
2шт.
35
A14528
POPPET - check valve
2шт.
36
A13192
X
PLUG - pipe, Allen hd. (Includes D26410 "O" ring seal)
1шт.
37
D20756
X
NUT - acorn, pilot operated relief valve
1шт.
38
D26270
WASHER, SEALING
WASHER - special
2шт.
39
82-514
SET SCREW
SCREW - adjusting, pilot operated relief valve
1шт.
40
25-155
JAM NUT,Jam, 5/16"-24, G5
- jam
1шт.
41
D26268
SPRING
- pilot
1шт.
42
D26267
PLUNGER
- pilot
1шт.
43
D26262
CAP
- relief valve
1шт.
44
D26263
X
"O" RING - seal, relief valve cap
1шт.
45
D26264
X
RING - backup
1шт.
46
D26265
O-RING,1.78mm Thk x 14mm ID, 70 Duro
"O" RING - seal
1шт.
47
D26266
SEAT
- pilot operator relief valve
1шт.
48
D26261
VALVE SPRING
SPRING - relief valve
1шт.
49
D26260
VALVE POPPET
POPPET - relief valve
1шт.
50
D26259
SEAT
- poppet
1шт.
51
D25221
LEVER - control valve, R.H.
1шт.
52
D25220
LEVER - control valve, L.H.
1шт.
53
D25659
BRACKET - pivot, valve lever, R.H.
1шт.
54
D25657
BRACKET - pivot, valve lever, L.H.
1шт.
55
D25660
PIN - mounting, valve lever to pivot bracket
2шт.
56
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
4шт.
57
D25483
LINK
- valve, Serial Range: lever-valve
4шт.
58
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, , Yoke 5/16" x .940"
4шт.
59
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
4шт.
Выбрано товаров: 70
