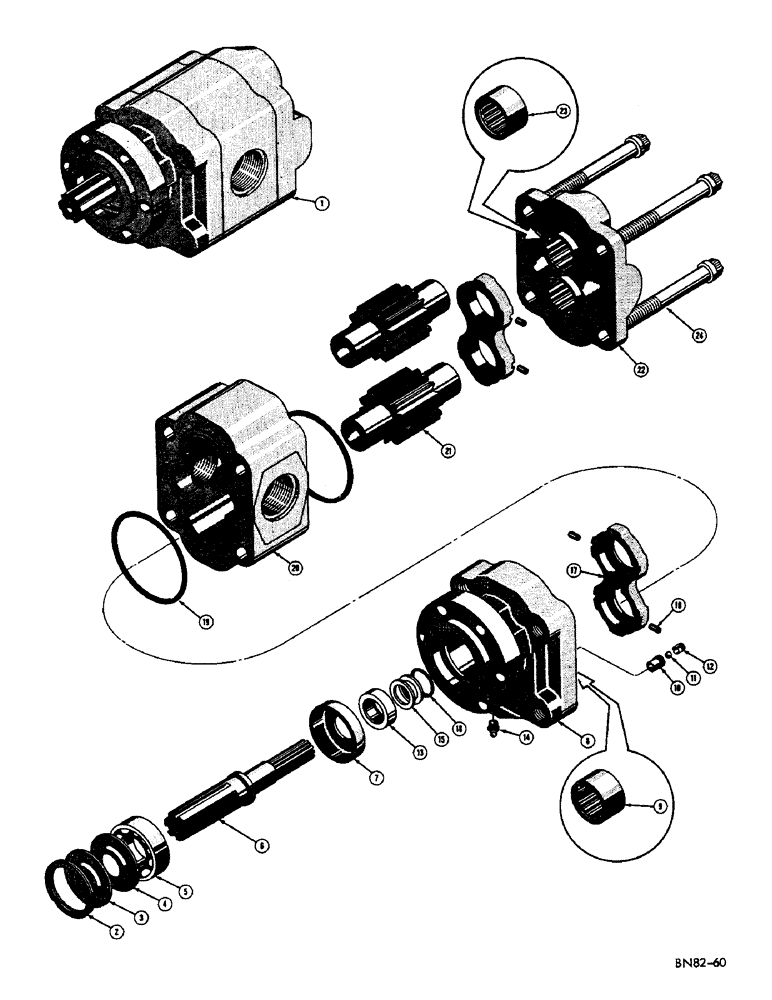

Запчасти Case 420B (076) - D25347 HYDRAULIC PUMP (20 G.P.M.) (07) - HYDRAULIC SYSTEM

1

D25347

PUMP, HYDRAULIC

PUMP - hydraulic, 20 G.P.M. (Commercial Shearing P15H302BEVC 17-9)

1шт.

2

71466

SNAP RING,#206, 2.190", Int, Spiral

- bearing shield

1шт.

3

71429

BEARING COVER

SHIELD - bearing

1шт.

4

D23270

X

SEAL - bearing

1шт.

5

73153

BALL

BEARING - ball, drive shaft

1шт.

6

D26081

SHAFT - pump drive

1шт.

7

D26074

SPACER

- bearing

1шт.

8

D26069

COVER - shaft end

1шт.

9

D26073

ROLLER BEARING,28.575 mm ID x 41.275 mm OD x 25.4 mm

BEARING - roller

2шт.

10

71430

TOOL

SEAT - check valve

2шт.

11

VT4852

X

BALL - check (5/32" dia.)

2шт.

12

71432

TOOL

RETAINER - check ball

2шт.

13

D26070

OIL RESERVOIR

SEAL - oil

1шт.

14

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 67-1/2 degrees grease, 1/8 NPT (Lincoln #5300)

1шт.

15

D26071

RING

- backup

2шт.

16

D26072

X

"O" RING - seal, drive shaft

1шт.

17

D26077

LARGE PLATE

PLATE - thrust

2шт.

18

D26078

X

SEAL - pocket, thrust plate (Short)

8шт.

D26079

X

SEAL - pocket, thrust plate (Long)

4шт.

19

D26080

O-RING

"O" RING - seal

2шт.

20

D26076

HOUSING - gear

1шт.

21

D26038

KIT - gear, drive and driven

1шт.

22

D26075

COVER - roller

2шт.

23

D26073

ROLLER BEARING,28.575 mm ID x 41.275 mm OD x 25.4 mm

BEARING - roller

2шт.

24

166-97

12 PT SCREW,Flg, 1/2" - 13 x 4 1/2", Gr 8

SCREW - counterbore ferry cap (1/2 - 13 NC x 4-1/2)

4шт.
