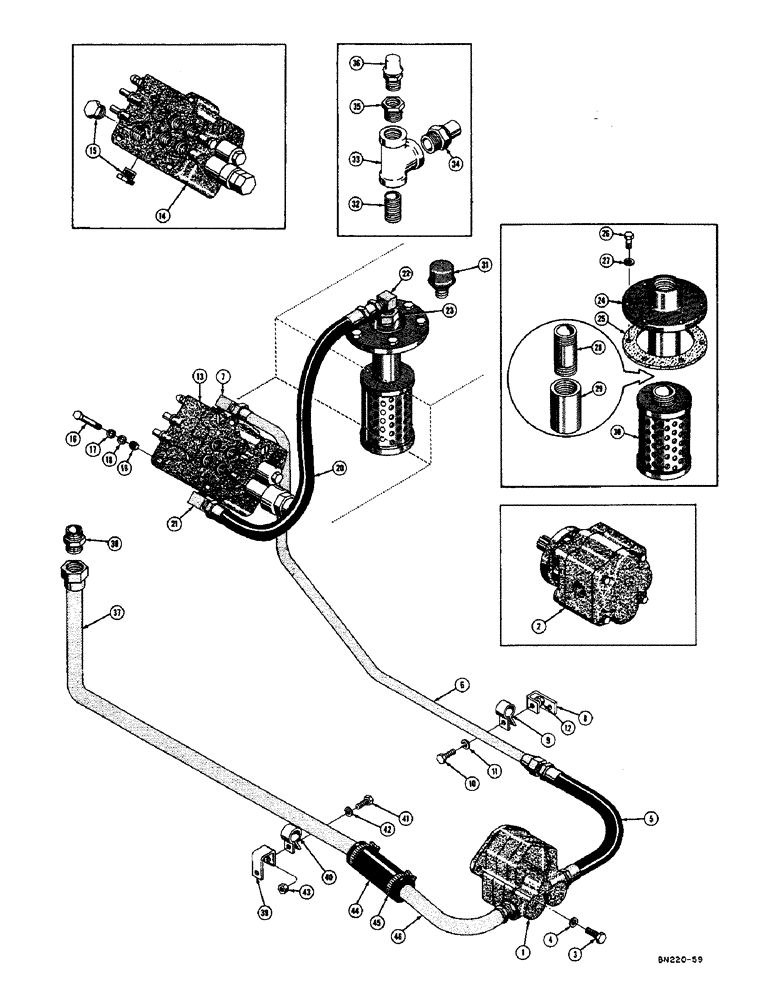

Запчасти Case 420B (072) - BASIC TRACTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D25569

PUMP, HYDRAULIC

PUMP - hydraulic (15 G.P.M.) All models except loader models or any backhoe combination (See figure 74 for breakdown)

1шт.

2

D25347

PUMP, HYDRAULIC

PUMP - hydraulic (20 G.P.M.) All loader models or any backhoe combination (See figure 76 for breakdown)

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

D25130

HOSE - pump to valve inlet, front section (3/4" I.D. x 1-5/32" O.D. x 14:)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

6

D25158

TUBE - pump to valve inlet, rear section

1шт.

7

D26683

TEE - adjustable, special (3/4 JIC x 1 JIC x 1/4 NPT)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, pressure test gauge port in adjustable tee (1/4 NPT sq. hd.) Not shown

1шт.

8

37753

BUSHING

BRACKET - tube clamp (Mounts to cylinder bracket bolts on dozer models)

1шт.

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(All models except dozer models) Not shown Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Not shown 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

1шт.

9

D25157

CLAMP - tube, pressure line

1шт.

10

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

11

92-5

LOCK WASHER,5/16"

1шт.

12

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

1шт.

13

D25451

VALVE - hydraulic control (All models except loader models or any backhoe combination) See figure 78 for breakdown

1шт.

86512512

PLUG,7/8" - 14 ORB

Pipe, LH valve ports (5/8 JIC) mechanical dozer models only (Not shown) Hex Hd, 7/8"-14 ORB

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

14

D26491

VALVE - hydraulic control (All loader models or any backhoe combination) See figure 86 for breakdown

1шт.

15

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Pipe (3/4 JIC) loader models only Hex Hd, 1 1/16"-12 ORB

2шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

16

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.

17

92-6

LOCK WASHER,3/8"

3шт.

18

95-6

WASHER,3/8"

- plain (3/8)

3шт.

19

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex. jam (3/8 - 16 NC)

3шт.

20

D25942

HOSE - control valve oulet to filter (3/4" I.D. x 1-1/4" O.D. x 24-3/8")

1шт.

21

D25354

ELBOW

- adjustable 90 degrees female (3/4 JIC x 3/4 NPT)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

22

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degrees male (3/4 JIC x 3/4 NPT)

1шт.

23

221-69

BUSHING

- hex. pipe, filter inlet (1-1/4 NPT x 3/4 NPT)

1шт.

24

38266

ARM

CAP - filter inlet (Use D26685)

1шт.

D26685

CAP - filter inlet

1шт.

25

36321

GASKET

- oil filter inlet cap

1шт.

26

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

6шт.

27

92-6

LOCK WASHER,3/8"

6шт.

28

221-264

PIPE,Nipple, 1 1/4" NPT x 3"

NIPPLE - pipe (1-1/4 NPT x 3) Use D26685

1шт.

29

221-332

COUPLING - pipe (1-1/4 NPT) Use D26685

1шт.

30

D25564

FILTER - hydraulic oil

1шт.

31

31543

BREATHER

FILTER - breather (Use D11183)

1шт.

D11183

FILTER - breather, reservoir

1шт.

32

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - close pipe (1/4 NPT x 1)

1шт.

33

221-431

TEE

- pipe (1/4 NPT x 1/4 NPT x 1/8 NPT)

1шт.

34

R15538

VALVE

BREATHER - air inlet

1шт.

35

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - hex. pipe (1/4 NPT x 1/8 NPT)

1шт.

36

R15536

VALVE

- relief, reservoir oil pressure

1шт.

37

D25155

TUBE - return line, reservoir to pump (Rear section)

1шт.

38

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

CONNECTOR - male (1-1/4 JIC x 1-1/4 NPT)

1шт.

39

37753

BUSHING

BRACKET - tube clamp (Mounts to cylinder bracket bolts on dozer models)

1шт.

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(All models except dozer models) Not shown Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Not shown 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

1шт.

40

D25156

CLAMP

- tube

1шт.

41

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

42

92-5

LOCK WASHER,5/16"

1шт.

43

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

1шт.

44

D23645

HOSE

- return line, reservoir to pump (Center section) (1-1/4" I.D. x 2" O.D. x 5")

1шт.

45

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

46

D25716

STEM

- hose, reservoir to pump (Front section) (All models except loader models or any backhoe combination)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

46

D25144

STEM - hose, reservoir to pump (Front section) (All loader models or any backhoe combination)

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.
