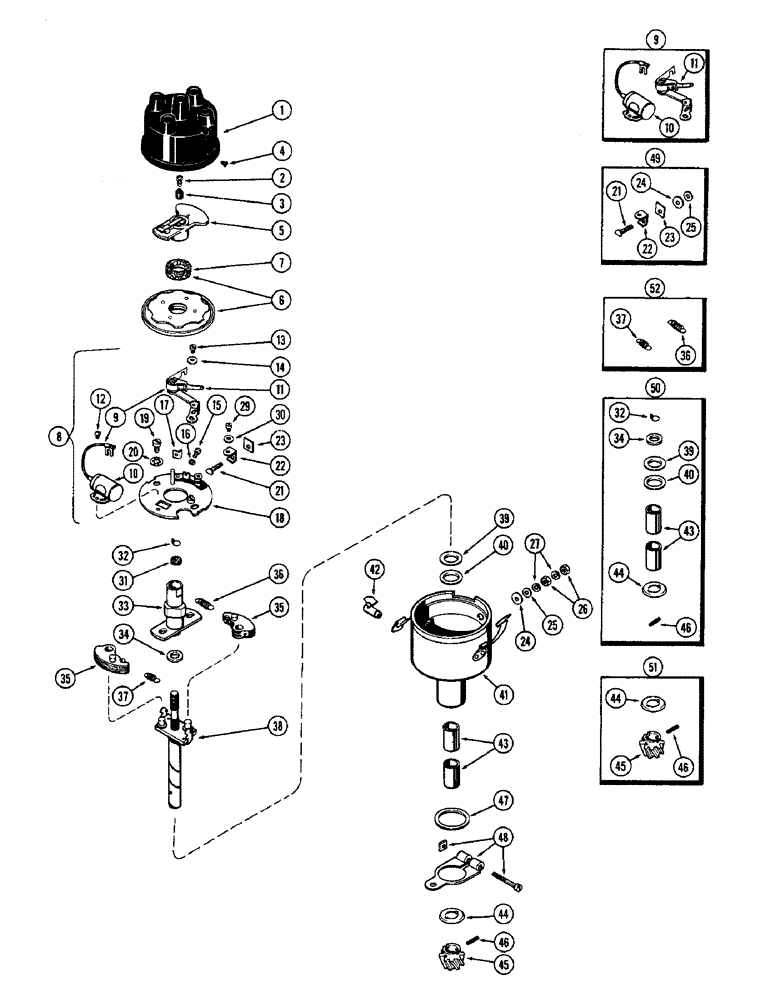

Запчасти Case 420B (030F) - DISTRIBUTOR, (148B) SPARK IGNITION ENGINE (06) - ELECTRICAL SYSTEMS

G11051

DISTRIBUTOR

ASSY. - (Prestolite #IAD-6003-2J)

1шт.

1

A8368

CAP

ASSY.

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - contact

1шт.

3

NSS

NOT SOLD SEPARAT

CONTACT - hi-tension (Carbon)

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - vent hole (Rubber)

1шт.

5

A8369

ROTOR

1шт.

6

A25194

PLATE

ASSY. - dust cover

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - dust

1шт.

8

A25196

PLATE

ASSY. - breaker

1шт.

9

A40929

KIT

- points & condenser

1шт.

10

NSS

NOT SOLD SEPARAT

CONDENSER - (Order A40929)

1шт.

11

NSS

NOT SOLD SEPARAT

POINT SET - (Order A40929)

1шт.

12

177-56

SCREW - condenser, #6-32 x 3/16" fill. hd.

1шт.

13

177-72

SCREW - points, #8-32 x 3/16" fill. hd.

1шт.

14

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

15

171-216

SCREW,Sl Flat Hd, #6 - 32 x 5/16"

- spring clamp, #6-32 x 5/16" flat hd.

1шт.

16

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

17

NSS

NOT SOLD SEPARAT

CLIP - point screw

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - (Order A25196)

1шт.

19

177-94

SCREW,Sl Fil Hd, #10 - 32 x 5/16"

- plate, #10-32 x 5/16" fill. hd.

2шт.

20

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

21

NSS

NOT SOLD SEPARAT

CONTACT - lo-tension terminal (Order ref. 49)

1шт.

22

NSS

NOT SOLD SEPARAT

CONNECTOR - lo-tension (Order ref. 49)

1шт.

23

NSS

NOT SOLD SEPARAT

INSULATION - connector (Order ref. 49)

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING - insulator (Order ref. 49)

1шт.

25

NSS

NOT SOLD SEPARAT

INSULATION - outer (Order ref. 49)

1шт.

26

129-27

NUT,Hex, #10 - 32

- hex. #10-32

2шт.

27

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

29

174-56

SCREW - connector, #6-32 x 3/16" rd. hd.

1шт.

30

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

31

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

32

A25180

RING, SNAP

RING - snap (See ref. 50)

1шт.

33

A25193

CAM

ASSY.

1шт.

34

NSS

NOT SOLD SEPARAT

SPACER - cam (Order ref. 50)

1шт.

35

A25198

WEIGHT

- governor

2шт.

36

NSS

NOT SOLD SEPARAT

SPRING - governor, large (Order ref. 52)

1шт.

37

NSS

NOT SOLD SEPARAT

SPRING - governor, small (Order ref. 52)

1шт.

38

A25177

SHAFT

- drive

1шт.

39

A24752

WASHER

- thrust, inner (See ref. 50)

1шт.

40

A24753

WASHER

- thrust, outer (See ref. 50)

1шт.

41

NSS

NOT SOLD SEPARAT

BASE ASSY. - (Order G11051)

1шт.

42

A24887

OILER - drive shaft

1шт.

43

NSS

NOT SOLD SEPARAT

BEARING - drive shaft (Order ref. 50)

2шт.

44

A25200

WASHER

- gear thrust (See ref. 50 or 51)

1шт.

45

NSS

NOT SOLD SEPARAT

GEAR - drive (Order ref. 51)

1шт.

46

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, (See ref. 51) 1/8" x 11/16", Slotted

1шт.

47

A30080

THRUST WASHER

- thrust (Not part of G11051. Order separately)

1шт.

48

A29989

ARM

- advance (Not part of G11051. Order separately)

1шт.

49

A40321

KIT

- terminal (Incl. ref. 21, 22, 23, 24, & 25)

1шт.

50

A40322

KIT

- shaft bearing (Incl. ref. 32, 34, 39, 40, 43, 44 & 46)

1шт.

51

A40323

GEAR

KIT - gear (Incl. ref. 44, 45, & 46)

1шт.

52

A25208

SET

SPRINGS - governor (Set of 2)

1шт.
