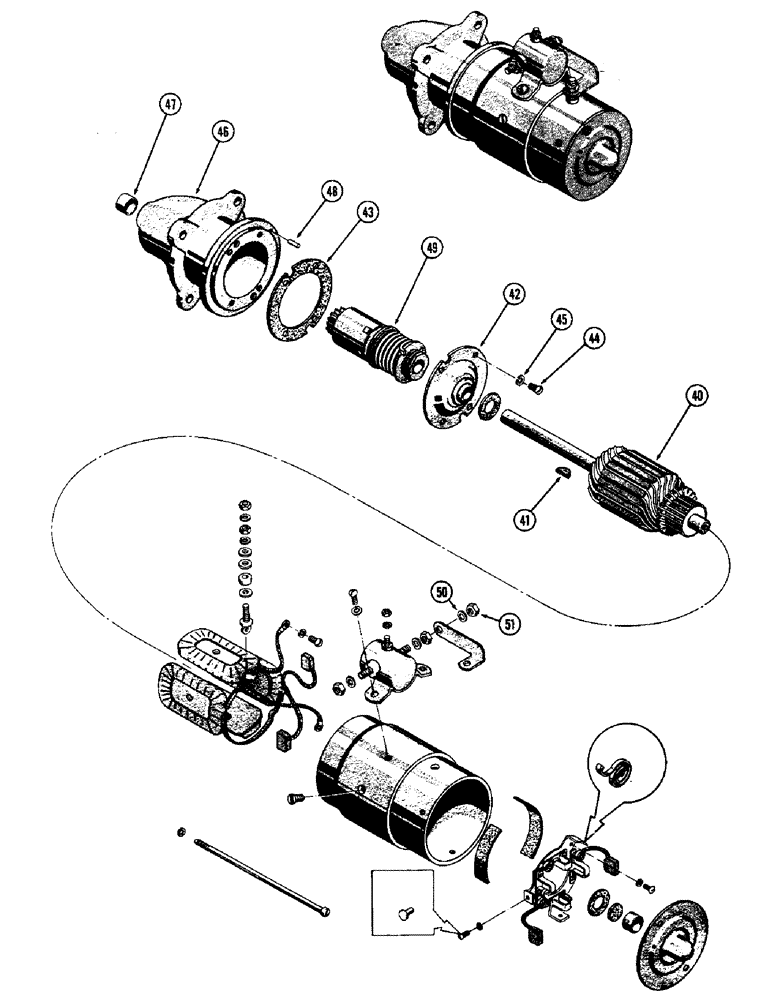

Запчасти Case 420B (030B) - G44888 STARTER, (148B) ENGINE - POSITIVE GROUND (06) - ELECTRICAL SYSTEMS

G44888

X

STARTER ASSY. - (Continued) (Order A36584)

1шт.

40

A25607

ARMATURE

1шт.

41

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Armature shaft #6, 5/32" x 5/8"

1шт.

42

G45478

PLATE

BEARING ASSY. - intermediate

1шт.

43

G46910

GASKET

- bearing plate

1шт.

44

172-221

SCREW - mach., #10-32 x 7/16" rd. hd.

4шт.

45

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

46

A25610

HOUSING

ASSY. - starter drive

1шт.

47

A25611

BEARING

- bronze

1шт.

48

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

49

A40272

DRIVE

ASSY. - starter

1шт.

50

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Solenoid term 5/16"

1шт.

51

129-122

NUT,5/16"-24, G5

1шт.
