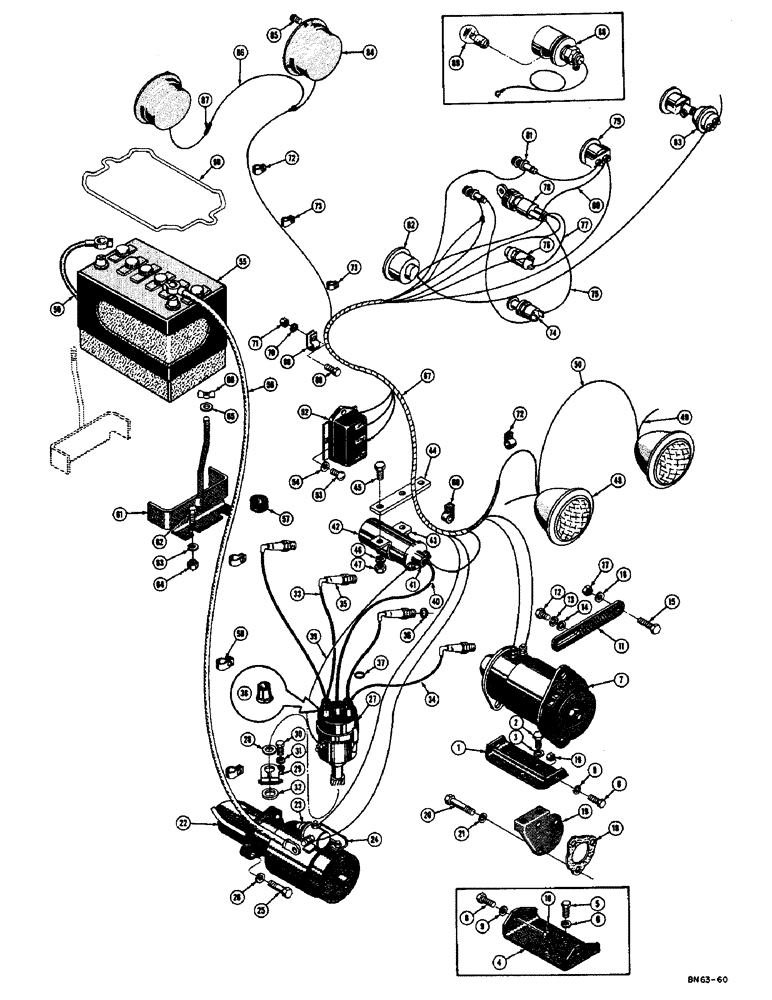

Запчасти Case 420B (028) - STARTER, GENERATOR, BATTERY, AND WIRING (06) - ELECTRICAL SYSTEMS

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Battery ground cable, not shown Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

92-6

LOCK WASHER,3/8"

not shown 3/8"

1шт.

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC) Not shown

1шт.

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber, battery ground cable (Not shown)

1шт.

60

G46215

X

BRACKET - battery hold down (Used up to serial #3014009)

1шт.

D22841

BRACKET - battery hold down (Used from serial #3014009)

1шт.

61

D25507

RETAINER - battery (Used up to serial #3014009)

1шт.

D27096

RETAINER - battery (Used from serial #3014009)

1шт.

62

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Battery retainer and ground cable Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

63

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

64

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

65

95-5

WASHER,3/8" x 7/8" x .083"

- plain, battery retainer (5/16)

2шт.

66

129-419

WING NUT,5/16"-18

NUT - wing (5/16 - 18 NC) (Used up to serial #3014009)

2шт.

129-410

WING NUT,3/8"-16

NUT - wing (3/8 - 16 NC) (Used from serial #3014009)

2шт.

67

D24941

HARNESS - main wiring

1шт.

68

49838

CLAMP

- wire, main wiring harness

2шт.

69

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

70

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

71

25-104

NUT,1/4"-20, G5

1шт.

72

O4599AB

CLAMP - wire, main wiring harness

2шт.

73

O2457AB

CLAMP - wire, main wiring harness

2шт.

74

10855

X

SWITCH - light

1шт.

75

NLS

NO LONGER SERVICED

JUMPER - light switch to ignition switch

1шт.

76

D23216

SWITCH

- push button starter

1шт.

77

33706

JUMPER - starter switch to ignition switch

1шт.

78

10868

SWITCH - ignition

1шт.

79

10860

X

GAUGE - ammeter

1шт.

80

33709

JUMPER - ammeter to ignition switch

1шт.

81

D23834

HOLDER

- fuse (Includes 1 - 25 AGC fuse)

2шт.

82

33481

X

METER - engine hours, 12 volts

1шт.

83

D28798

SWITCH

- pressure

1шт.

84

30903

LIGHT - tail, 12 volt

2шт.

33686

BULB

- tail light (Mfr. #1141) Not shown

1шт.

85

187-29

SCREW

- self tapping, tail light

6шт.

86

D25482

JUMPER - to R.H. tail light

1шт.

87

D23414

CONNECTOR - terminal, female

1шт.

88

D26513

LIGHT - dash

1шт.

89

D26704

X

BULB - dash light (Mfr. #57)

1шт.
