Запчасти Case 420B (070) - TOOLS, GREASE GUN, AND DECALS (05) - UPPERSTRUCTURE CHASSIS

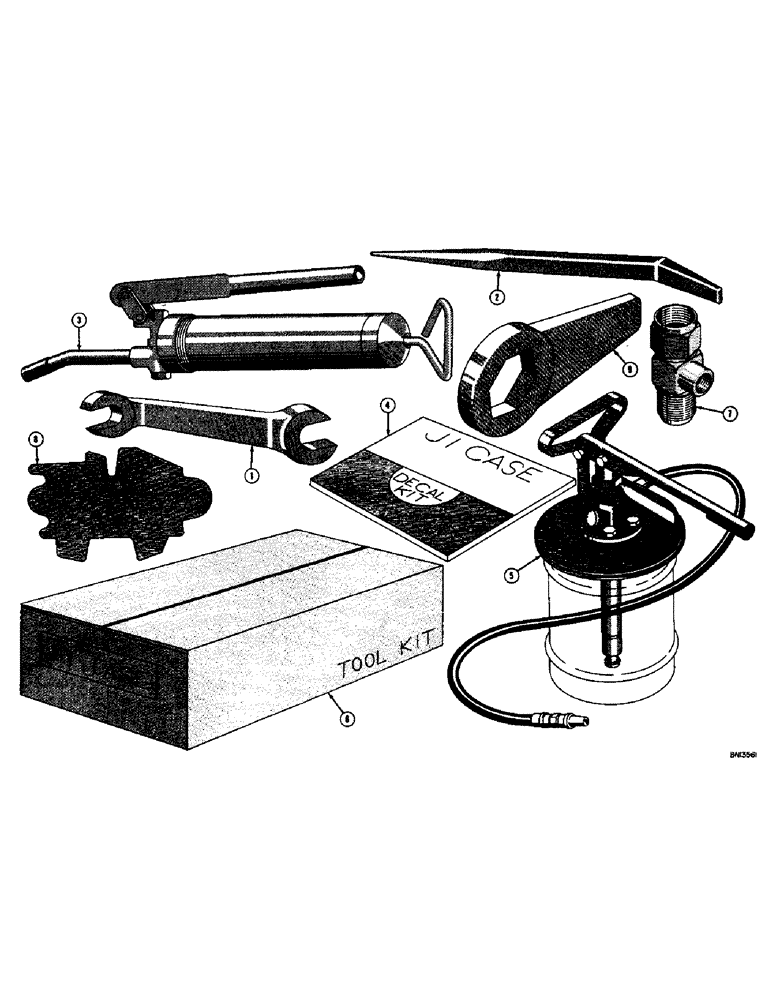

Схема запчастей Case 420B - (070) - TOOLS, GREASE GUN, AND DECALS (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

D26335

OPEN END WRENCH

WRENCH - end, track adjusting

1шт.

2

13757

CLAMP

BAR - pinch

1шт.

3

D21098

TOOL

GUN - grease hand type (15 ounce)

1шт.

4

D10895

KIT - decal, 420B crawler

1шт.

5

NLS

NO LONGER SERVICED

GUN - grease, bucket type

1шт.

6

73200

KIT - tool, crawler service

1шт.

7

D26337

3 WAY CONNECTION

TEE - pressure test (Has 5/8" JIC male fitting on one end, 5/8" JIC female swivel fitting on opposite end, and 1/4" NPT female port on the side for hydraulic pressure gauge installation)

1шт.

8

R15812

TOOL

GAUGE - wear, track components

1шт.

9

NLS

NO LONGER SERVICED

WRENCH - slugging, drive sprocket nut

1шт.

Выбрано товаров: 9
