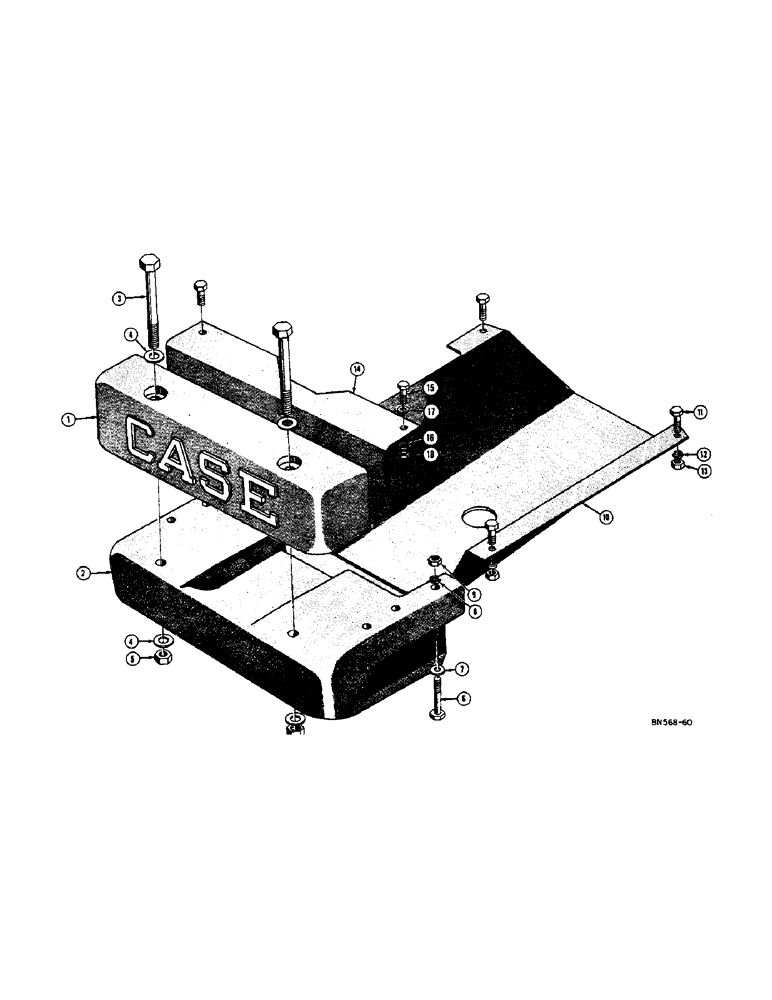

Запчасти Case 420B (068[1]) - FRONT COUNTERWEIGHT, BUMPER, AND SPECIAL CRANKCASE GUARD (05) - UPPERSTRUCTURE CHASSIS

1

37490

BLOCK

COUNTERWEIGHT - upper

1шт.

2

36616

SHIM

COUNTERWEIGHT - lower

1шт.

3

14-10124

HHCS - 5/8 - 18NF x 7-3/4

2шт.

4

95-10

WASHER,5/8"

- plain (5/8)

4шт.

5

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8 - 18NF)

2шт.

6

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

HHCS - 1/2 - 20NF x 3-1/2

6шт.

7

92-8

LOCK WASHER,1/2"

6шт.

8

95-8

WASHER,1/2"

- plain 1/2"

6шт.

9

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

6шт.

10

NLS

NO LONGER SERVICED

GUARD - crankcase

1шт.

11

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20NF x 1-1/4

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

4шт.

14

D23283

BUMPER - front

1шт.

15

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20NF x 1-1/4

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

195-33

WASHER,1/2"

- plain (If used)

2шт.

18

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

2шт.
