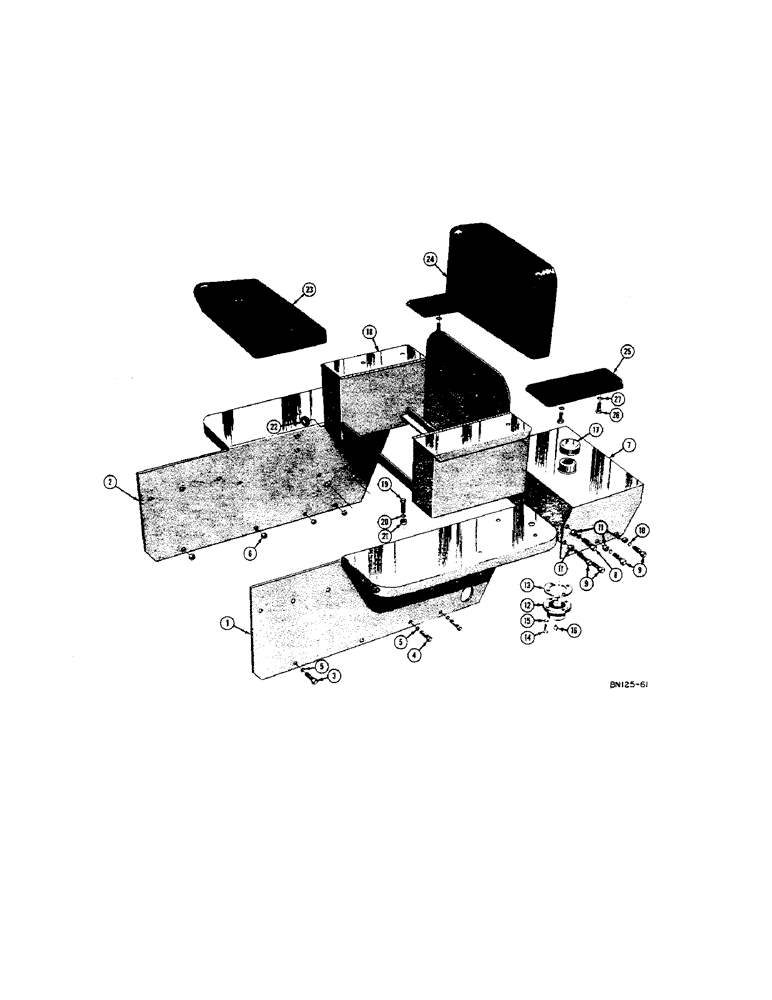

Запчасти Case 420B (058) - FENDERS, FUEL TANK, SEAT, AND CUSHIONS (BACKHOE MODELS) (05) - UPPERSTRUCTURE CHASSIS

1

38488

HYD CONNECTOR

FENDER - L.H.

1шт.

38746

DECAL

FENDER - L.H., Terraload'r models

1шт.

D21125

FENDER - L.H., 36" gauge tractor

1шт.

2

38489

HYD CONNECTOR

FENDER - R.H.

1шт.

38747

FENDER - R.H., Terraload'r models

1шт.

D21124

FENDER - R.H., 36" gauge tractor

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

4

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

5

92-8

LOCK WASHER,1/2"

6шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13NC)

6шт.

7

D25383

TANK - fuel

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

10

92-6

LOCK WASHER,3/8"

10шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16NC)

10шт.

12

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - fuel tank drain

1шт.

13

35621

GASKET

- fuel tank drain cover

1шт.

14

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8 - 24NF x 7/8

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8 NPT ext. sq. hd.

1шт.

17

CASE10731

FILLER CAP

CAP - filler, fuel tank

1шт.

18

D21051

SEAT AND BACK

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

HHCS - 3/8 - 24NF x 1

3шт.

20

92-6

LOCK WASHER,3/8"

3шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16NC)

3шт.

22

49561

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber (1/2")

1шт.

23

D27691

X

CUSHION - seat

1шт.

24

D27690

CUSHION - seat back

1шт.

25

D27693

ARMREST

CUSHION - arm rest

2шт.

26

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
