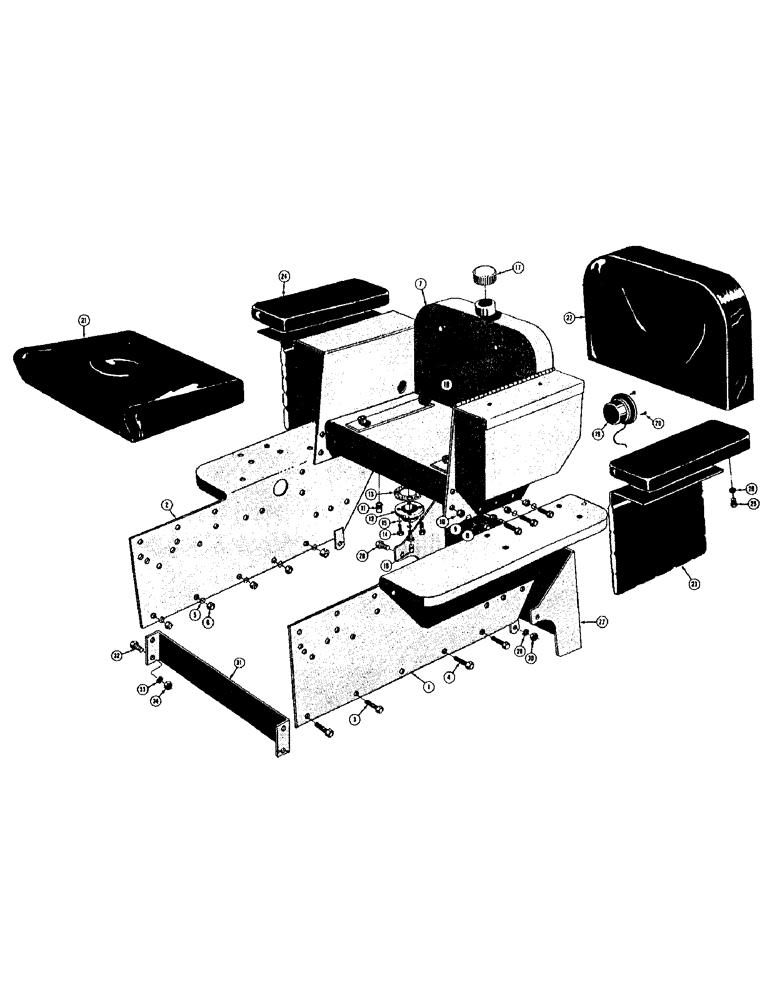

Запчасти Case 420B (056) - FENDERS, FUEL TANK, SEAT, AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
38488
HYD CONNECTOR
FENDER - L.H., standard
1шт.
38746
DECAL
FENDER - L.H., loader models
1шт.
D21125
FENDER - L.H., 36" gauge and forestry models
1шт.
2
38489
HYD CONNECTOR
FENDER - R.H., standard
1шт.
38747
FENDER - R.H., loader models
1шт.
D21124
FENDER - R.H., 36" gauge and forestry models
1шт.
3
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
2шт.
4
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
4шт.
5
92-8
LOCK WASHER,1/2"
6шт.
6
25-108
NUT,1/2"-13, G5
- hex. (1/2 - 13NC)
6шт.
7
38490
EXTENSION
SEAT AND TANK ASS'Y
1шт.
8
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
10шт.
9
92-6
LOCK WASHER,3/8"
10шт.
10
25-106
NUT,3/8"-16, G5
- hex. (3/8 - 16NC)
10шт.
11
221-3
DRAIN PLUG,Sq Hd, 3/8"-18 NPTF
PLUG - pipe, 3/8 NPT ext. sq. hd.
2шт.
12
34574
BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L
COVER - fuel tank drain
1шт.
13
35621
GASKET
- fuel tank drain cover
1шт.
14
14-614
SCREW,Hex, 3/8" - 24 x 7/8", Gr 5
HHCS - 3/8 - 24NF x 7/8
4шт.
15
92-6
LOCK WASHER,3/8"
4шт.
16
221-1
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - pipe, 1/8 NPT ext. sq. hd.
1шт.
17
CASE10731
FILLER CAP
CAP - filler, fuel tank
1шт.
18
49564
GROMMET,1 1/2" ID x 1 3/4" Groove Dia
- rubber
2шт.
19
30903
LIGHT - tail, 12 volt
2шт.
21
D27691
X
CUSHION - seat
1шт.
22
D27690
CUSHION - back
1шт.
23
D27692
PAD - side
2шт.
24
D27693
ARMREST
CUSHION - arm rest
2шт.
25
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
4шт.
26
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
27
D21408
GUARD - brush, rear (Forestry models only)
1шт.
28
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS - 1/2 - 20NF x 1
2шт.
29
92-8
LOCK WASHER,1/2"
2шт.
30
25-118
NUT,1/2"-20, G5
- hex. (1/2 - 20NF)
2шт.
31
D21398
BRACE - fender (Forestry models only)
1шт.
32
14-616
BOLT,Hex, 3/8" - 24 x 1", Gr 5
HHCS - 3/8 - 24NF x 1
4шт.
33
92-6
LOCK WASHER,3/8"
4шт.
34
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8 - 24NF)
4шт.
Выбрано товаров: 38
