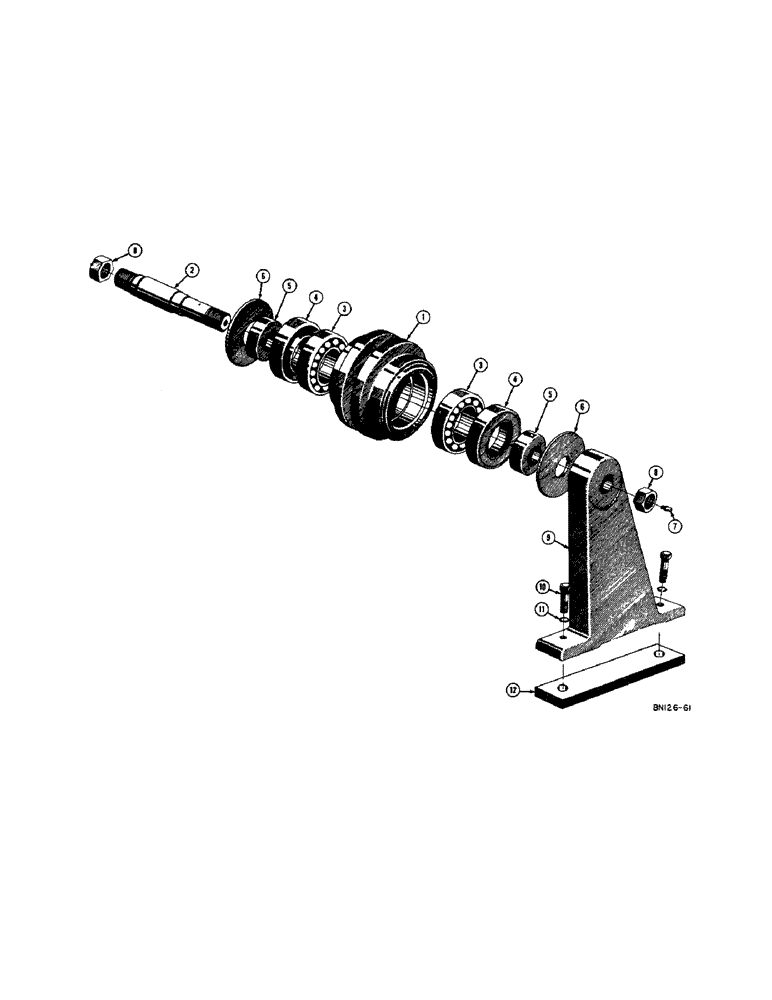

Запчасти Case 420B (060) - TRACK CARRIER ROLLER (04) - UNDERCARRIAGE

NLS

NO LONGER SERVICED

KIT - track carrier roller

2шт.

1

31163

ROLLER

HUB - track carrier roller

1шт.

D10793

X

KIT - track carrier roller (Less hub)

1шт.

2

30707

SHAFT

- track carrier roller

1шт.

3

VT3893

BEARING - ball

2шт.

4

40633

PLATE

SEAL - oil

2шт.

5

32051

SPACER

- track carrier roller

2шт.

6

30704

BEARING COVER

- track carrier roller

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

8

131-370

LOCK NUT

NUT - lock (1 - 14NF)

2шт.

9

30718

BRACKET

- track carrier roller

2шт.

10

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

4шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12

D27036

SPACER - track carrier roller bracket (Used from serial #3013463)

2шт.
