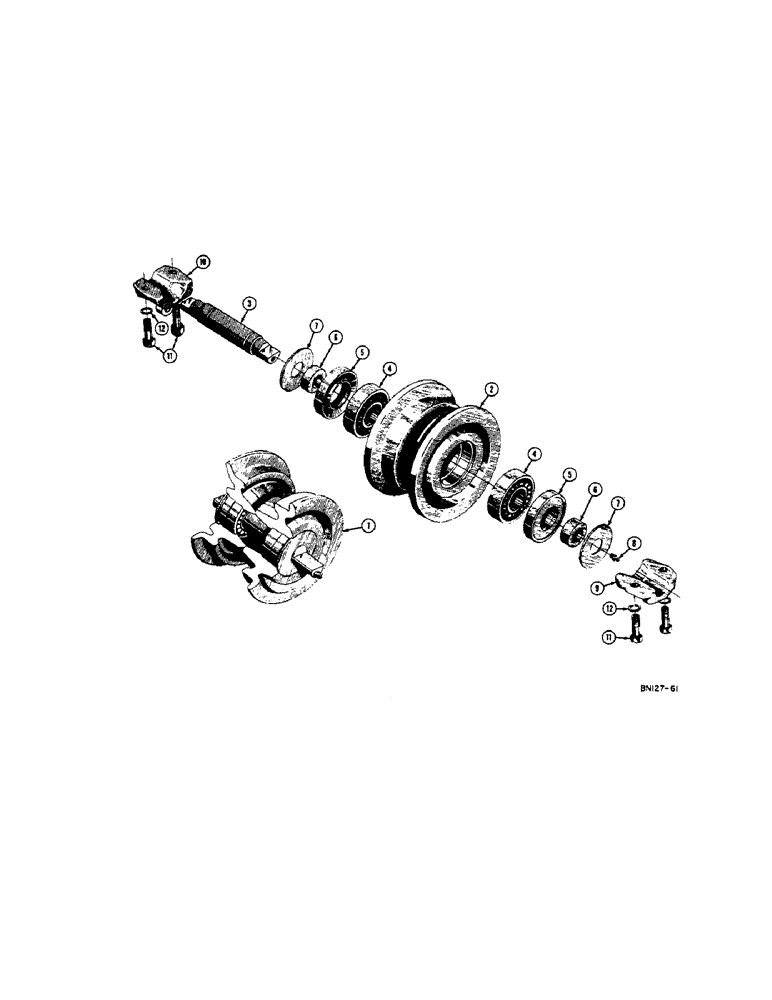

Запчасти Case 420B (060[1]) - TRACK ROLLER (04) - UNDERCARRIAGE

1

32032

X

ROLLER - track, complete

8шт.

When replacing rear track roller ass'y on backhoe models, order 37431 (See figure 155A for breakdown).

1шт.

2

32076

BEARING, ROLLER

HUB - track roller

1шт.

5923

KIT - track roller

1шт.

3

32056

SHAFT

- track roller

1шт.

4

VT3893

BEARING - ball

2шт.

5

D29138

OIL SEAL

SEAL - oil, track roller

2шт.

6

32051

SPACER

- track roller

2шт.

7

30704

BEARING COVER

- track roller

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

2шт.

9

32055

BOX

- track roller, outer

8шт.

10

51200225

CAP

BOX - track roller, inner

8шт.

11

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20NF x 1-1/2

32шт.

12

92-8

LOCK WASHER,1/2"

32шт.
