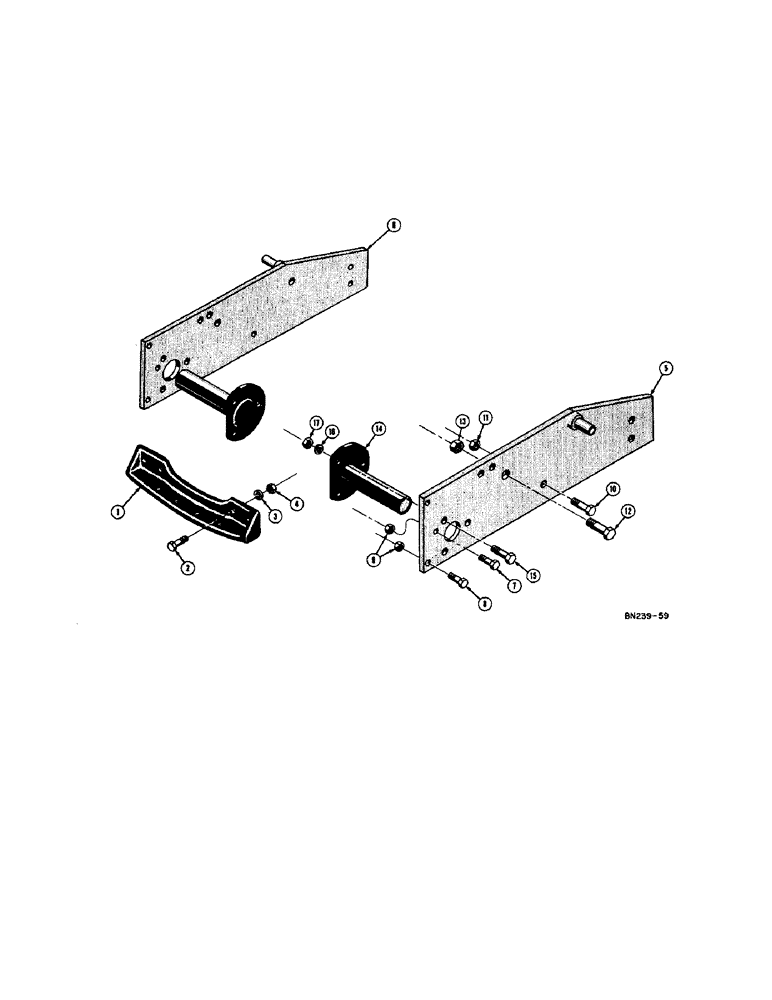

Запчасти Case 420B (052) - SIDE PLATE, PIVOT BAR, AND DRAWBAR GUIDE (04) - UNDERCARRIAGE

1

13103

GUIDE - drawbar, 48" gauge and wider tractors

1шт.

32419

GUIDE - drawbar, 42" gauge tractor

1шт.

2

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

4шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18NF)

4шт.

1

32662

RICE TOOTH

GUIDE - drawbar, 36" gauge tractor

1шт.

2

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS - 3/4 - 16NF x 2

2шт.

3

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

4

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16NF)

2шт.

5

D25523

PLATE - side, R.H., 48" gauge and wider tractors

1шт.

6

D25524

PLATE - side, L.H., 48" gauge and wider tractors

1шт.

7

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

HHCS - 5/8 - 18NF x 2-1/2

2шт.

8

33046

BOLT - body (5/8 - 18NF x 2-1/2)

4шт.

9

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8 - 18NF)

6шт.

10

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16NF x 2-3/4

2шт.

11

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4 - 16NF)

2шт.

12

33047

BOLT,Hex, 1" - 14 x 3 3/32"

- body (1 - 14NF x 3-3/32)

4шт.

13

232-46116

LOCK NUT,1"-14, GC

NUT - lock (1 - 14NF)

4шт.

14

D27542

BAR - pivot

2шт.

15

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - 3/4 - 16NF x 2-1/2

6шт.

16

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

17

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16NF)

6шт.

D25328

PLATE - side, 36" gauge tractor

2шт.

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

Side plate, 36" gauge tractor Hex, 5/8"-18 x 2", G5

10шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18NF)

10шт.

NLS

NO LONGER SERVICED

SPACER - rear, 36" gauge tractor

2шт.

32700

SPACER - front, 36" gauge tractor

2шт.

D25107

PLATE - side, rigid track (Backhoe models only)

2шт.
