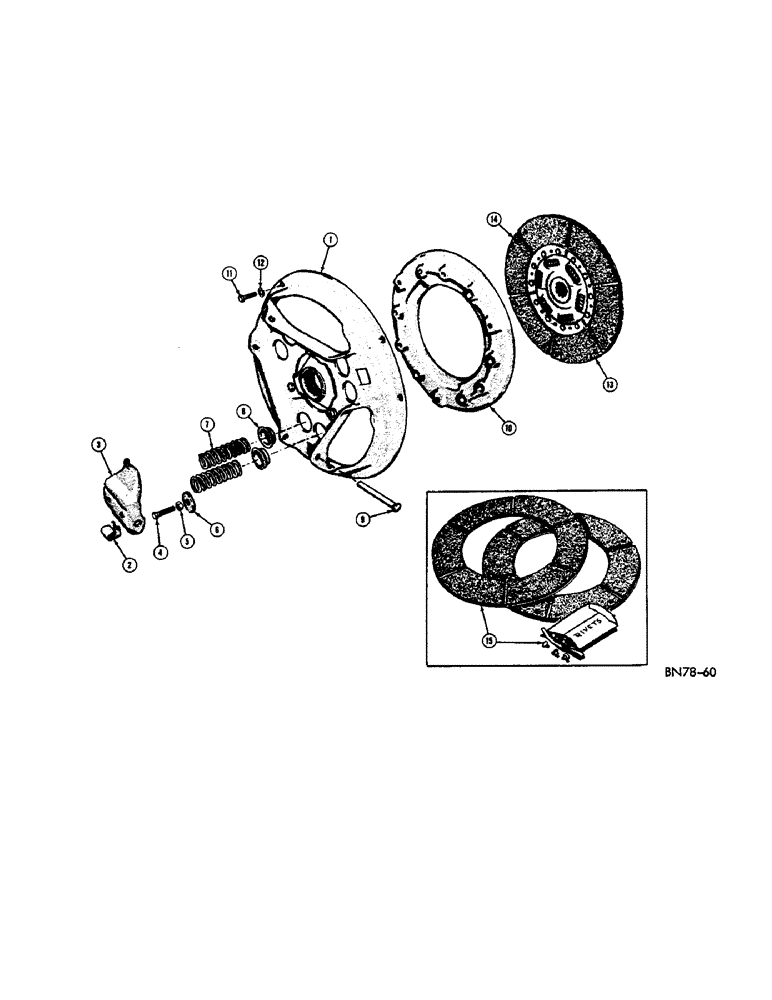

Запчасти Case 420B (042) - CLUTCH (04) - UNDERCARRIAGE

G45777

PLATE - pressure, complete

1шт.

1

G47016

BRACKET AND HUB - pressure plate

1шт.

2

G46061

CLIP

- clutch return

3шт.

3

G47010

LEVER

- clutch

3шт.

4

G49049

X

SCREW - adjusting

3шт.

5

G49005

NUT - jam, adjusting screw

3шт.

6

G49048

WASHER

- adjusting screw

3шт.

7

G47013

SPRING

- lever (White)

6шт.

8

G47012

CUP - spring

6шт.

9

G47011

PIN

- pivot

3шт.

10

G4506

PLATE

- pressure

1шт.

11

G11207

BOLT

- pressure plate to flywheel (5/16 x 1)

6шт.

12

92-5

LOCK WASHER,5/16"

6шт.

13

G11539

PLATE ASSY.

PLATE - driving, with facings

1шт.

14

G49007

RIVET - clutch facing

18шт.

15

G11825

KIT - clutch facing for G11539 plate (Includes facings and 20 - G49007 rivets)

1шт.
