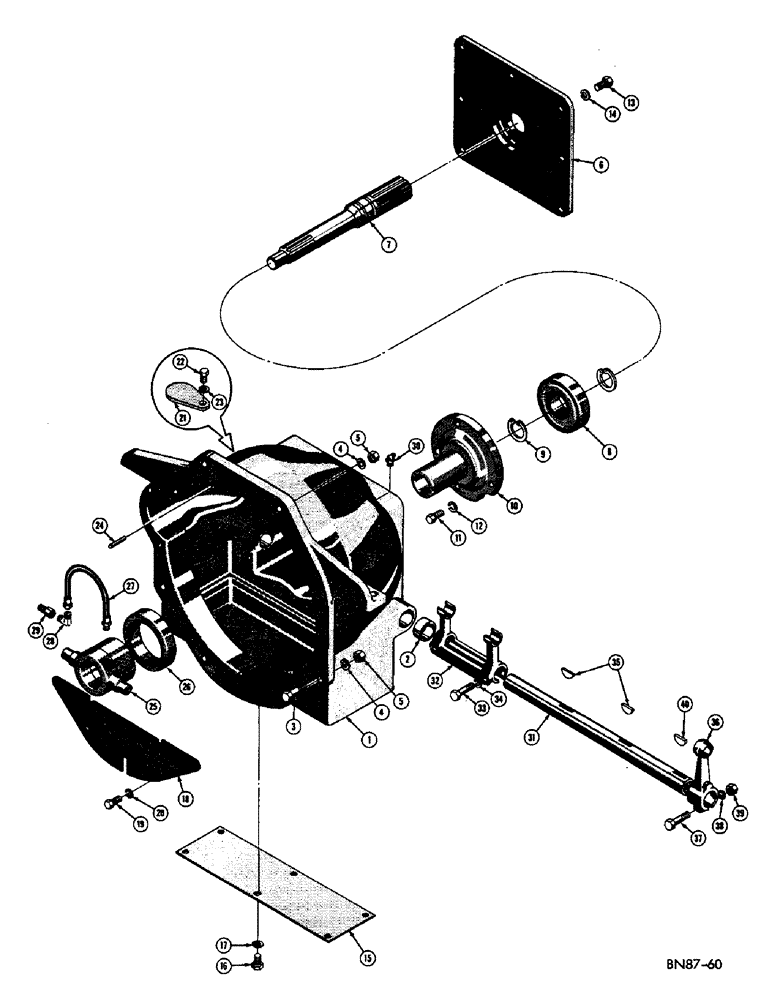

Запчасти Case 420B (040) - CLUTCH HOUSING (04) - UNDERCARRIAGE

G11905

HOUSING - clutch, complete

1шт.

1

G1345

HOUSING - clutch

1шт.

2

G49666

BUSHING

BEARING - clutch cross shaft

2шт.

3

VT3507

BOLT - body, clutch, Serial Range: housing-block

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18NF)

4шт.

G11907

PLATE - back, clutch housing, complete

1шт.

6

G1364

PLATE - back, clutch housing

1шт.

7

G11354

SHAFT - drive, clutch

1шт.

8

F7860

BEARING - clutch drive shaft

1шт.

9

O6384AB

SNAP RING - bearing

2шт.

10

G1365

SPINDLE

- clutch throwout carrier

1шт.

11

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Back plate to clutch housing Hex, 3/8"-16 x 1", G5, Full Thd

7шт.

14

92-6

LOCK WASHER,3/8"

7шт.

15

G11368

COVER - clutch housing

1шт.

16

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

17

92-5

LOCK WASHER,5/16"

4шт.

18

G11356

COVER - flywheel housing

1шт.

19

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8 - 16NC x 1/2

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

VT2176

X

COVER - timing hole

1шт.

22

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, , Timing hole 1/8" x 1 1/4", Slotted

1шт.

G11906

CARRIER

- throwout bearing, complete

1шт.

25

G1363

CARRIER - throwout bearing

1шт.

26

G13624

BEARING

- throwout

1шт.

27

51040-10

HOSE - throwout bearing tube

1шт.

28

50464

X

ELBOW - 90 degrees male (1/8 NPT x 1/4 JIC)

1шт.

29

217-1

ADAPTER

- entension (1/8 NPT x 1/8 NPT)

1шт.

30

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 45 degrees grease, 1/8 NPT (Lincoln #5200)

1шт.

31

G11353

SHAFT - cross

1шт.

32

B4717A

X

YOKE - clutch

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

126-24

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

36

11037

BELT, TRANSMISSION

LEVER - outer, cross shaft

1шт.

37

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

38

92-6

LOCK WASHER,3/8"

1шт.

39

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16NC)

1шт.

40

126-26

WOODRUFF KEY,#16, 3/16" x 1 1/8"

KEY - #16 Woodruff

1шт.
