Артикул
Название
Примечание
Количество
G45779

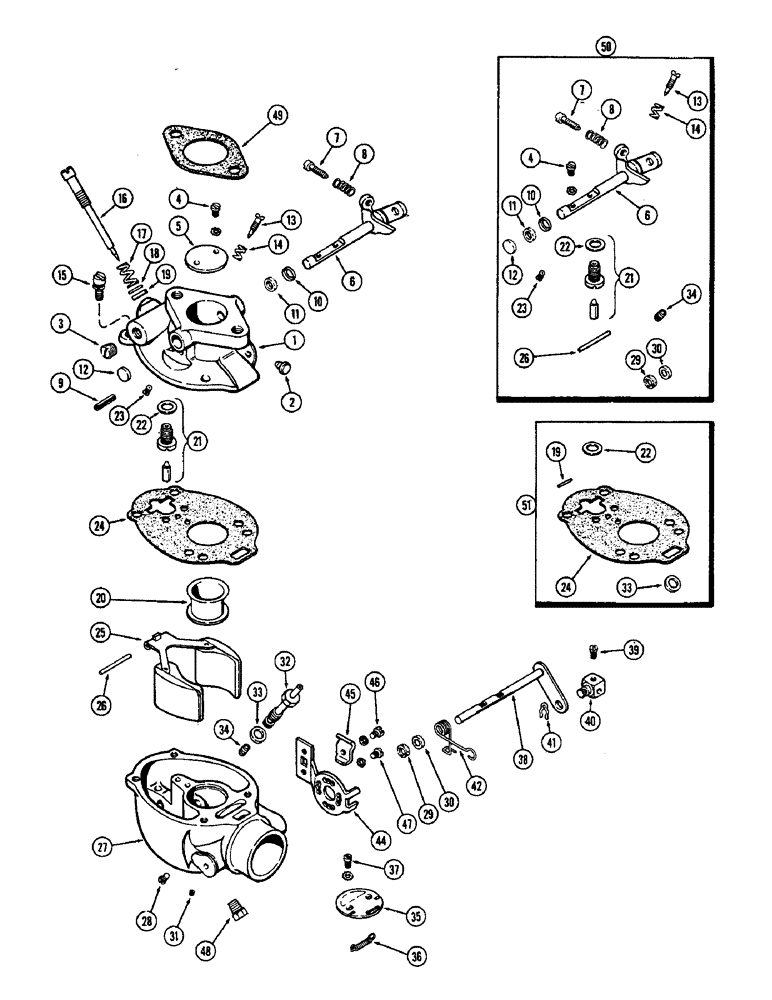

CARBURETOR - (Marvel-Schebler #TSX-804) (Can use A38241 from figure 23B)
1шт.
1
B59378
BODY ASSY. - throttle
1шт.
2
B51874
PLUG - idle drilling
1шт.
3
221-1041
PLUG
- fuel inlet (Replaces B53961)
1шт.
4
B51685
SCREW
- throttle plate
2шт.
5
B51669
PLATE - throttle
1шт.
6
B51655
THROTTLE
SHAFT ASSY. - throttle
1шт.
7
B51680
SCREW - stop
1шт.
8
B51742
SPRING
- stop screw
1шт.
9
B51862
PIN - throttle stop
1шт.
10
B51853
RETAINER
- shaft packing
1шт.
11
B51805
PACKING
- throttle shaft
1шт.
12
B51852
CUP
PLUG - shaft end
1шт.
13
B51788
NEEDLE
- idle adjusting
1шт.
14
B51744
SPRING
- idle needle
1шт.
15
B51683
SCREW,#12 - 24 x 5/8"
- throttle, Serial Range: body-bowl
4шт.
16
B51797
NEEDLE BEARING CAGE
NEEDLE - high speed
1шт.
17
B51732
VALVE SPRING
SPRING - high speed needle
1шт.
18
B51870
WASHER
- high speed needle
1шт.
19
B51723
GASKET
- high speed needle
1шт.
20
B51815
VENTURI - (25/32" throat)
1шт.
21
B51912
SEAT
VALVE & SEAT ASSY. - float
1шт.
22
B51703
GASKET
- valve seat
1шт.
23
B51828
JET
- idle
1шт.
24
B51708
GASKET
- throttle, Serial Range: body-bowl
1шт.
25
B51772
FLOAT
- fuel body
1шт.
26
B51779
SHAFT
- float
1шт.
27
NSS
NOT SOLD SEPARAT
BOWL ASSY. - fuel (Order G45779)
1шт.
28
B51700
SCREW
- plug, nozzle hole
1шт.
29
B51803
PACKING
- choke shaft
1шт.
30
B51854
RETAINER
- packing
1шт.
31
A41026
PLUG - choke shaft end
1шт.
32
B51826
NOZZLE INJECTION
NOZZLE - main
1шт.
33
B51720
GASKET
- main nozzle
1шт.
34
B51839
JET
- power
1шт.
35
B51763
VALVE
FLY ASSY. - choke
1шт.
36
B51735
SPRING
- choke fly
1шт.
37
B51685
SCREW
- choke fly
2шт.
38
B51751
SHAFT
ASSY. - choke
1шт.
39
B51698
SCREW,0.164" - 32 x 5/16"
- swivel
1шт.
40
B51764
PIVOT
SWIVEL - choke control
1шт.
41
B51877
SPLIT PIN
PIN - cotter
1шт.
42
B51741
SPRING - choke shaft return
1шт.
B53956
BRACKET ASSY. - choke control
1шт.
44
A41027
BRACKET
1шт.
45
B51765
CLIP
- control rod
1шт.
46
B59373
SCREW - clip
1шт.
47
B51586
SCREW - bracket mounting
1шт.
48
B51887
PLUG
- bowl drain
1шт.
49
A29956
GASKET
-, Serial Range: carburetor-manifold
1шт.
50
B51937
KIT
- repair, complete carburetor
1шт.
51
A30241
GASKET KIT
KIT - gasket
1шт.
Выбрано товаров: 52
