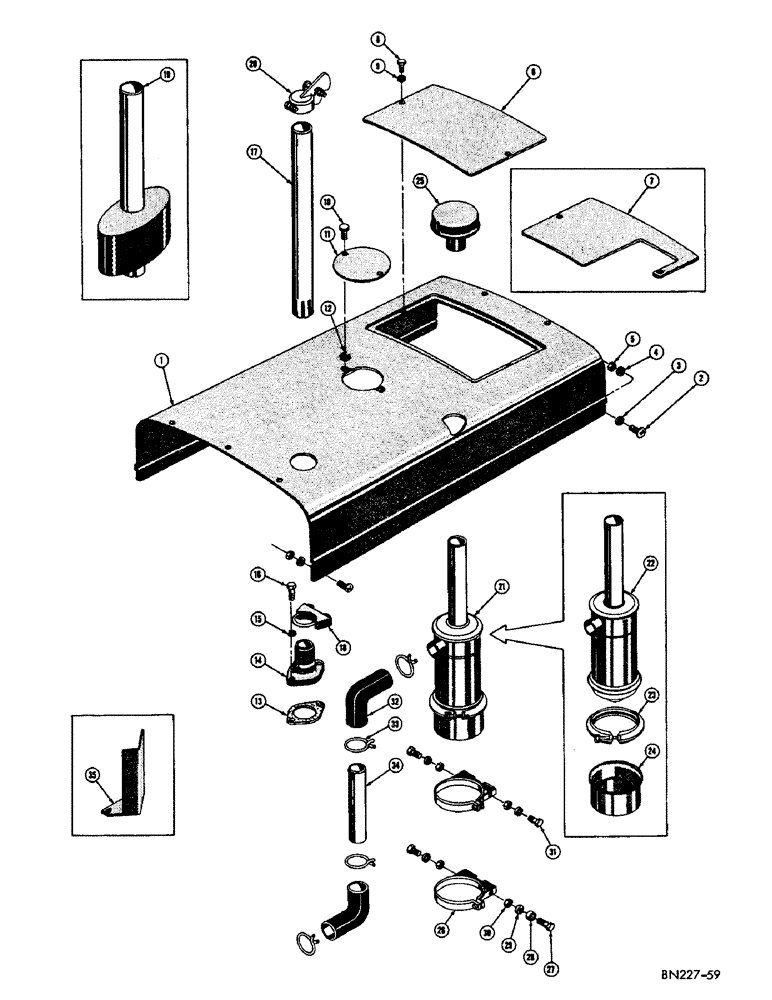

Запчасти Case 420B (034) - HOOD, EXHAUST SYSTEM, AND AIR CLEANER (01) - ENGINE

1

D25334

HOOD - engine

1шт.

2

174-208

PHMS - zinc plated (3/8 - 24NF x 3/4)

9шт.

3

195-525

WASHER,3/8", SAE

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

5

129-123

NUT,3/8"-24, G5

9шт.

6

GI33522

CLIP

COVER - access, instrument panel back

1шт.

7

D20370

COVER - access, instrument panel back (Terraload'r models only)

1шт.

8

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

HHCS - zinc plated (1/4 - 28NF x 1/2)

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

G16716

X

SCREW - knurled head

2шт.

11

D21310

COVER - access, oil filler cap

1шт.

12

G48002

X

NUT - Tinnerman

2шт.

13

G46853

MANIFOLD GASKET

- exhaust outlet

1шт.

14

D25460

OUTLET - exhaust

1шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

17

D23127

PIPE - exhaust

1шт.

18

G13184

CLAMP

- exhaust pipe and muffler

1шт.

19

D21427

MUFFLER - under hood (Optional equipment)

1шт.

20

G45048

CAP

- rain (Optional equipment)

1шт.

21

D24939

CLEANER

- air

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

23

D26370

CLAMP

- retaining, oil cup

1шт.

D26377

X

CUP - oil, air cleaner (Inner) (Not shown)

1шт.

24

D26371

CUP - oil, air cleaner (Outer)

1шт.

25

VT3812

X

CAP - air inlet

1шт.

26

D24938

BAND - mounting, air cleaner

2шт.

27

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

28

D23740

BUSHING

1шт.

29

92-5

LOCK WASHER,5/16"

4шт.

30

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18NC)

4шт.

31

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

3шт.

32

D25431

ELBOW - air cleaner tube, also air cleaner, Serial Range: tube-carburetor

2шт.

33

G10807

CLAMP

- hose

4шт.

34

D25432

TUBE - air cleaner

1шт.

35

D25464

SHIELD - air cleaner (Mounts to lower manifold port)

1шт.
