Запчасти Case 420B (018[1]) - OIL FILTER (01) - ENGINE

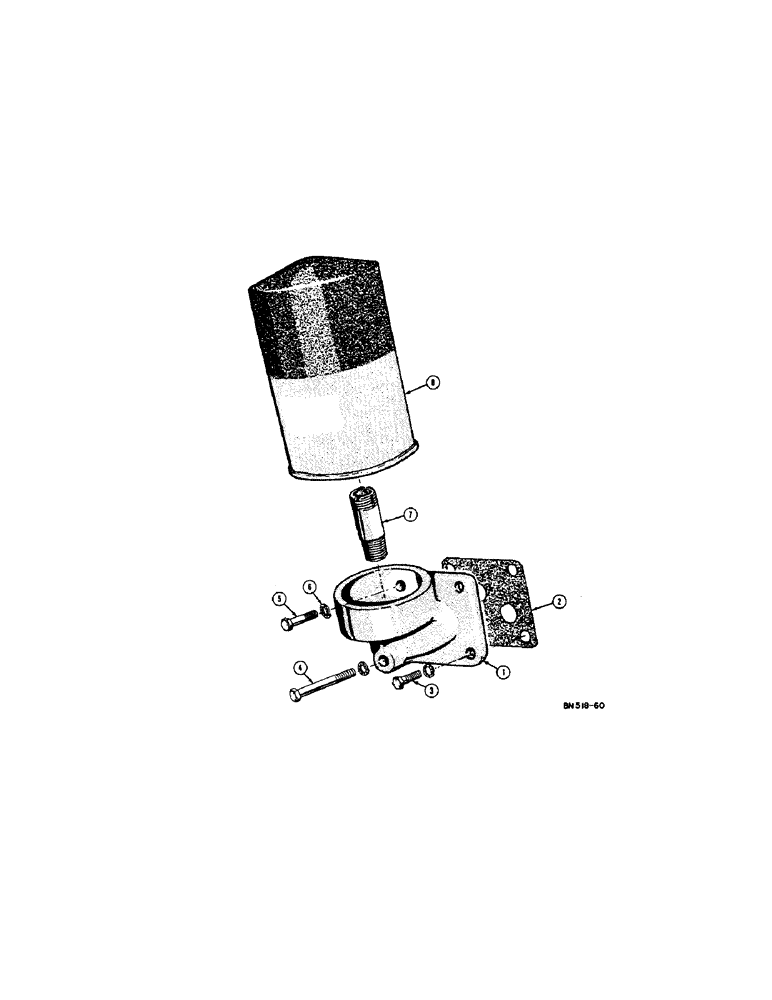

Схема запчастей Case 420B - (018[1]) - OIL FILTER (01) - ENGINE

Артикул

Название

Примечание

Количество

1

G2122

BRACKET - oil, Serial Range: filter-block

1шт.

2

G46854

GASKET

- oil filter bracket to engine block

1шт.

3

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

4

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

6

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

7

G49074

ADAPTER - oil, Serial Range: filter-bracket

1шт.

8

G45210

FILTER, ELEMENT

FILTER - oil engine

1шт.

Выбрано товаров: 8
