Запчасти Case 420B (016) - VALVES, PUSH RODS, AND GUIDES (01) - ENGINE

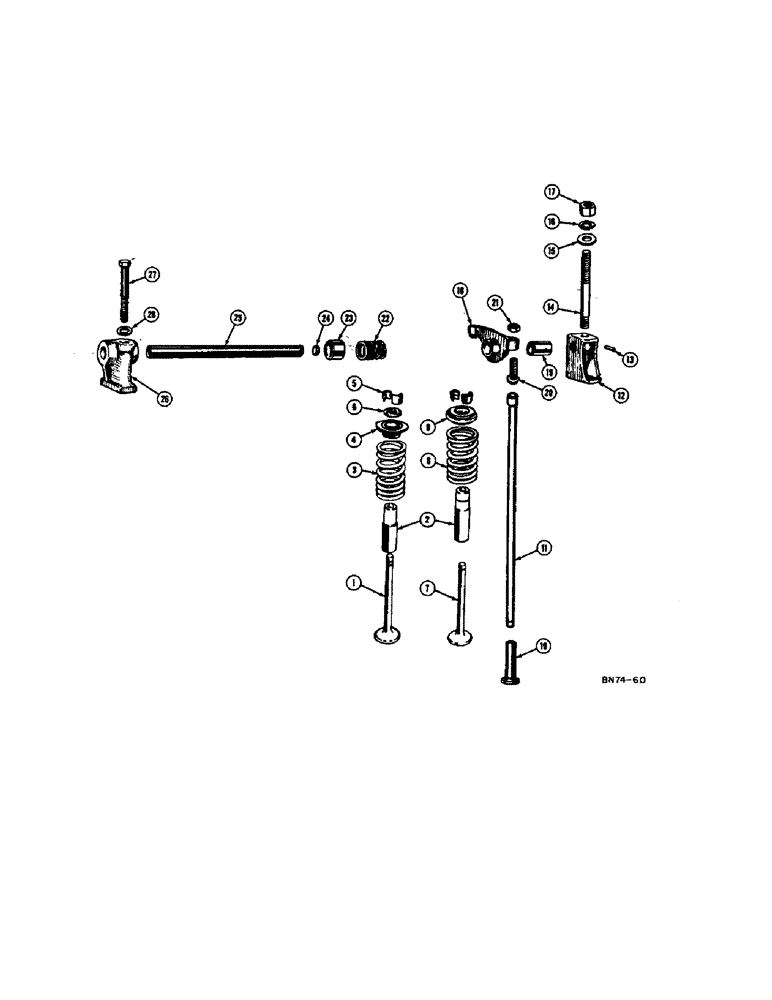

Схема запчастей Case 420B - (016) - VALVES, PUSH RODS, AND GUIDES (01) - ENGINE

Артикул

Название

Примечание

Количество

1

G11914

VALVE

- intake (Set of 4)

1шт.

2

VTA911

X

GUIDES - valve stem (Set of 4)

2шт.

3

VT3372

SPRING

- intake valve

4шт.

G11927

RETAINER

KIT - valve spring retainer (Set of 8-VT3234 locks and 4-G11717 retainers

1шт.

4

G11717

RETAINER

- spring, intake valve stem (Use G11927)

4шт.

5

G11929

LOCK

KIT - valve spring retainer lock (Set of 4-VT3234 locks)

2шт.

6

G46851

SEAL

- rubber, intake valve

4шт.

7

G11915

VALVE, ENG EXHAUST,

VALVE - exhaust (Set of 4)

1шт.

8

G10004

SPRING

- exhaust valve

4шт.

9

G11928

CAP

- roto, exhaust valve (Set of 4)

1шт.

10

VT3236

X

TAPPET - valve

8шт.

11

G11086

ROD

- push

8шт.

12

G46250

BRACKET

- rocker arm shaft

4шт.

13

139-205

PIN - taper (#00 x 3/4) 2/0 x 3/4", Tapered

2шт.

14

G49505

STUD

- rocker arm bracket and valve cover (3/8 x 4-5/8)

2шт.

15

VT3291

X

WASHER - flat, stud (13/32" I.D. x 1" O.D. x 1/8" thick)

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

2шт.

18

G45234

ARM

- rocker, R.H.

4шт.

G45235

ARM

- rocker, L.H.

4шт.

19

O5759AB2

X

BUSHING - rocker arm

1шт.

20

O5760AB1

X

SCREW - adjusting, rocker arm

1шт.

21

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex. jam (5/16 - 24 NF)

8шт.

22

VT3237

X

SPRING - rocker arm shaft

4шт.

23

VT3238

X

SPACER - rocker arm shaft

4шт.

24

O4404AB

X

PLUG - rocker arm shaft

2шт.

25

VT4540

X

SHAFT - rocker arm

2шт.

26

G2107

BRACKET

- center, rocker arm shaft

1шт.

27

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8 - 16 NC x 2-3/4

3шт.

28

92-6

LOCK WASHER,3/8"

3шт.

Выбрано товаров: 30
