Запчасти Case 420B (016[1]) - CAMSHAFT AND TIMING GEAR (01) - ENGINE

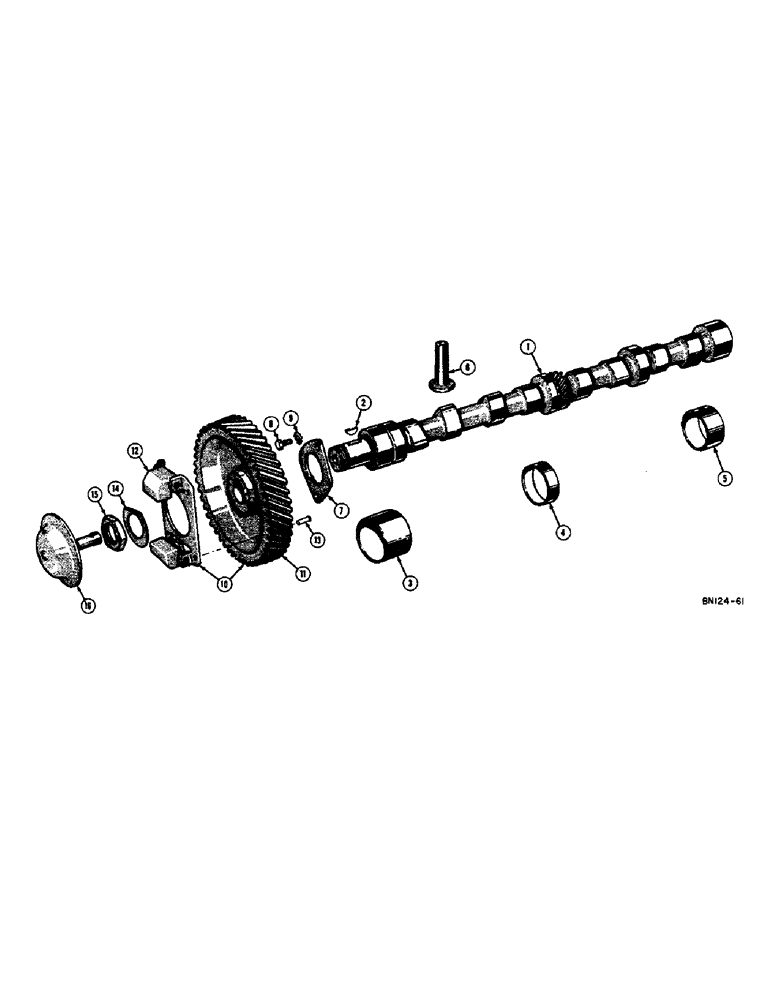

Схема запчастей Case 420B - (016[1]) - CAMSHAFT AND TIMING GEAR (01) - ENGINE

Артикул

Название

Примечание

Количество

1

G2055

CAMSHAFT

1шт.

2

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

VTA2621

X

KIT - bushing, camshaft

1шт.

3

VT3212

X

BUSHING - camshaft, front (Use VTA2621)

1шт.

4

VT3213

BUSHING - camshaft, center (Use VTA2621)

1шт.

5

VT3214

X

BUSHING - camshaft, rear (Use VTA2621)

1шт.

6

VT3236

X

TAPPET - valve

8шт.

7

VT3365

X

PLATE - thrust, camshaft

1шт.

8

VT4500

X

SCREW - thrust plate

2шт.

9

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

10

VTA857

X

GEAR - camshaft timing, complete

1шт.

11

VT540

GEAR - camshaft timing (48T)

1шт.

12

VTA856

WEIGHT - governor

1шт.

13

45-38

RIVET,But Hd, 3/16" x 1/2"

- round hd. (3/16 x 1/2)

4шт.

14

VT4517

X

LOCK - camshaft nut

1шт.

15

VT4536

X

NUT - camshaft

1шт.

16

VTA855

X

SHAFT - governor

1шт.

Выбрано товаров: 17
