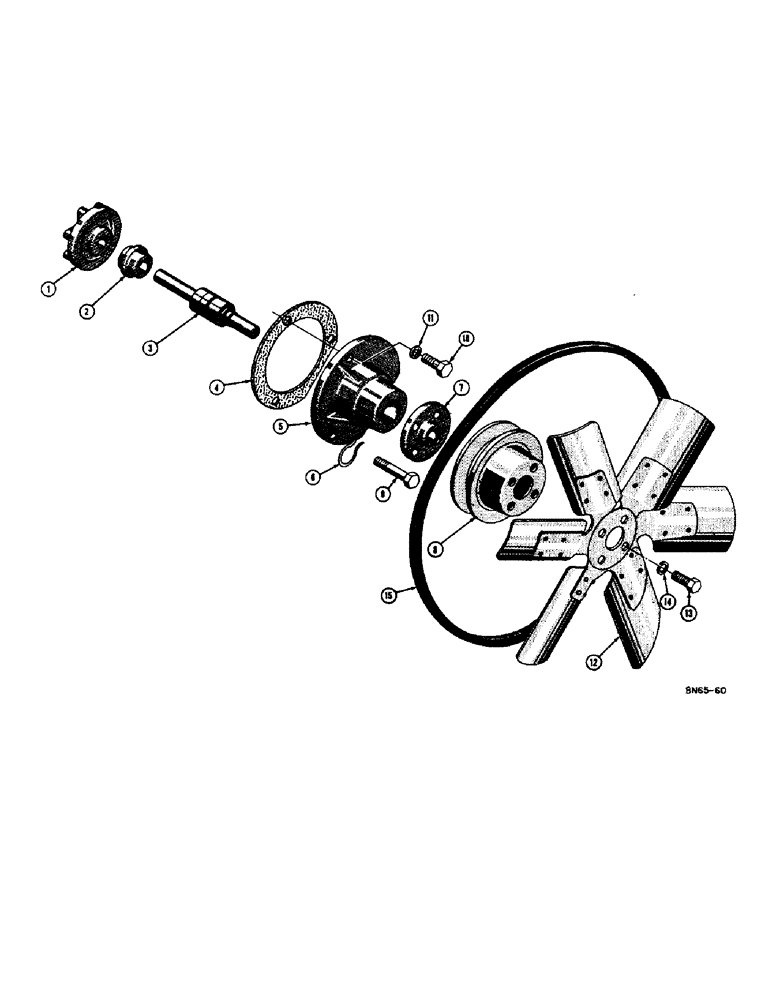

Запчасти Case 420B (014) - WATER PUMP, FAN, FAN BELT, AND PULLEY (01) - ENGINE

G11956

WATER PUMP

PUMP - water, complete

1шт.

A48364

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

1

VT342

SPARE PART IMPELLER - water pump

1шт.

2

O9799AB

SPARE PART SEAL - driveshaft

1шт.

3

VTA904

X

SHAFT - pump drive (Include bearings and slinger)

1шт.

4

G46875

GASKET

GASKET - pump body to timing gear cover

1шт.

5

VTA905

X

BODY - water pump

1шт.

6

VT4594

X

RING - retaining

1шт.

7

VT4533

SPARE PART HUB - fan

1шт.

8

G11339

PULLEY

PULLEY - water pump

1шт.

9

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8 - 16 NC x 2-3/4

1шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

11

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER - Shakeproof lock, internal tooth (3/8)

3шт.

12

11290

FAN

FAN - pusher (Loader models only)

1шт.

D25976

FAN - suction

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

14

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

15

G46238

BELT,0.55" W x 17.78" L

Fan and Generator Drive

1шт.
