Запчасти Case 420B (162) - BACKHOE CONTROL LEVERS AND LINKAGE (18) - ATTACHMENT ACCESSORIES

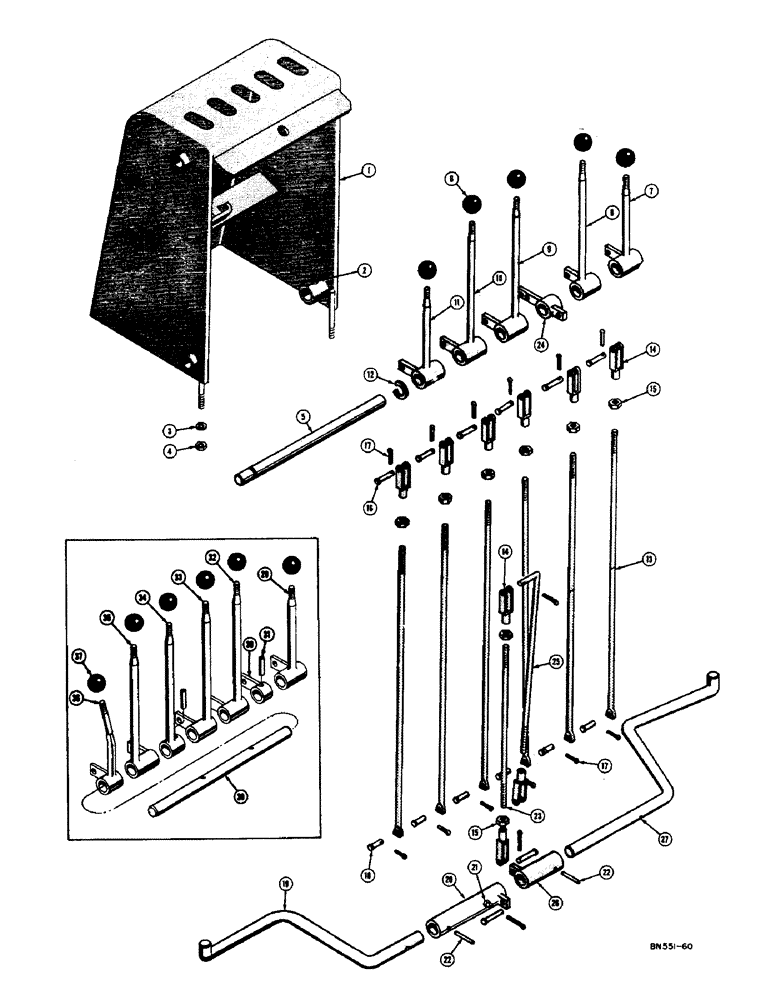

Схема запчастей Case 420B - (162) - BACKHOE CONTROL LEVERS AND LINKAGE (18) - ATTACHMENT ACCESSORIES

Артикул

Название

Примечание

Количество

1

D24958

SHIELD - valve

1шт.

2

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - straight grease, 1/4 - 28 NF (Lincoln #5042)

2шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

4шт.

5

D21626

SHAFT - control lever

1шт.

6

70213

KNOB

- control lever

5шт.

7

D21755

LEVER - control, L.H. stabilizer

1шт.

8

D21756

LEVER - control, boom

1шт.

9

D21757

LEVER - control, dipper arm

1шт.

10

D21758

LEVER - control, bucket

1шт.

11

D21760

LEVER - control, R.H. stabilizer

1шт.

12

09640AB

"E" RING - retaining, control lever shaft

1шт.

13

D21763

ROD - control, Serial Range: levers-valve

6шт.

On machines with crossed control rods for bucket and dipper control, replacement rods must be formed from straight rods in the field

1шт.

14

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

END - yoke, adjustable

9шт.

15

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam (3/8 - 24 NF)

8шт.

16

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

8шт.

17

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

15шт.

18

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

6шт.

19

D21725

PEDAL - swing control, R.H. (Left swing operating)

1шт.

20

D21719

RETAINER - swing control pedal, R.H.

1шт.

21

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - 45 degrees grease, 1/4 - 28 NF (Lincoln #5210)

1шт.

22

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

2шт.

23

D21764

ROD - control, swing (Front)

1шт.

24

D21754

PIVOT - swing control

1шт.

25

D21762

ROD

- control, swing (Rear)

1шт.

26

D21721

RETAINER - foot pedal, L.H.

1шт.

27

D21726

PEDAL - swing control, L.H. (Right swing operating)

1шт.

28

D27102

SHAFT - control lever, hand swing parts

1шт.

29

D21755

LEVER - L.H. stabilizer, hand swing control parts

1шт.

30

D27107

ARM - lever, boom control, hand swing parts

1шт.

31

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, , Hand swing control parts 1/4" x 1 3/8", Slotted

2шт.

32

D27453

LEVER - control, swing, hand parts

1шт.

33

D21757

LEVER - control, bucket, hand parts, swing

1шт.

34

D27099

LEVER - control, boom, hand parts swing

1шт.

35

D27100

LEVER - control, dipper, hand swing parts

1шт.

36

D27101

LEVER - control, R.H. stabilizer, hand swing parts

1шт.

37

70213

KNOB

- control lever, hand swing parts

6шт.

Выбрано товаров: 38
