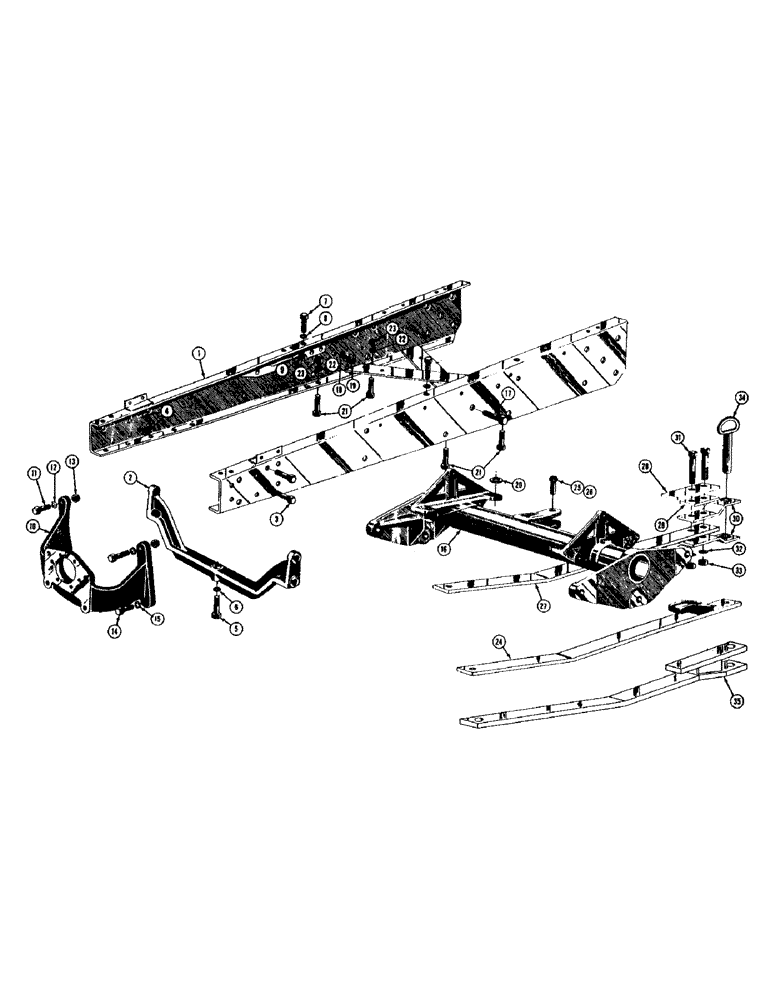

Запчасти Case 420B (006) - ENGINE FRAME, TORQUE TUBE, DRAWBAR, AND ENGINE SUPPORTS (01) - ENGINE

1

D21985

FRAME - engine, standard 48" gauge tractor

1шт.

D25327

FRAME - engine, 36" gauge tractor

1шт.

2

35838

SPINDLE

MOUNT - engine, front

1шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8 - 11NC x 2-3/4

1шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

14-844

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

HHCS - 1/2 - 20NF x 2-3/4

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

2шт.

10

G1212

MOUNT - engine, front

1шт.

11

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

HHCS - 5/8 - 18NF x 2-1/2

2шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18NF)

2шт.

14

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

D95063

TUBE

TUBE - torque, standard 48" gauge tractor

1шт.

32663

X

TUBE - torque, 36" gauge tractor

1шт.

30814

SEAL

TUBE - torque, 42" gauge trator

1шт.

30817

X

TUBE - torque, 60" gauge tractor

1шт.

D20364

TUBE - torque, 68" gauge tractor

1шт.

30819

TUBE - torque, 72" gauge tractor

1шт.

17

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

2шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

19

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18NF)

2шт.

20

33496

BRAKE LINING

SHIM - mounting, engine frame

1шт.

21

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20NF x 1-1/2

4шт.

22

92-8

LOCK WASHER,1/2"

4шт.

23

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

4шт.

24

D21843

DRAWBAR - agricultural (Optional equipment)

1шт.

25

13044

NUT

PIN - mounting, drawbar

1шт.

26

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

13049

HOUSING

DRAWBAR - industrial (Use D26895)

1шт.

27

13039

BUSHING

DRAWBAR - industrial

1шт.

28

NLS

NO LONGER SERVICED

STRAP - hookover

1шт.

29

NLS

NO LONGER SERVICED

SPACER - hookover

1шт.

30

13043

BUSHING

HITCH - drawbar

2шт.

31

14-1272

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

HHCS - 3/4 - 16NF x 4-1/2

2шт.

32

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

33

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16NF)

2шт.

34

13073

AXLE PIN

PIN - hitch

1шт.

D21095

DRAWBAR - forestry model, also for use on models with a winch installed (Use D26923)

1шт.

27

13039

BUSHING

DRAWBAR - industrial

1шт.

28

NLS

NO LONGER SERVICED

STRAP - hookover

1шт.

29

NLS

NO LONGER SERVICED

SPACER - hookover

1шт.

30

D21094

HITCH - drawbar

2шт.

31

14-1272

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

HHCS - 3/4 - 16NF x 4-1/2

2шт.

32

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

33

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16NF)

2шт.

34

13073

AXLE PIN

PIN - hitch

1шт.

35

D26895

DRAWBAR - industrial (See 13049)

1шт.

D26923

DRAWBAR - forestry model, also for use on models with a winch installed (Similar to D26895) (See D21095)

1шт.
