Запчасти Case 420B (148[1]) - WINCH PINION AND BEVEL GEARS (18) - ATTACHMENT ACCESSORIES

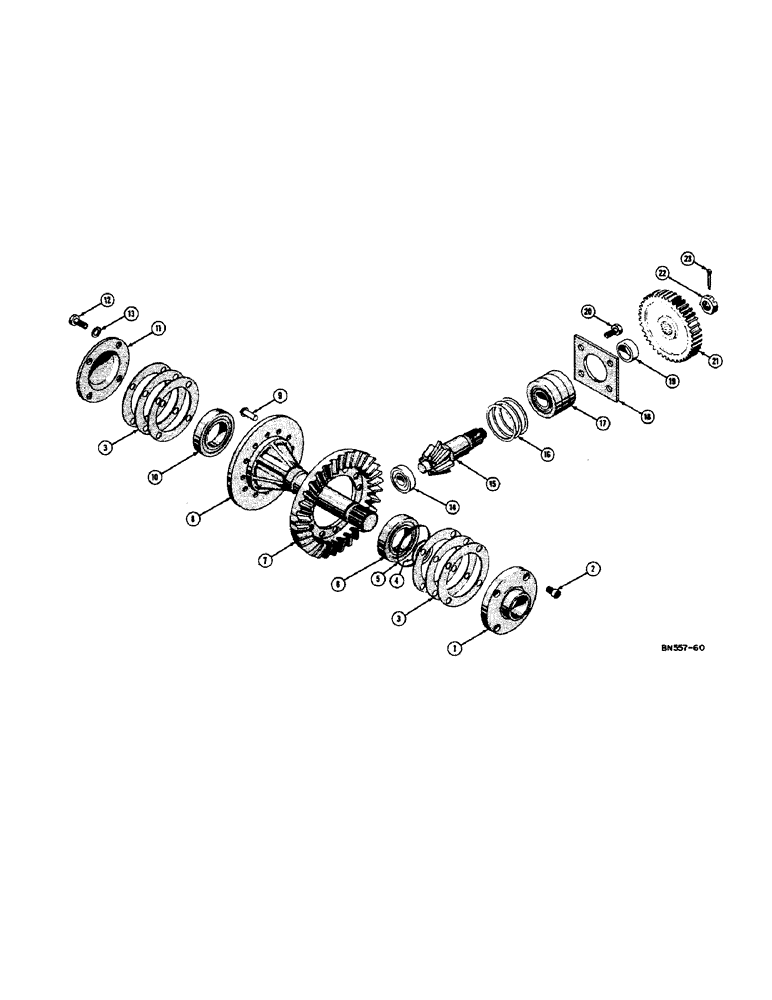

Схема запчастей Case 420B - (148[1]) - WINCH PINION AND BEVEL GEARS (18) - ATTACHMENT ACCESSORIES

Артикул

Название

Примечание

Количество

1

D26550

CARRIER - bearing

1шт.

2

62-816

SHCS - bearing carrier (1/2 - 20 NF x 1)

4шт.

3

D26551

SHIM - bearing carrier

1шт.

4

D27711

SEAL - cork

1шт.

5

D27709

SEAL - rubber band, oil resistant

1шт.

6

38805

BEARING - ball

1шт.

7

D26552

GEAR - spiral bevel

1шт.

8

D26553

HUB - spiral bevel gear

1шт.

9

151-252

RIVET - pan hd. (1/2 x 1-3/8)

12шт.

10

A20291

BALL BEARING,2.3616" ID x 4.3307" OD

BEARING - ball

1шт.

11

D26555

CAP - bearing

1шт.

12

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

D26556

BEARING - roller

1шт.

15

D26557

PINION - spiral drive

1шт.

16

D26558

SHIM - bearing retainer

1шт.

17

D26559

BEARING - spiral drive pinion

1шт.

18

D26560

RETAINER - bearing

1шт.

19

D26561

SPACER - gear

1шт.

20

46947

HHCS - drilled hd. (1/2 - 20 NF x 1)

4шт.

38811

LOCK WIRE - 16 gauge x 18" (Not shown)

1шт.

21

38829

GEAR - driven

1шт.

22

D26563

NUT - Timken

1шт.

23

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

Выбрано товаров: 24
