Артикул
Название
Примечание
Количество

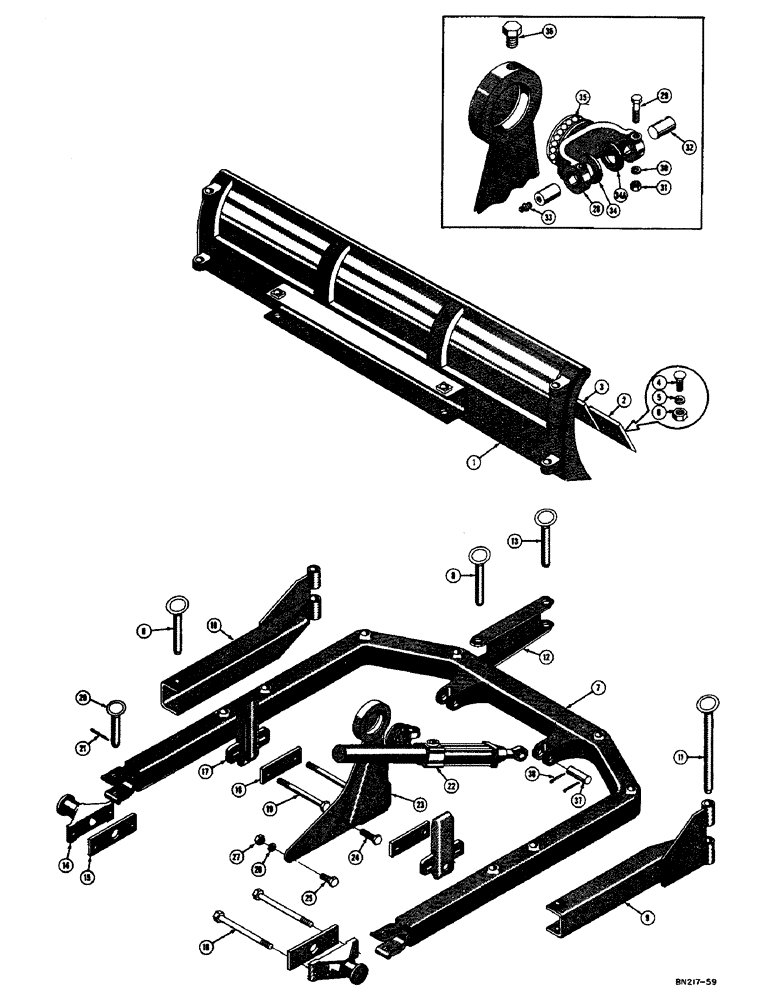

1
16741
MOLDBOARD - mechanical angling dozer
1шт.
3
16792
EDGE, CUTTING
BLADE - cutting, center
1шт.
4
19-828
BOLT,1/2"-13 x 1 3/4", G5
- plow (1/2 - 13 NC x 1-3/4)
22шт.
5
92-8
LOCK WASHER,1/2"
22шт.
6
25-108
NUT,1/2"-13, G5
- hex. (1/2 - 13 NC)
22шт.
7
D27628
"C" FRAME - mechanical angling dozer
1шт.
8
16720
SHROUD
PIN - moldboard to "C" frame, also stabilizer arm to "C" frame
4шт.
11
16569
BACK PLATE
PIN - stabilizer, Serial Range: arm-moldboard
2шт.
12
16798
ARM - support, angling
1шт.
13
16720
SHROUD
PIN - mounting, support arm
1шт.
14
34044
SPACER
BRACKET - pivot, dozer attaching
2шт.
15
34043
SPACER,12.95mm ID x 19.05mm OD x 17.47mm L
- pivot bracket
2шт.
16
16-12192
BOLT (MACHINE)
HHCS - 3/4 - 16 NF x 12
4шт.
18
34047
LEVER
SPACER - rub plate
2шт.
19
16-12192
BOLT (MACHINE)
HHCS - 3/4 - 16 NF x 12
4шт.
20
38679
PIN - mounting, "C" frame to pivot bracket
2шт.
21
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
2шт.
22
D25937
CYLINDER - dozer lift, hydraulic (R.H.) See figure 132 for breakdown
1шт.
D25936
CYLINDER - dozer lift, hydraulic (L.H.) See figure 132 for breakdown
1шт.
23
D24502
BRACKET - cylinder, R.H.
1шт.
D24501
BRACKET - cylinder, L.H.
1шт.
24
13-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
2шт.
25
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
8шт.
27
25-1010
NUT,5/8"-11, G5
10шт.
28
D24497
TRUNNION
- inner race
2шт.
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease, 1/8 NPT (Lincoln #5000)
4шт.
29
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
HHCS - 3/8 - 16 NC x 3
4шт.
30
92-6
LOCK WASHER,3/8"
4шт.
31
25-106
NUT,3/8"-16, G5
- hex. (3/8 - 16 NC)
4шт.
32
D24508
PIN,31.74mm OD x 50.8mm L
- mounting, Serial Range: cylinder-trunnion
4шт.
33
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease, 1/8 NPT (Lincoln #5000)
4шт.
34
D24516
WASHER
- thrust, bottom (1-9/32" I.D. x 2-1/4" O.D. x 3/16" thick)
2шт.
34a
32625
WASHER - thrust, top (1-9/32" I.D. x 2-1/2" O.D. x 11/64" thick)
2шт.
35
VT3268
BALL - steel (3/4" dia.)
38шт.
36
D24506
PLUG
- special (7/8 - 14 NF)
2шт.
37
16726
PIN - lift cylinder to "C" frame
2шт.
38
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
4шт.
Выбрано товаров: 42
