Запчасти Case 420B (126) - BULLDOZER (18) - ATTACHMENT ACCESSORIES

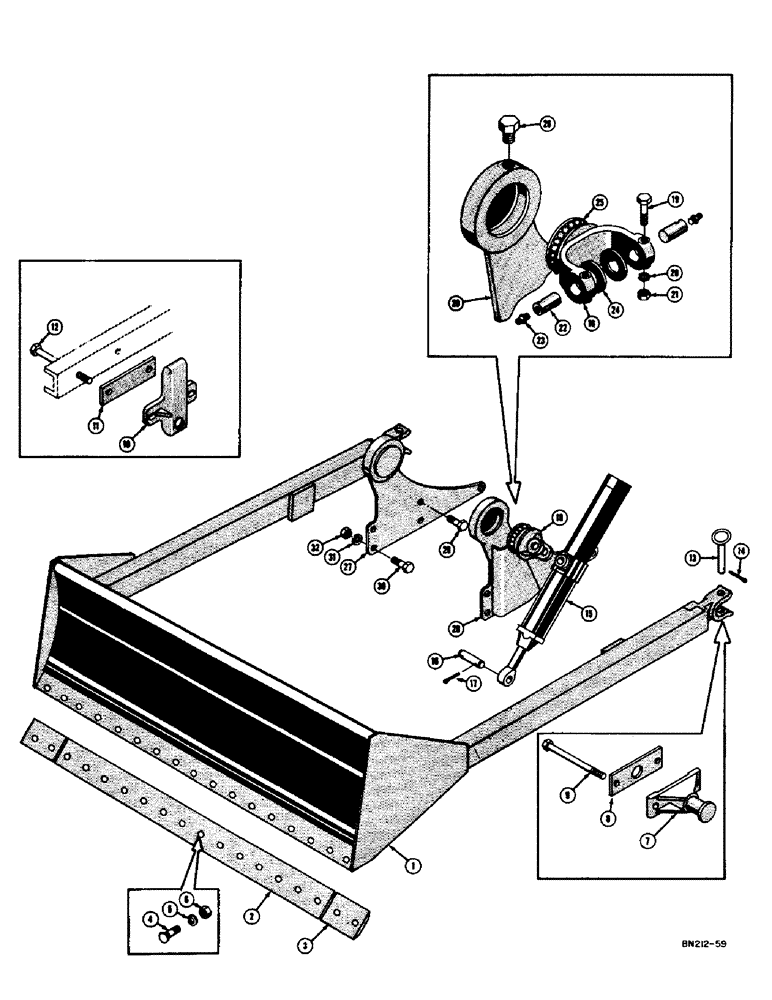

Схема запчастей Case 420B - (126) - BULLDOZER (18) - ATTACHMENT ACCESSORIES

Артикул

Название

Примечание

Количество

1

D24510

MOLDBOARD AND PUSH BEAM - bulldozer

1шт.

2

NLS

NO LONGER SERVICED

BLADE - cutting, center

1шт.

3

D25368

BLADE - cutting, end

2шт.

4

19-832

BOLT

- plow (1/2 - 13 NC x 2)

18шт.

5

92-8

LOCK WASHER,1/2"

18шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

18шт.

7

34044

SPACER

BRACKET - pivot, dozer attaching

2шт.

8

34043

SPACER,12.95mm ID x 19.05mm OD x 17.47mm L

- pivot bracket

2шт.

9

16-12192

BOLT (MACHINE)

HHCS - 3/4 - 16 NF x 12

4шт.

10

33961

CONNECTING LINK

PLATE - rub

2шт.

11

34047

LEVER

SPACER - rub plate

2шт.

12

16-12192

BOLT (MACHINE)

HHCS - 3/4 - 16 NF x 12

4шт.

13

38679

PIN - mounting, moldboard and push beam to pivot bracket

2шт.

14

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

15

D25937

CYLINDER - dozer lift, hydraulic (R.H.) See figure 132 for breakdown

1шт.

D25936

CYLINDER - dozer lift, hydraulic (L.H.) See figure 132 for breakdown

1шт.

16

16726

PIN - lift cylinder to moldboard and push beam

2шт.

17

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

18

D24497

TRUNNION

- inner race

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

2шт.

19

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8 - 16 NC x 3

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

4шт.

22

D24508

PIN,31.74mm OD x 50.8mm L

- mounting, Serial Range: cylinder-trunnion

4шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

4шт.

24

D24516

WASHER

- thrust, bottom (1-9/32" I.D. x 2-1/4" O.D. x 3/16" thick)

2шт.

24a

32625

WASHER - thrust, top (1-9/32" I.D. x 2-1/2" O.D. x 11/64" thick)

2шт.

25

VT3268

BALL - steel (3/4" dia.)

38шт.

26

D24506

PLUG

- special (7/8 - 14 NF)

2шт.

27

D24502

BRACKET - cylinder, R.H.

1шт.

28

D24501

BRACKET - cylinder, L.H.

1шт.

29

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

30

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

32

25-1010

NUT,5/8"-11, G5

10шт.
