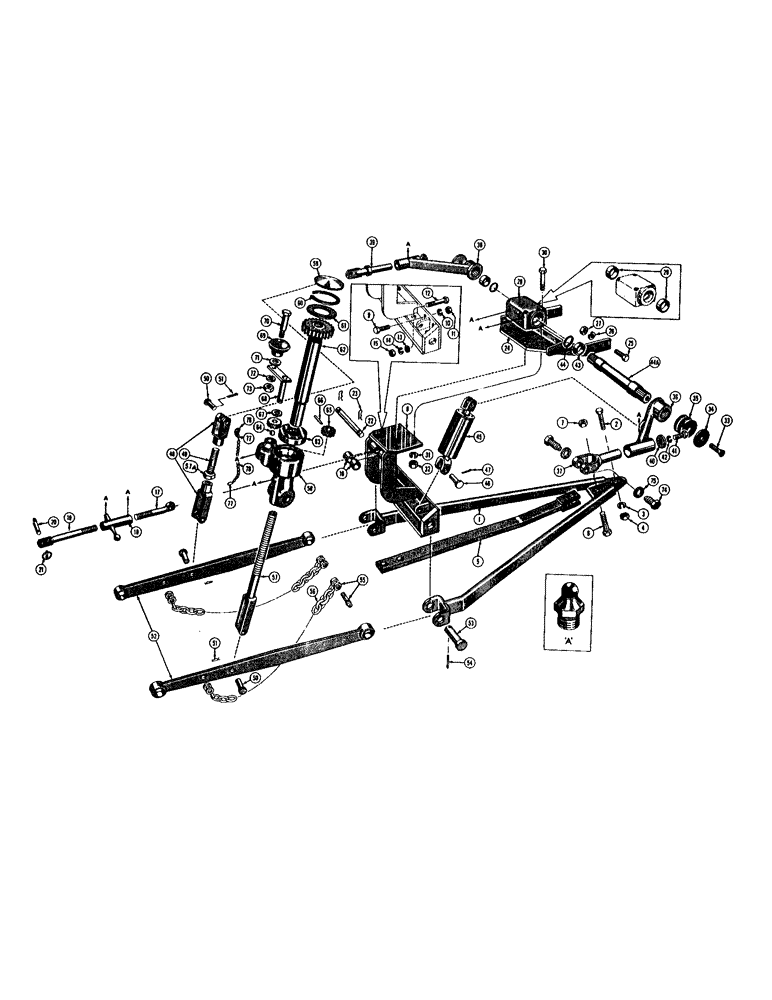

Запчасти Case 420B (104) - THREE POINT HITCH, THREE POINT HITCH DRAWBAR AND MOUNTING PARTS (18) - ATTACHMENT ACCESSORIES

1

D20635

ARM - mounting, drawbar (Front)

1шт.

2

14-1656

HHCS - 1 - 14NF x 3-1/2

1шт.

3

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

4

25-1116

NUT,1"-14, G5

- hex. (1-14NF)

1шт.

5

39778

SCREW

DRAWBAR - three point hitch

1шт.

6

14-1664

BOLT,Hex, 1" - 14 x 4", Gr 5

HHCS - 1 - 14NF x 4

1шт.

7

131-370

LOCK NUT

NUT - lock (1-14NF)

1шт.

8

D20636

BRACKET - mounting, three point hitch

1шт.

9

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

4шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18NF)

4шт.

12

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

13

95-8

WASHER,1/2"

- plain, (If used) 1/2"

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13NC)

2шт.

16

D20483

SPACER - liner

2шт.

17

A7240

LINK - depth adjusting, front (L.H. thread), 3-point hitch turnbuckle

1шт.

18

A7821

TURNBUCKLE - depth adjusting screw, 3-point hitch

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8NPT (Lincoln #5000), 3-point hitch turnbuckle

2шт.

19

D20622

LINK - depth adjusting, rear (R.H. thread), 3-point hitch turnbuckle

1шт.

20

V14209

X

PIN - mast, 3-point hitch turnbuckle

1шт.

21

SV2433

X

PIN - keeper (Mast pin), 3-point hitch turnbuckle

1шт.

22

39798

BRACKET

PIN - depth adjusting link, 3-point hitch turnbuckle

1шт.

23

VC1419

X

COTTER - hairpin, 3-point hitch turnbuckle

2шт.

24

NLS

NO LONGER SERVICED

STRAP - hanger, 3-point hitch rockshaft & housing

1шт.

25

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8 - 18NF x 2-3/4, 3-point hitch rockshaft & housing

4шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 3-point hitch rockshaft & housing 5/8"

4шт.

27

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18NF), 3-point hitch rockshaft & housing

4шт.

28

A20907

X

HOUSING - rockshaft, 3-point hitch

1шт.

29

O9235AB

X

BUSHING - rockshaft housing, 3-point hitch

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8NPT (Lincoln #5000), 3-point hitch rockshaft & housing

2шт.

30

14-1080

BOLT,Hex, 5/8" - 18 x 5", Gr 5

HHCS - 5/8 - 18NF x 5, 3-point hitch rockshaft & housing

4шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 3-point hitch rockshaft & housing 5/8"

4шт.

32

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18NF), 3-point hitch rockshaft & housing

4шт.

33

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- machine, bevel head, 3-point hitch rockshaft & housing

2шт.

34

O9239AB

PLATE - lock, lift arm, 3-point hitch rockshaft & housing

2шт.

35

O9238AB

SHIM - rockshaft lock plate, L.H., 3-point hitch housing

3шт.

36

D20612

ARM - rockshaft lift, R.H., 3-point hitch housing

1шт.

37

G16754

SWIVEL - lift arm, R.H., 3-point hitch rockshaft & housing

1шт.

38

D20614

ARM ASSY.

ARM - rockshaft lift, L.H., 3-point hitch housing

1шт.

39

G16755

SWIVEL - lift arm, L.H., 3-point hitch rockshaft & housing

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8NPT (Lincoln #5000), 3-point hitch rockshaft & housing

2шт.

40

G16747

WASHER - retainer, 3-point hitch rockshaft & housing

2шт.

41

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3-point hitch rockshaft & housing Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

42

92-6

LOCK WASHER,3/8"

3-point hitch rockshaft & housing 3/8"

2шт.

43

O9237AB

X

SPACER - rockshaft, 3-point hitch housing

2шт.

44

A20908

"O" RING - seal, rockshaft, 3-point hitch housing

2шт.

44a

A20911

ROCKSHAFT - three point hitch, housing

1шт.

45

A8282

CYLINDER - hydraulic (See figure 108 for breakdown), 3-point hitch draft arms, & lift links

1шт.

46

O8350AB

PIN - mounting, hydraulic cylinder, 3-point hitch draft arms, & lift links

2шт.

47

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , 3-point hitch draft arms, cylinder, & lift links 1/4" x 1 1/2"

2шт.

48

VT2971

CLEVIS - lift link rod, L.H. upper and lower, R.H. lower, 3-point hitch draft arms, cylinder

2шт.

49

D20651

X

ROD - lift link, L.H., 3-point hitch draft arms, cylinder

1шт.

50

141-8

CLEVIS PIN,3/4" x 1.910", HDN

PIN - yoke, leveling screw (L.H. upper and lower and R.H. lower), 3-point hitch draft arms, cylinder, & lift links

3шт.

51

VC1419

X

COTTER - hair pin, 3-point hitch draft arms, cylinder, & lift links

3шт.

52

D20641

ARM - draft, 3-point hitch, cylinder, & lift links

2шт.

53

D20629

PIN - mounting, draft arm, 3-point hitch, cylinder, & lift links

2шт.

54

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, , 3-point hitch, draft arms, cylinder, & lift links 1/4" x 1 7/8", Slotted

2шт.

55

D21858

SHACKLE - screw, 3-point hitch draft arms, cylinder, & lift links

4шт.

56

D21389

CHAIN - mounting bracket to draft arm, 3-point hitch, cylinder, & lift links

2шт.

57

D20648

ROD - lift link, R.H., 3-point hitch draft arms, cylinder

1шт.

57a

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16NF), 3-point hitch draft arms, cylinder, & lift links

1шт.

58

G1044

CASE - gear, leveling screw, 3-point hitch draft arms, cylinder, & lift links

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8NPT (Lincoln #5000), 3-point hitch draft arms, cylinder, & lift links

2шт.

59

41-40

PLUG,Exp, 2 1/2"

- expansion (2-1/2"), 3-point hitch draft arms, cylinder, & lift links

1шт.

60

O8582AB

X

SNAP RING - upper housing, 3-point hitch draft arms, cylinder, & lift links

1шт.

61

O265BL

WASHER - leveling screw gear (1-5/16" I.D. x 2-1/2" O.D. x 14 ga.), 3-point hitch draft arms, cylinder, & lift links

1шт.

62

G13390

TUBE

GEAR - leveling screw, with tube, 3-point hitch draft arms, cylinder, & lift links

1шт.

63

G10489

THRUST BEARING

BEARING - thrust, 3-point hitch draft arms, cylinder, & lift links

1шт.

64

O8635AB

X

BALL - crank bearing (1/4" dia.), 3-point hitch draft arms, cylinder, & lift links

1шт.

65

G10464

GEAR - adjusting screw crank, 3-point hitch draft arms, cylinder, & lift links

1шт.

66

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , 3-point hitch draft arms, cylinder & lift links 5/32" x 7/8", Slotted

1шт.

67

O5087A

X

WASHER - thrust, crank gear, 3-point hitch draft arms, cylinder, & lift links

1шт.

68

G13119

CRANK - adjusting screw, 3-point hitch draft arms, cylinder, & lift links

1шт.

69

O4995AB

X

KNOB - spinner, 3-point hitch draft arms, cylinder, & lift links

1шт.

70

VT2964

BOLT - spinner knob, 3-point hitch draft arms, cylinder, & lift links

1шт.

71

G10488

WASHER - thrust, adjusting crank, 3-point hitch draft arms, cylinder, & lift links

1шт.

72

92-6

LOCK WASHER,3/8"

3-point hitch draft arms, cylinder, & lift links 3/8"

1шт.

73

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16NC), 3-point hitch draft arms, cylinder, & lift links

1шт.

74

O9214AB

X

PIN - pivot, leveling screw, 3-point hitch draft arms, cylinder, & lift links

2шт.

75

O164B

X

WASHER - pivot pin (29/32" I.D. x 1-3/8" O.D.), 3-point hitch draft arms, cylinder, & lift links

2шт.

76

O10953AB

RETAINER - chain, 3-point hitch draft arms, cylinder, & lift links

1шт.

77

O9191AB

X

"S" HOOK - chain, 3-point hitch draft arms, cylinder, & lift links

1шт.

78

D20505

CHAIN, 3-point hitch draft arms, cylinder, & lift links

1шт.
