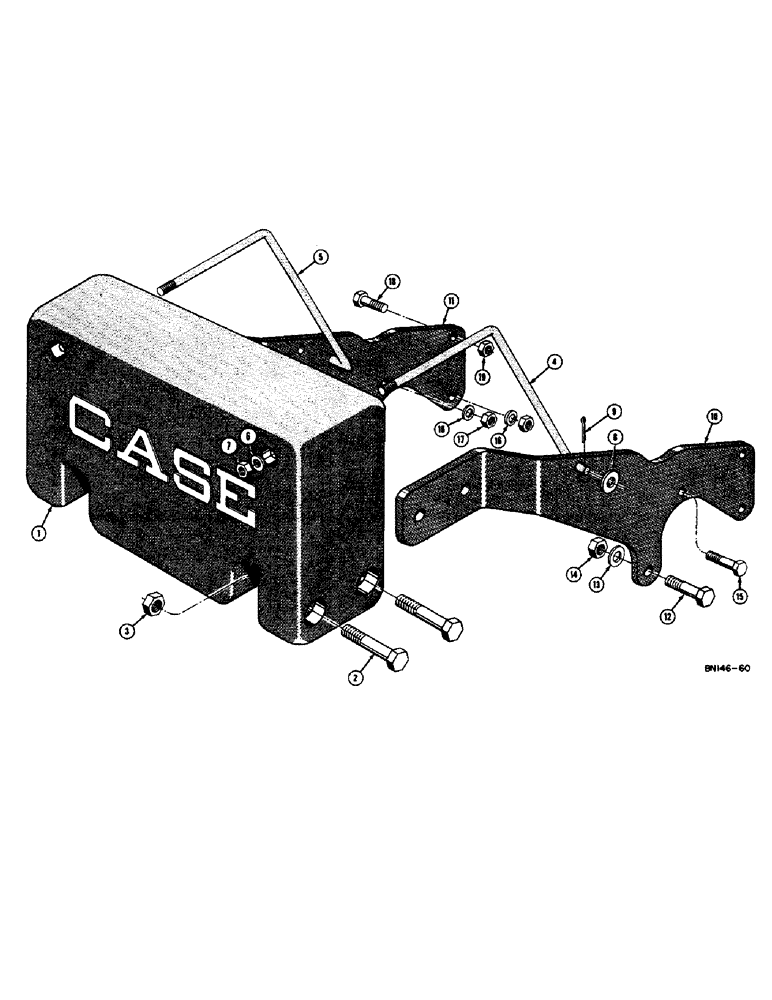

Запчасти Case 420B (102) - 900 LB. COUNTERWEIGHT (WITH WINCH) (18) - ATTACHMENT ACCESSORIES

1

32105

COUNTERWEIGHT - rear, 900 lb.

1шт.

2

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, Hex, 1"-8 x 5", G5

4шт.

3

230-41116

NUT,1"-8, GA

NUT - lock (1 - 8NC)

4шт.

4

D26890

ROD - support, R.H.

1шт.

5

D26889

ROD - support, L.H.

1шт.

6

195-41

WASHER,5/8"

2шт.

7

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock (5/8 - 11NC)

2шт.

8

95-10

WASHER,5/8"

- plain (5/8)

2шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

10

D26910

ARM - support, counterweight, R.H.

1шт.

11

D26911

ARM - support, counterweight, L.H.

1шт.

12

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

13

D21262

WASHER

SPACER

2шт.

14

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock (3/4 - 10NC)

2шт.

15

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2 - 13NC x 2-1/2

2шт.

16

W8199S

SPACER

4шт.

17

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2 - 13NC)

2шт.

18

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

19

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock (5/8 - 11NC)

4шт.
