Запчасти Case 420B (102[1]) - REAR COUNTERWEIGHT (1400 LB.) (18) - ATTACHMENT ACCESSORIES

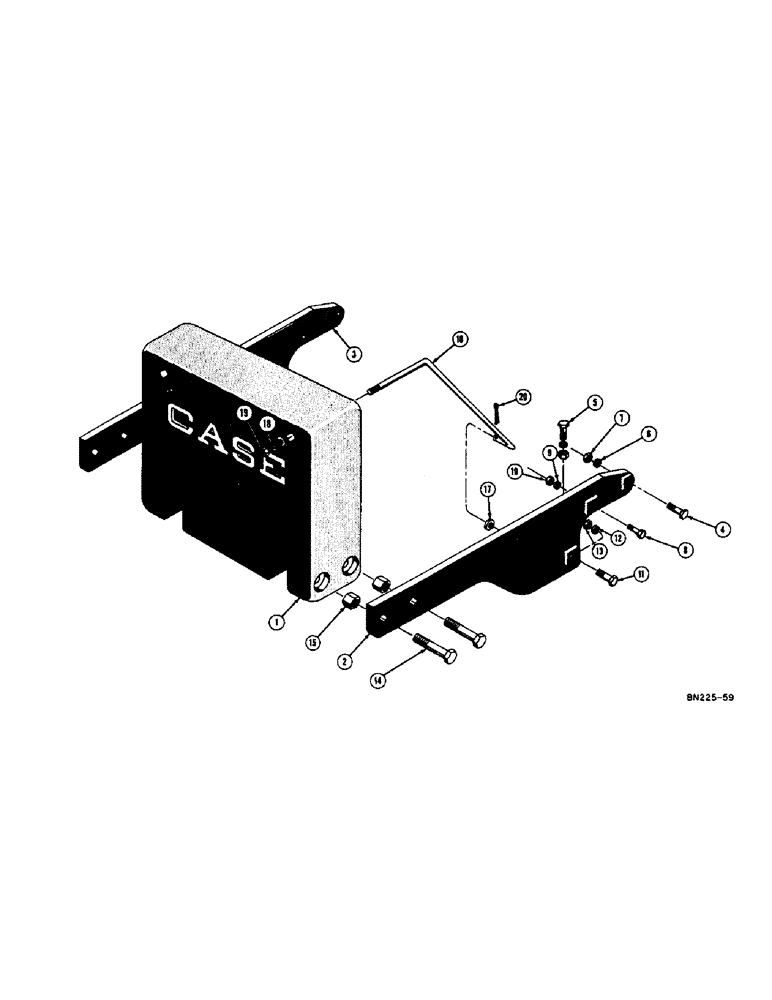

Схема запчастей Case 420B - (102[1]) - REAR COUNTERWEIGHT (1400 LB.) (18) - ATTACHMENT ACCESSORIES

Артикул

Название

Примечание

Количество

1

31112

O-RING

COUNTERWEIGHT - rear (1400 lb.)

1шт.

2

D23994

ARM - support, counterweight, R.H.

1шт.

3

D23995

ARM - support, counterweight, L.H.

1шт.

4

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8 - 11NC x 2-1/2

2шт.

5

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

25-1010

NUT,5/8"-11, G5

4шт.

8

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2 - 13NC x 2-1/2

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13NC)

2шт.

11

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

12

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

13

25-1012

NUT,3/4"-10, G5

2шт.

14

13-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

4шт.

15

25-1016

NUT,1"-8, G5

4шт.

16

D24058

ROD - stabilizer, R.H.

1шт.

D24057

ROD - stabilizer, L.H.

1шт.

17

195-41

WASHER,5/8"

4шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

19

25-1010

NUT,5/8"-11, G5

2шт.

20

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

Выбрано товаров: 21
