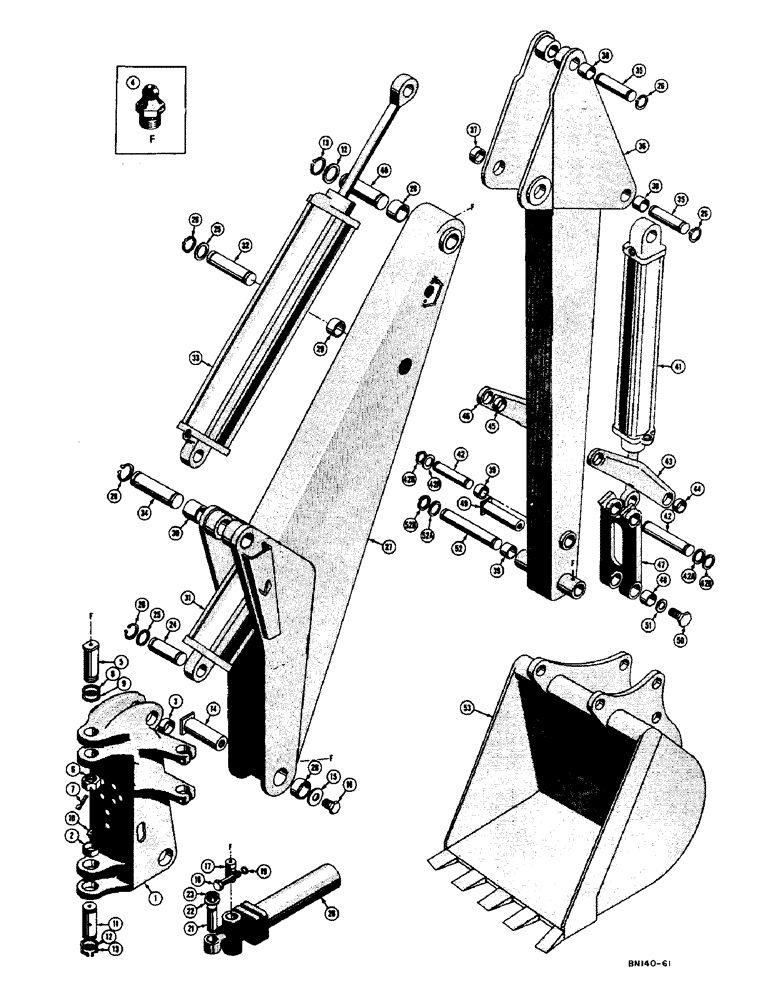

Запчасти Case 420B (158) - TOWER, BOOM, DIPPER ARM, AND BUCKET (14) - DIPPERSTICKS

1

D25040

TOWER - swing, backhoe

1шт.

2

D23203

BUSHING

- lower swing pivot

2шт.

3

D25000

BUSHING

- boom cylinder pivot

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

5

D23909

BOLT - mounting, tower to mounting bracket (Upper swing pivot)

1шт.

6

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - hex. slotted (1-1/2 - 12 NF)

1шт.

7

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

8

D26305

SPACER

- bearing, upper (3/8" thick)

1шт.

D26991

BEARING

SPACER - bearing, upper (1/4" thick)

1шт.

9

D23907

SPACER

- bearing, lower (5/16" thick)

1шт.

10

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) 90º, 1/8" NPT x .84" lg

1шт.

11

D23519

AXLE PIN

PIN - mounting, tower to mounting bracket (Lower swing pivot)

1шт.

12

D25509

WASHER

- special, D23519 and D23517 pins (2-1/64" I.D. x 3" O.D. x #12 gauge thick)

4шт.

13

D26919

SNAP RING,#200, Ext

Ring, Snap, , D23519 and D23517 pins (.125" thick) see D25281 #200, Ext

4шт.

D25281

RING, SNAP

SNAP RING - D23519 and D23517 pins (.078" thick) See D26919

4шт.

14

D25987

X

PIN - mounting, Serial Range: boom-tower

1шт.

15

D25991

WASHER - special (1-1/32" I.D. x 2-1/2" O.D. x 1/2" thick)

1шт.

16

13-1632

BOLT,Hex, 1" - 8 x 2", Gr 5, Full Thd

HHCS - 1 - 8 NC x 2 (Original equipment - use 113-900)

1шт.

113-900

BOLT,Locking, 1" - 8 x 2", Gr 5

- nylok self locking (1-8 NC x 2) Replacement - see 13-1632

1шт.

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, , Original equipment (Not shown) Ext Tooth, 1"

1шт.

17

D25514

PIN - mounting, swing, Serial Range: cylinder-tower

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

4шт.

18

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8 - 11 NC x 2-3/4

4шт.

19

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20

D25025

CYLINDER - swing, hydraulic (See figure 176 for breakdown)

2шт.

21

D25075

PIN

- pivot, swing cylinder to mounting bracket

2шт.

22

D28266

WASHER

- special (1-17/64" I.D. x 2-1/8" O.D. x #12 gauge thick)

4шт.

23

D25278

RING, SNAP

SNAP RING - D25075 pin (.062" thick) See D26918

4шт.

D26918

SNAP RING,#125, Ext

Ring, Snap, , D25075 pin (.093" thick) see D25278 #125, Ext

4шт.

24

D23523

PIN

- pivot, boom, Serial Range: cylinder-tower

1шт.

25

195-2165

WASHER,1 13/16" x 2 3/4" x .134"

- standard wrot (1-13/32" I.D. x 2-3/4" O.D. x #10 gauge thick)

4шт.

26

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23523, D23522, D23521, and D23441 pins #175, Ext

10шт.

27

D23428

BOOM - backhoe

1шт.

28

36121

BUSHING

- tower pivot and dipper arm pivot

4шт.

29

D25258

BUSHING

- boom cylinder pivot

2шт.

30

D25029

BUSHING

- crowd cylinder pivot

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 67-1/2 degrees grease, 1/8 NPT (Lincoln #5300) Not shown

1шт.

31

D25027

CYLINDER - boom, hydraulic (Used up to backhoe serial #4043607) See figuer 178 for breakdown (Use D27156)

1шт.

D27156

CYLINDER ASSY.

CYLINDER - boom, hydraulic (Used from backhoe serial #4043607) See figure 178 for breakdown (See D25027)

1шт.

32

D23522

AXLE PIN

PIN - retaining, boom, Serial Range: cylinder-boom

1шт.

33

D25012

CYLINDER - crowd, hydraulic (Used up to backhoe serial #4043607) See figure 179A for breakdown (Use D27489)

1шт.

D27489

CYLINDER - crowd, hydraulic (Used from backhoe serial #4043607) See figure 179A for breakdown (See D25012)

1шт.

34

D23521

AXLE PIN

PIN - retaining, crowd, Serial Range: cylinder-boom

1шт.

35

D23441

AXLE PIN

PIN - pivot, crowd cylinder to dipper arm, also bucket cylinder to dipper arm

2шт.

36

D23458

ARM - dipper

1шт.

37

D23203

BUSHING

- boom pivot

2шт.

38

D25029

BUSHING

- crowd cylinder pivot, also bucket cylinder pivot

4шт.

39

D23444

BUSHING

- bucket pivot, also bucket linkage pivot

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

2шт.

40

D23517

PIN

- pivot, dipper, Serial Range: arm-boom

1шт.

41

D25045

CYLINDER - bucket, hydraulic (See figure 180 for breakdown)

1шт.

42

D23358

PIN - pivot, dipper arm to bucket linkage, also bucket cylinder to bucket linkage

2шт.

42a

D28266

WASHER

- special (1-17/64" I.D. x 2-1/8" O.D. x #12 gauge thick)

4шт.

42b

D25278

RING, SNAP

SNAP RING - D25075 pin (.062" thick) See D26918

4шт.

D26918

SNAP RING,#125, Ext

Ring, Snap, , D25075 pin (.093" thick) see D25278 #125, Ext

4шт.

43

D27680

LINK - bucket, dipper arm to bucket cylinder (R.H.)

1шт.

44

DR10754

BUSHING

- bucket cylinder pivot

1шт.

45

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- dipper arm pivot

1шт.

46

D27679

LINK - bucket, dipper arm to bucket cylinder (L.H.)

1шт.

44

DR10754

BUSHING

- bucket cylinder pivot

1шт.

45

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- dipper arm pivot

1шт.

47

D24909

LINK - dump, bucket

1шт.

48

DR10011

BUSHING

- bucket dump link

4шт.

49

D25021

X

PIN - pivot, dump link to bucket (Used up to backhoe serial #4043057) Use 35290

1шт.

35290

PIN

- pivot, dump link to bucket (Used from backhoe serial #4043057)

1шт.

50

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

51

D25022

WASHER

- D25021 pin (17/32" I.D. x 1-3/4" O.D. x 3/16" thick)

1шт.

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (35290 pin), Not shown Int Tooth, 1/2"

1шт.

D23740

BUSHING

- 35290 pin (Not shown)

1шт.

52

D23354

PIN - pivot, bucket to dipper arm (Used up to bucket serial #4043057) Use 35288

1шт.

35288

PIN - pivot, bucket to dipper arm (Used from backhoe #4043057)

1шт.

52a

D28266

WASHER

- special (1-17/64" I.D. x 2-1/8" O.D. x #12 gauge thick) D23354 pin

2шт.

52b

D25278

RING, SNAP

SNAP RING - D23354 pin (.062" thick) See D26918

2шт.

D26918

SNAP RING,#125, Ext

Ring, Snap, , D23354 pin (.093" thick) see D25278 #125, Ext

2шт.

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

35288 pin, not shown Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (35288 pin), Not shown Int Tooth, 1/2"

1шт.

53

D23360M

BUCKET - backhoe, trenching (24") See figure 160 for breakdown and other buckets

1шт.
