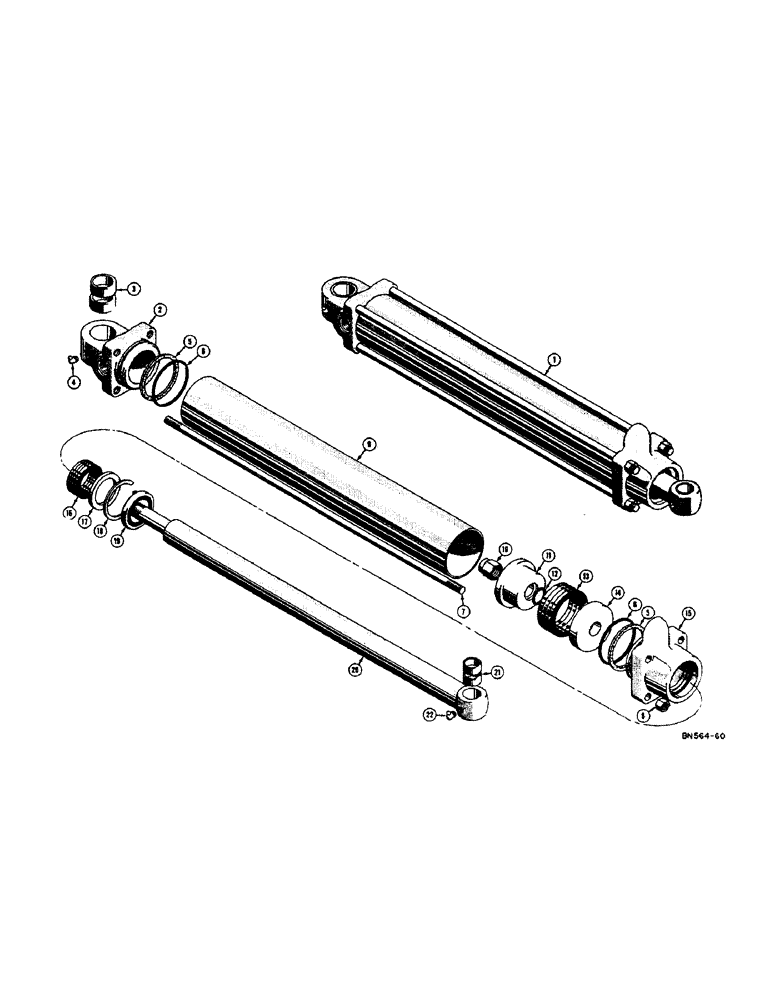

Запчасти Case 420B (180[1]) - D25045 HYDRAULIC BUCKET CYLINDER (07) - HYDRAULIC SYSTEM

1

D25045

CYLINDER - hydraulic, bucket

1шт.

2

D25051

END - cylinder

1шт.

3

D25000

BUSHING

- cylinder end

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5000) 90º, 1/8" NPT x .84" lg

1шт.

5

D24987

RING

- leather backup

2шт.

6

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

"O" RING - seal, cylinder ends to cylinder tube

2шт.

7

D25048

TIE-ROD

ROD - tie

4шт.

8

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2 - 13 NC)

4шт.

9

D25049

TUBE - cylinder

1шт.

10

D23688

X

NUT - lock (1 - 14 NF)

1шт.

11

D23736

PISTON - cylinder

1шт.

12

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - seal

1шт.

13

17578

PACKING

- piston

1шт.

14

30576

SPRING

- packing, piston

1шт.

15

D25026

CAP - cylinder end

1шт.

16

30568

PACKING

- piston rod

1шт.

17

D25043

WASHER

- piston rod packing

1шт.

18

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

19

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

20

D25050

ROD - piston

1шт.

21

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) 90º, 1/8" NPT x .84" lg

1шт.
