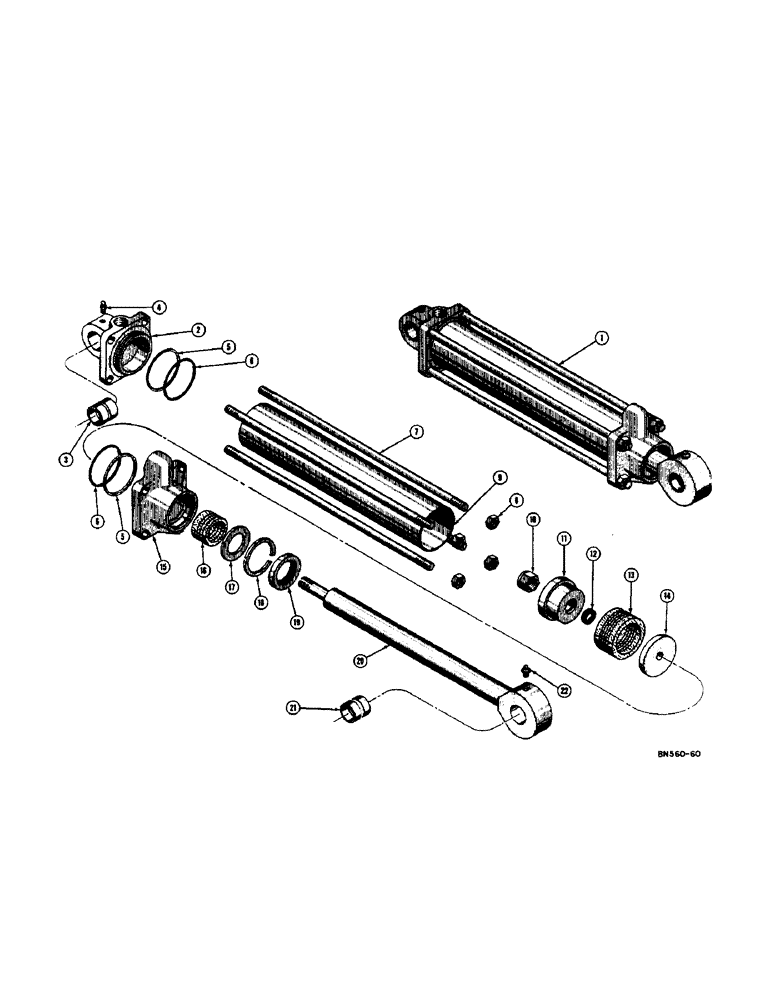

Запчасти Case 420B (179A[1]) - D27489 HYDRAULIC CROWD CYLINDER (07) - HYDRAULIC SYSTEM

1

D27489

CYLINDER - crowd, hydraulic (1-1/4" - 12 NF locknut on piston rod)

1шт.

2

D25001

END - cylinder

1шт.

3

D25000

BUSHING

- cylinder end

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) 90º, 1/8" NPT x .84" lg

1шт.

5

D24988

RING

- leather backup

2шт.

6

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

"O" RING - seal

2шт.

7

D25008

ROD - tie

4шт.

8

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock (5/8 - 11 NC)

4шт.

9

D25006

TUBE - cylinder

1шт.

10

D27201

X

NUT - lock (1-1/4 - 12 NF)

1шт.

Part of Crowd Cylinder Conversion Kit, P/N D11188

1шт.

11

D27198

PISTON - cylinder

1шт.

Part of Crowd Cylinder Conversion Kit, P/N D11188

1шт.

12

09018AB

"O" RING - seal

1шт.

Part of Crowd Cylinder Conversion Kit, P/N D11188

1шт.

13

31526

PACKING

- piston

1шт.

Part of Crowd Cylinder Conversion Kit, P/N D11188

1шт.

14

D27199

WASHER - piston packing

1шт.

Part of Crowd Cylinder Conversion Kit, P/N D11188

1шт.

15

D24979

CAP - cylinder end

1шт.

16

17598

PACKING

- piston rod

1шт.

17

D25044

WASHER

- piston rod packing

1шт.

18

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , piston rod packing washer 2.75", Int, #275

1шт.

19

31525

WIPER SEAL

- wiper, piston rod

1шт.

20

D27488

ROD - piston

1шт.

Part of Crowd Cylinder Conversion Kit, P/N D11188

1шт.

21

D25000

BUSHING

- piston rod

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

D11188

KIT

crowd cylinder conversion, for converting D25012 crowd cylinder with 1" - 14 NF locknut on piston rod to D27489 crowd cylinder with 1-1/4" - 12 NF locknut on piston rods, Includes: Refs. 10-14 and 20

1шт.
