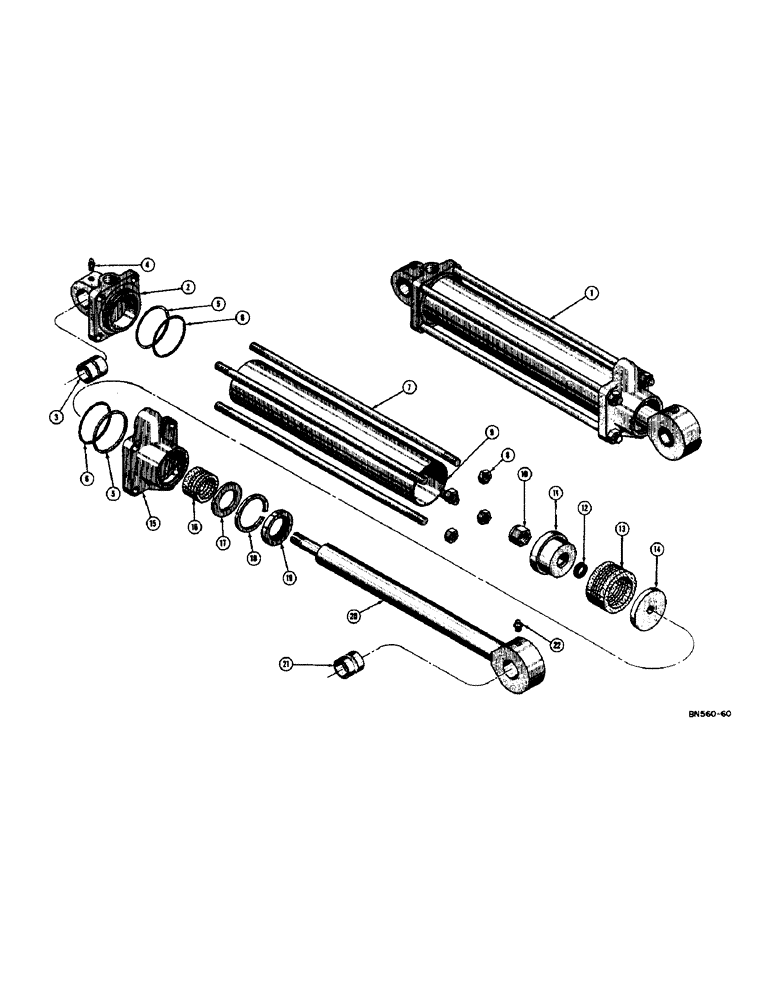

Запчасти Case 420B (176) - D25052 HYDRAULIC STABILIZER CYLINDERS (07) - HYDRAULIC SYSTEM

1

D25052

CYLINDER - stabilizer, hydraulic

1шт.

2

D25051

END - cylinder

1шт.

3

D25000

BUSHING

- cylinder end

2шт.

4

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

5

D24987

RING

- leather backup

2шт.

6

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

"O" RING - seal, cylinder ends to cylinder tube

2шт.

7

D25056

ROD - tie

4шт.

8

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2 - 13 NC)

4шт.

9

D25055

TUBE - cylinder

1шт.

10

D23688

X

NUT - lock (1 - 14 NF)

1шт.

11

D23736

PISTON - cylinder

1шт.

12

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - seal

1шт.

13

17578

PACKING

- piston

1шт.

14

NLS

NO LONGER SERVICED

- piston packing

1шт.

15

D25026

CAP - cylinder end

1шт.

16

30568

PACKING

- piston rod

1шт.

17

D25043

WASHER

- piston rod packing

1шт.

18

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

19

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

20

D25054

ROD - piston

1шт.

21

(NOT USED)

1шт.

22

(NOT USED)

1шт.
