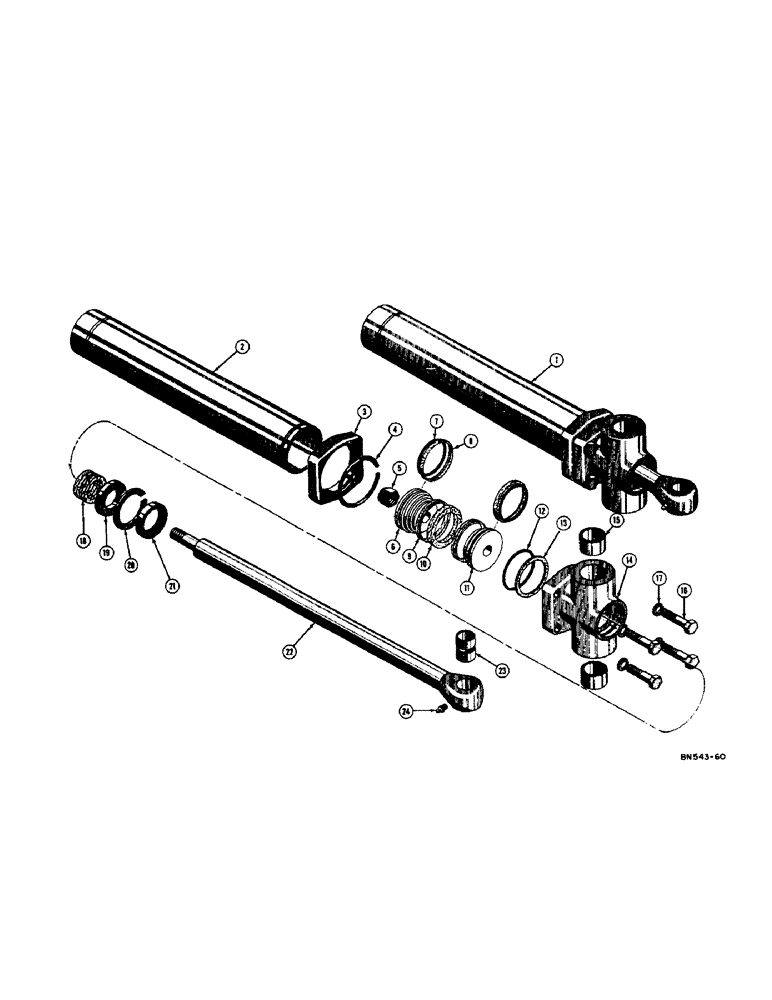

Запчасти Case 420B (176[1]) - D25025 HYDRAULIC SWING CYLINDERS (07) - HYDRAULIC SYSTEM

1

D25025

CYLINDER - swing, hydraulic

2шт.

2

D25024

TUBE AND END CAP - cylinder

1шт.

3

D24981

COLLAR - cylinder tube

1шт.

4

D24982

RING, SNAP

SNAP RING - collar retaining

1шт.

5

D23739

LOCK NUT

NUT - lock (3/4 - 16 NF)

1шт.

6

D25633

PISTON - half (Nut end)

1шт.

7

D25620

X

"O" RING - seal, piston

2шт.

8

D25625

RING

- wiper, piston

2шт.

9

D25615

SEALING RING

RING - seal, piston

2шт.

10

D25609

SEAL ASSY.

SEAL - bearing, piston

1шт.

11

D25607

"O" RING - seal, piston (If used)

1шт.

12

03522CK

"O" RING - seal, piston rod (If used)

1шт.

13

D25644

PISTON - half (Rod end)

1шт.

14

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

"O" RING - seal, cylinder tube to end cap

1шт.

15

D24986

RING

- leather backup

1шт.

16

D25932

CAP - cylinder end

1шт.

17

D20201

BUSHING

- cylinder end cap

2шт.

18

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

HHCS - 7/16 - 13 NC x 2

4шт.

19

92-7

LOCK WASHER,7/16"

4шт.

20

17577

PACKING

- piston rod

1шт.

21

D25042

WASHER

- packing, piston rod

1шт.

22

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

23

17583

WIPER SEAL

- wiper, piston rod

1шт.

24

D25265

YOKE

ROD - piston

1шт.

25

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.
