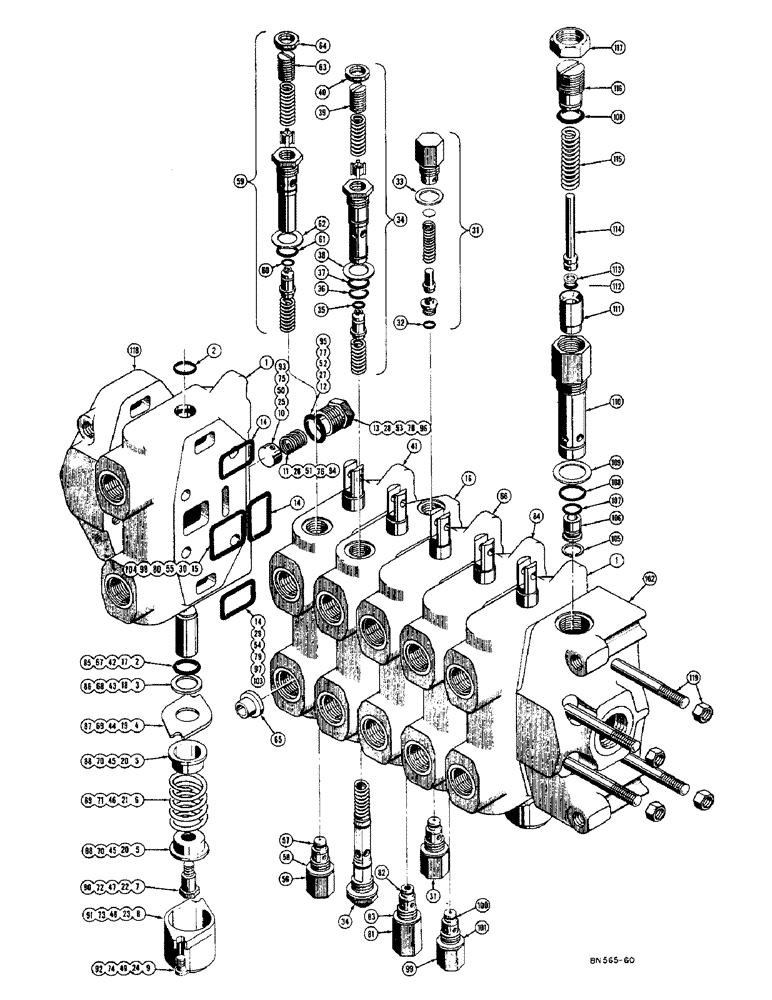

Запчасти Case 420B (172) - D25678 AND D27563 HYDRAULIC CONTROL VALVES (07) - HYDRAULIC SYSTEM

D25678

VALVE - control, backhoe (Used on models having boom cylinder with 1-3/4" dia. piston rod) Use D27563

1шт.

Control valves are identical for service, with the exception of the restrictor check.

1шт.

D27563

LOCK VALVE

VALVE - control, backhoe (Used on models having boom cylinder with 2" dia. piston rod)

1шт.

Control valves are identical for service, with the exception of the restrictor check.

1шт.

1

D26842

ELEMENT

SECTION - valve, stabilizer cylinder control

2шт.

2

A11027

GASKET

"O" RING - seal, spool

2шт.

3

D26829

RING

- backup, spool seal

1шт.

4

D26830

PLATE

- retaining

1шт.

5

D26831

GUIDE

- spring

2шт.

6

D26832

SPRING

- centering

1шт.

7

D26833

BOLT

- stripper

1шт.

8

D26823

CAP

- valve

1шт.

9

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted Fillister head (1/4 - 20 NC x 3/4)

2шт.

10

D26824

SPOOL

POPPET - check valve

1шт.

11

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

12

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

"O" RING - seal, cap

1шт.

13

D26825

CAP - check valve

1шт.

14

D26819

O-RING,1.299" ID x 1.505" OD

"O" RING - seal

3шт.

15

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O" RING - seal

1шт.

16

D28068

X

SECTION - valve, swing cylinder control

1шт.

17

A11027

GASKET

"O" RING - seal, spool

2шт.

18

D26829

RING

- backup, spool seal

1шт.

19

D26830

PLATE

- retaining

1шт.

20

D26831

GUIDE

- spring

2шт.

21

D26832

SPRING

- centering

1шт.

22

D26833

BOLT

- stripper

1шт.

23

D26823

CAP

- valve

1шт.

24

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted Fillester head (1/4 - 20 NC x 3/4)

2шт.

25

D26824

SPOOL

POPPET - check valve

1шт.

26

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

27

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

"O" RING - seal, cap

1шт.

28

D26825

CAP - check valve

1шт.

29

D26819

O-RING,1.299" ID x 1.505" OD

"O" RING - seal

1шт.

30

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O" RING - seal

3шт.

31

D26835

CARTRIDGE - relief, secondary (Color code - green, 2750 P.S.I. preset at factory)

2шт.

32

08386AB

"O" RING - seal

1шт.

33

D26864

X

WASHER - gasket

1шт.

34

D26838

FILTER

CARTRIDGE - relief, cross over (Color code - brown, 1300 P.S.I. preset at factory)

2шт.

35

08386AB

"O" RING - seal, poppet

1шт.

36

VT2983

X

"O" RING - seal, shell (Lower)

1шт.

37

D26872

O-RING

"O" RING - seal, shell (Upper)

1шт.

38

D26870

GASKET

WASHER - gasket

1шт.

39

D26878

X

SCREW - set, adjusting

1шт.

40

D26879

LOCK NUT

NUT - lock, adjusting screw

1шт.

41

D26839

SECTION - valve, boom cylinder control

1шт.

42

A11027

GASKET

"O" RING - seal, spool

2шт.

43

D26829

RING

- backup, spool seal

1шт.

44

D26830

PLATE

- retaining

1шт.

45

D26831

GUIDE

- spring

2шт.

46

D26832

SPRING

- centering

1шт.

47

D26833

BOLT

- stripper

1шт.

48

D26823

CAP

- valve

1шт.

49

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted Fillister head (1/4 - 20 NC x 3/4)

2шт.

50

D26824

SPOOL

POPPET - check valve

1шт.

51

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

52

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

"O" RING - seal, cap

1шт.

53

D26825

CAP - check valve

1шт.

54

D26819

O-RING,1.299" ID x 1.505" OD

"O" RING - seal

3шт.

55

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O" RING - seal

1шт.

56

D26835

CARTRIDGE - relief, secondary (Color code - green, 2750 P.S.I. preset at factory)

1шт.

57

08386AB

"O" RING - seal

1шт.

58

D26864

X

WASHER - gasket

1шт.

59

D26841

CARTRIDGE

- relief, boom down pressure (Color code - black, 1250 P.S.I. preset at factory)

1шт.

60

08386AB

"O" RING - seal, poppet

1шт.

61

D26872

O-RING

"O" RING - seal, shell

1шт.

62

D26870

GASKET

WASHER - gasket

1шт.

63

D26878

X

SCREW - set, adjusting

1шт.

64

D26879

LOCK NUT

NUT - lock, adjusting screw

1шт.

65

D26847

CHECK - restrictor (9/32" dia. orifice) D25678 valve

1шт.

Used up to backhoe serial #4043514, or on models having boom cylinder with 1-3/4" dia. piston rod

1шт.

D27565

VALVE

CHECK - restrictor (7/32" dia. orifice) D27563 valve

1шт.

66

D28054

SECTION - valve, crowd cylinder control

1шт.

67

A11027

GASKET

"O" RING - seal, spool

2шт.

68

D26829

RING

- backup, spool seal

1шт.

69

D26830

PLATE

- retaining

1шт.

70

D26831

GUIDE

- spring

2шт.

71

D26832

SPRING

- centering

1шт.

72

D26833

BOLT

- stripper

1шт.

73

D26823

CAP

- valve

1шт.

74

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted Fillister head (1/4 - 20 NC x 3/4)

2шт.

75

D26824

SPOOL

POPPET - check valve

1шт.

76

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

77

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

"O" RING - seal, cap

1шт.

78

D26825

CAP - check valve

1шт.

79

D26819

O-RING,1.299" ID x 1.505" OD

"O" RING - seal

3шт.

80

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O" RING - seal

1шт.

81

D28017

- relief, secondary (Color code - green, 2750 P.S.I. preset at factory)

1шт.

82

08386AB

"O" RING - seal

1шт.

83

16219

GASKET

WASHER - gasket

1шт.

84

D26821

SECTION - valve, bucket cylinder control

1шт.

85

A11027

GASKET

"O" RING - seal, spool

2шт.

86

D26829

RING

- backup, spool seal

1шт.

87

D26830

PLATE

- retaining

1шт.

88

D26831

GUIDE

- spring

2шт.

89

D26832

SPRING

- centering

1шт.

90

D26833

BOLT

- stripper

1шт.

91

D26823

CAP

- valve

1шт.

92

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted Fillister head (1/4 - 20 NC x 3/4)

2шт.

93

D26824

SPOOL

POPPET - check valve

1шт.

94

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

95

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

"O" RING - seal

1шт.

96

D26825

CAP - check valve

1шт.

97

D26819

O-RING,1.299" ID x 1.505" OD

"O" RING - seal

3шт.

98

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O" RING - seal

1шт.

99

D26835

CARTRIDGE - relief, secondary (Color code - green, 2750 P.S.I. preset at factory)

1шт.

100

08386AB

"O" RING - seal

1шт.

101

D26864

X

WASHER - gasket

1шт.

102

D26816

SECTION - valve inlet

1шт.

103

D26819

O-RING,1.299" ID x 1.505" OD

"O" RING - seal

3шт.

104

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O" RING - seal

1шт.

D26818

CARTRIDGE - relief valve, main (1800 P.S.I. preset at factory)

1шт.

105

D26858

RING, SNAP

SNAP RING - poppet retaining

1шт.

106

D26856

POPPET - relief valve

1шт.

107

VT2983

X

"O" RING - seal, poppet

1шт.

108

03991CS

"O" RING - seal, shell and adjusting screw

2шт.

109

D26859

X

WASHER - gasket, shell

1шт.

110

D26848

SHELL - cartridge

1шт.

111

D26855

SEAT

- floating

1шт.

112

A11026

GASKET

"O" RING - seal, plunger

1шт.

113

D26853

BACK-UP RING

RING - backup, plunger seal

1шт.

114

D26852

PLUNGER - displacement

1шт.

115

D26860

VALVE SPRING

SPRING - compression

1шт.

116

D26849

SCREW - spring adjusting

1шт.

117

D26850

NUT

- lock, adjusting screw

1шт.

118

D26845

SECTION - valve, outlet

1шт.

119

D26846

STUD

- valve assembly

4шт.
