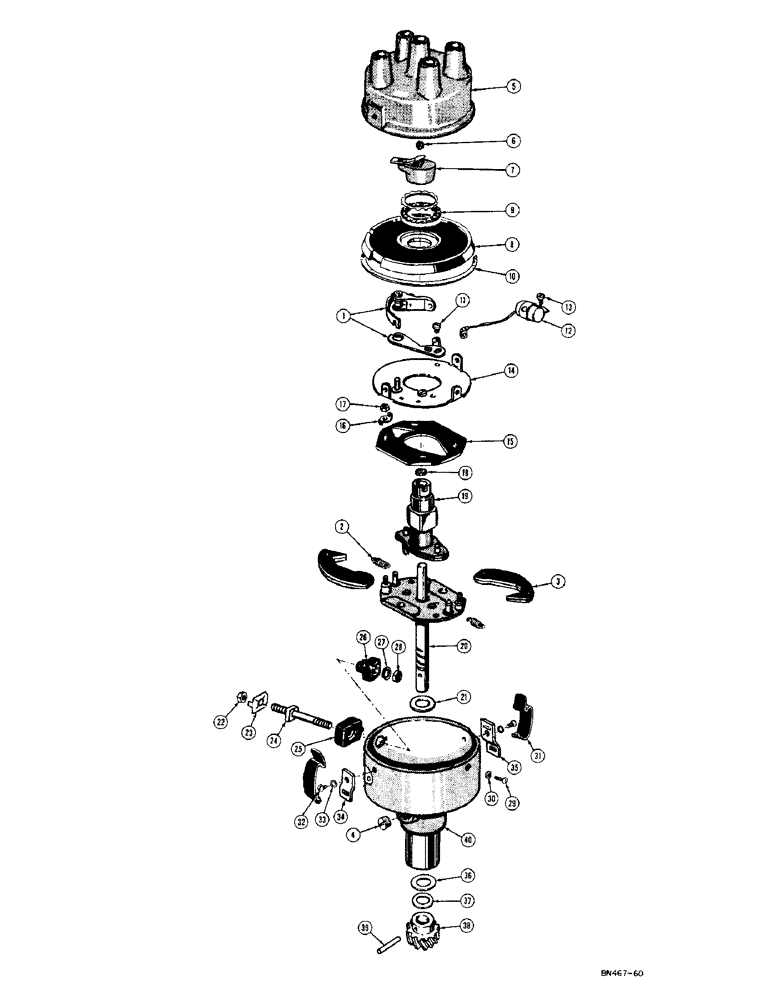

Запчасти Case 420 (032) - DISTRIBUTOR (DELCO-REMY) (06) - ELECTRICAL SYSTEMS

G11919

X

DISTRIBUTOR - Delco-Remy no. 1111909 (Complete with advance arm)

1шт.

G44859

X

DISTRIBUTOR - Delco-Remy no. 1111909

1шт.

1

F10714

POINT

CONTACT SET - breaker points (Delco-Remy no. 1855720)

1шт.

2

1947660

SPRING - governor weight

2шт.

3

1873697

WEIGHT - governor

2шт.

4

453465

PLUG - pipe, distributor housing

1шт.

5

811735

COVER ASSY

CAP - distributor

1шт.

6

1938193

BUTTON - carbon

1шт.

7

G44040

ROTOR

1шт.

8

1900119

COVER

- distributor housing

1шт.

9

1914309

WASHER - felt, housing cover

1шт.

10

1889966

GASKET - housing cover

1шт.

11

816784

SCREW - adjusting, contact set

1шт.

12

1869704

CONDENSOR

1шт.

13

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

- condenser attaching

1шт.

14

1847643

PLATE - breaker

1шт.

15

1885557

PLATE - hold down, governor weight

1шт.

16

1885558

LOCKWASHER - weight hold down plate

2шт.

17

1923540

NUT

- attaching, weight hold down plate

2шт.

18

819639

WICK - felt

1шт.

19

1947656

CAM - advance and breaker

1шт.

20

1947655

MAIN SHAFT AND WEIGHT PLATE ASSY

1шт.

21

811912

WASHER

- spacer, weight plate

1шт.

22

120622

NUT,#8-32

Outside, terminal stud #8-32

1шт.

23

1914144

CLIP - lock, terminal stud

1шт.

24

1916806

STUD

- terminal

1шт.

25

1914142

BUSHING - outside, terminal stud

1шт.

26

1916805

BUSHING

- inside, terminal stud

1шт.

27

1904376

WASHER

LOCKWASHER - inside, terminal stud

1шт.

28

817363

NUT - inside, terminal stud

1шт.

29

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- breaker plate attaching

1шт.

30

121841

LOCK WASHER,#8

WASHER, LOCK, , Breaker plate, attaching screw #8

1шт.

31

1889967

SPRING - cap

2шт.

32

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- attaching, cap spring

2шт.

33

121841

LOCK WASHER,#8

WASHER, LOCK, , Cap spring, attaching screw #8

2шт.

34

1847289

SUPPORT - cap spring

1шт.

35

1889999

SUPPORT - cap spring and cover locator

1шт.

36

811912

WASHER

- spacer, drive shaft

1шт.

37

810074

WASHER - shim, shaft end (.005" thick)

1шт.

810078

WASHER - shim, shaft end (.010" thick)

1шт.

38

1908702

HYDRAULIC SYSTEM

GEAR - drive

1шт.

39

1862218

PIN - drive gear to shaft end

1шт.

40

1940559

HOUSING - distributor (Includes bushing and pipe plug)

1шт.

1909003

PISTON ASSY +0.4

BUSHING - distributor housing (Not shown)

1шт.

G45187

ARM - advance, distributor (Delco-Remy no. 1947919) Not shown

1шт.
