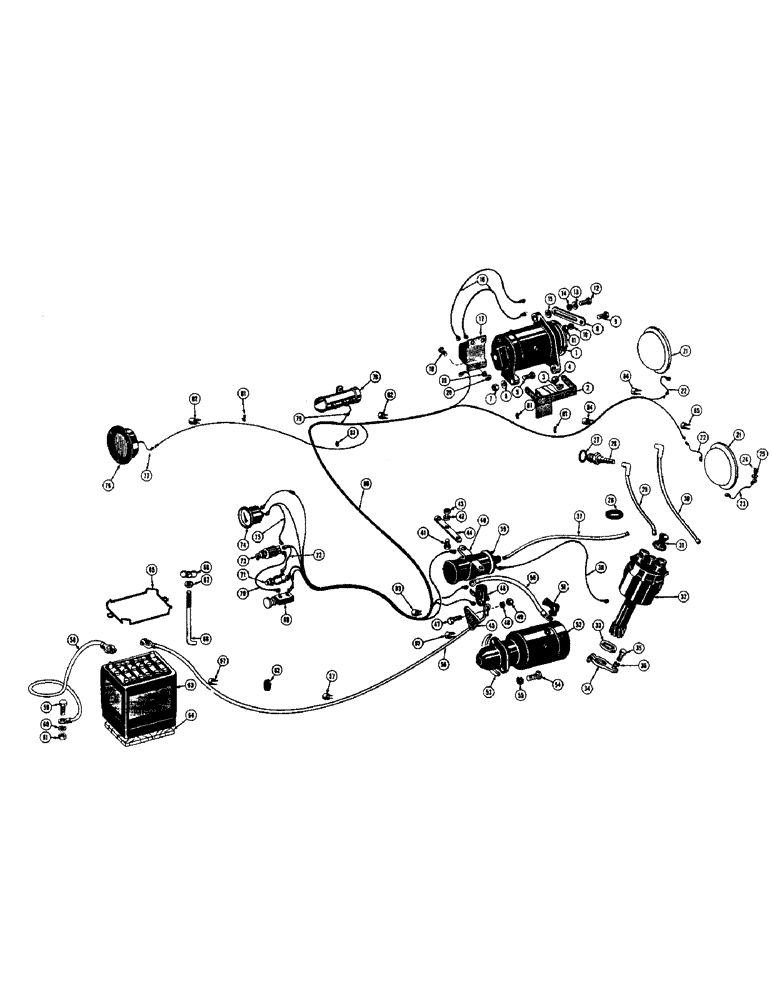

Запчасти Case 420 (026) - STARTER, GENERATOR, BATTERY, AND WIRING (06) - ELECTRICAL SYSTEMS

1

G44844

SPARE PART GENERATOR - 12 volt (Auto-Lite no. GJL-7003-A)

1шт.

G44855

X

GENERATOR - 12 volt (Delco-Remy no. 1100371)

1шт.

103814A1R

REMAN-GENERATOR

Generator

1шт.

103814A1C

CORE-GENERATOR

Return Number

1шт.

108004A1R

REMAN-GENERATOR

Remanufactured Generator - 12 volt 11 ampere

1шт.

108004A1C

CORE-GENERATOR

Return Number, Generator, 12 volt 11 ampere

1шт.

2

D23279

BRACKET - mounting, generator and voltage regulator

1шт.

VT4508

SPARE PART STUD - generator bracket to block (3/8" x 1-1/4") Not shown

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

2шт.

5

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Generator to bracket

2шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

7

129-122

NUT,5/16"-24, G5

2шт.

8

D20352

STRAP - generator adjusting

1шт.

9

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

Adjusting strap

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-116

NUT,Hex, 3/8"-24, G5

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Adjusting strap to generator

1шт.

13

195-103

WASHER,5/16"

(3/8" I.D. x 7/8" O.D. x 5/64" thick)

1шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

15

VT4504

WASHER

Spacer (13/32" I.D. x 7/8" O.D. x 1/8" thick)

1шт.

16

G44028

INSTRUCTION

CABLE - generator to voltage regulator

1шт.

17

G44845

REGULATOR

Voltage, 12 volt (Auto-Lite no. VRT-4203-A)

1шт.

G44852

REGULATOR

Voltage, 12 volt (Delco-Remy no. 1119191)

1шт.

18

173-214

SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"

Machine, round recessed philips head (Zinc plated)

3шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

3шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

3шт.

21

REF

INSTRUCTION

LIGHT - head (See figure 34, ref. no. 16)

2шт.

22

D23219

JUMPER - main wiring harness to head light

2шт.

23

33705

GLASS

WIRE Ground, head light to grille cap

2шт.

24

173-75

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

Ground

2шт.

25

193-5

LOCK WASHER,Ext Tooth, #8

Shakeproof

2шт.

26

G44840

SPARK PLUG

18 mm (Champion no. D-16)

4шт.

27

G46839

GASKET

Spark plug

1шт.

28

V20356

NUT

WASHER - rubber, spark plug wire retaining

1шт.

29

VTA3354

X

WIRE - no. 2 and 3 spark plugs to distributor cap (8-1/2")

2шт.

30

VT2879

X

WIRE - no. 1 and 4 spark plugs to distributor cap (10-1/2")

2шт.

31

VT3561

X

NIPPLE - rubber, spark plug wires and coil cable at distributor

5шт.

32

G11051

DISTRIBUTOR

Auto-Lite no. 1AD-6003-2J (See figure 30 for breakdown)

1шт.

G11919

X

Delco-Remy no. 1111909 (Includes G45187 advance arm) See figure32 for breakdown

1шт.

33

VT5060

X

WASHER - thrust, distributor advance arm

1шт.

34

VTA2775

X

ARM - distributor advance (Auto-Lite distributor only)

1шт.

G45187

ARM - distributor advance (Delco-Remy distributor only)

1шт.

35

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

36

92-4

LOCK WASHER,1/4"

1шт.

37

VT3534

X

CABLE - coil to distributor (11")

1шт.

G46803

BOOT

NIPPLE - rubber, coil to distributor cable at coil (Not shown)

1шт.

38

G13085

ELECTRICAL WIRE

WIRE Coil to distributor (12")

1шт.

39

G44808

X

COIL - ignition

1шт.

40

G46106

BRACKET

BAND - coil mounting

1шт.

173-219

SPARE PART Machine, round head (Zinc plated) No. 10-32 NF x 1-1/2", (Not shown)

1шт.

41

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

42

92-5

LOCK WASHER,5/16"

2шт.

43

25-115

NUT,5/16"-24, G5

2шт.

44

G11705

BRACKET

STRAP - mounting, coil

1шт.

45

G11286

BRACKET - support, solenoid

1шт.

46

G44835

SOLENOID

Starting

1шт.

47

173-214

SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"

Machine, round Philips head

2шт.

48

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

49

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

50

G13164

SPARE PART, Serial Range: Solenoid-starter

1шт.

51

A21753

CAP

NIPPLE - rubber, starter and solenoid terminals

3шт.

52

G44823

SPARE PART MOTOR - starting, 12 volt (Auto-Lite no. MBG-4105)

1шт.

G44853

SPARE PART 12 volt (Delco-Remy no. 1107745)

1шт.

53

V14662

SPARE PART SEAL - felt, starting motor

1шт.

54

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

55

92-7

LOCK WASHER,7/16"

2шт.

56

32375

CABLE

SPARE PART Battery, hot (75")

1шт.

57

49836

CLAMP

Battery cable

3шт.

58

38478

SPARE PART CABLE - battery, ground (16") See D11194

1шт.

59

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

1шт.

60

192-21

LOCK WASHER,3/8"

1шт.

61

129-123

NUT,3/8"-24, G5

1шт.

62

49562

GROMMET,11/16" ID x 1" Groove Dia

Rubber, hot battery cable

1шт.

D11194

KIT

Cable, improved electrical ground

1шт.

58

D27497

SPARE PART Battery, ground (35")

1шт.

59

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

60

92-6

LOCK WASHER,3/8"

1шт.

61

25-106

NUT,3/8"-16, G5

1шт.

62

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

Rubber, battery cables

1шт.

63

G44805

X

BATTERY - 12 volt (Exide no. SS-2SM)

1шт.

64

38750

BOARD - battery bottom

1шт.

65

G46215

X

BRACKET - battery hold down

1шт.

66

38892

SPARE PART Angle, battery hold down bracket retaining (5/16"-18 NC x 10")

2шт.

67

95-5

WASHER,3/8" x 7/8" x .083"

Standard wrot (5/16")

2шт.

68

129-419

WING NUT,5/16"-18

2шт.

69

10855

X

LIGHT SWITCH

1шт.

70

NLS

NO LONGER SERVICED

WIRE JUMPER - ignition to light switch

1шт.

71

D23216

SWITCH

Push button starter

1шт.

72

33709

JUMPER -, Serial Range: ignition-starter

1шт.

73

A10868

DECAL

LOCKSWITCH - ignition

1шт.

74

10860

X

AMMETER AMMETER

1шт.

75

33706

JUMPER -, Serial Range: ignition-ammeter

1шт.

76

30903

SPARE PART Tail, 12 volt

1шт.

33686

BULB

Tail light (Not shown)

1шт.

77

32395

SEAL ASSY.

END - wire, bullet type

1шт.

78

38873

SPARE PART Electric (12 volt)

1шт.

79

32395

SEAL ASSY.

END - wire, bullet type

1шт.

80

38868

SPARE PART Main wiring

1шт.

VT2124

X

FUSE - 20 amp (Mfrs. no. SFE-20), Not shown

2шт.

81

49874

ROD

Wiring

4шт.

82

80049853

YOKE

Wiring

1шт.

83

49836

CLAMP

Wiring

2шт.

84

49838

CLAMP

Wiring

2шт.

85

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

Wiring

1шт.
