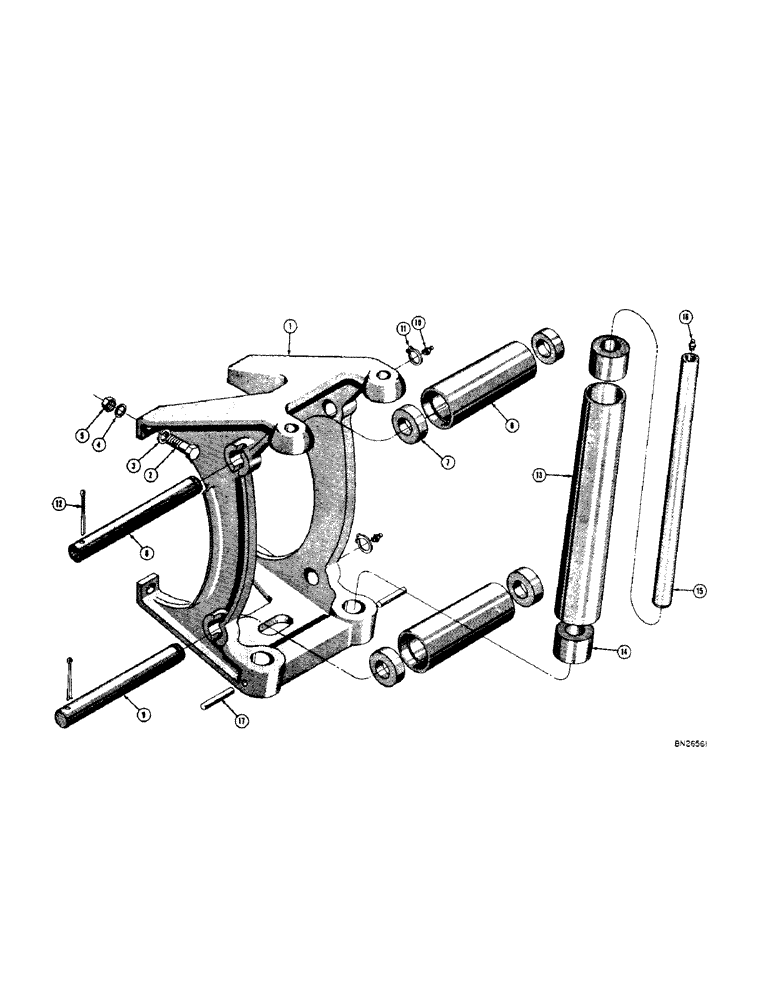

Запчасти Case 420 (194) - C-3 WINCH FAIRLEAD (05) - UPPERSTRUCTURE CHASSIS

1

D28937

BEARING LINER

FRAME - roller (Carco P/N A37901)

1шт.

2

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4 - 16 NF x 2-1/4

4шт.

3

95-12

WASHER,3/4"

- standard wrot () 3/4"

4шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

5

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

4шт.

6

D28938

ROLLER - horizontal (1 used with 3 roller fairlead; 2 used with 4 roller fairlead) (Carco P/N X37904)

1-2шт.

7

D26631

BUSHING - horizontal roller (Carco P/N Y37907)

2-4шт.

8

D28939

SHAFT - horizontal roller, upper (Carco P/N X37902)

1шт.

9

D26629

SHAFT - horizontal roller, lower (Carco P/N X37903)

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT (Carco P/N 1610B)

1-2шт.

11

O179BF

SNAP RING - horizontal roller shaft (Carco P/N XSO-247)

1-2шт.

12

132-204

SPLIT PIN/SAFETY PIN

PIN - cotter, horizontal roller (3/8" x 3")

1-2шт.

13

D26627

ROLLER - vertical (Carco P/N X37905)

2шт.

14

D26628

BUSHING - vertical roller (Carco P/N X37906)

4шт.

15

D26629

SHAFT - vertical roller (Carco P/N X37903)

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT (Carco P/N 1610B)

2шт.

17

138-182

LOCK PIN,3/8" x 3", Slotted

PIN, , Vertical roller shaft 3/8" x 3", Slotted

2шт.
