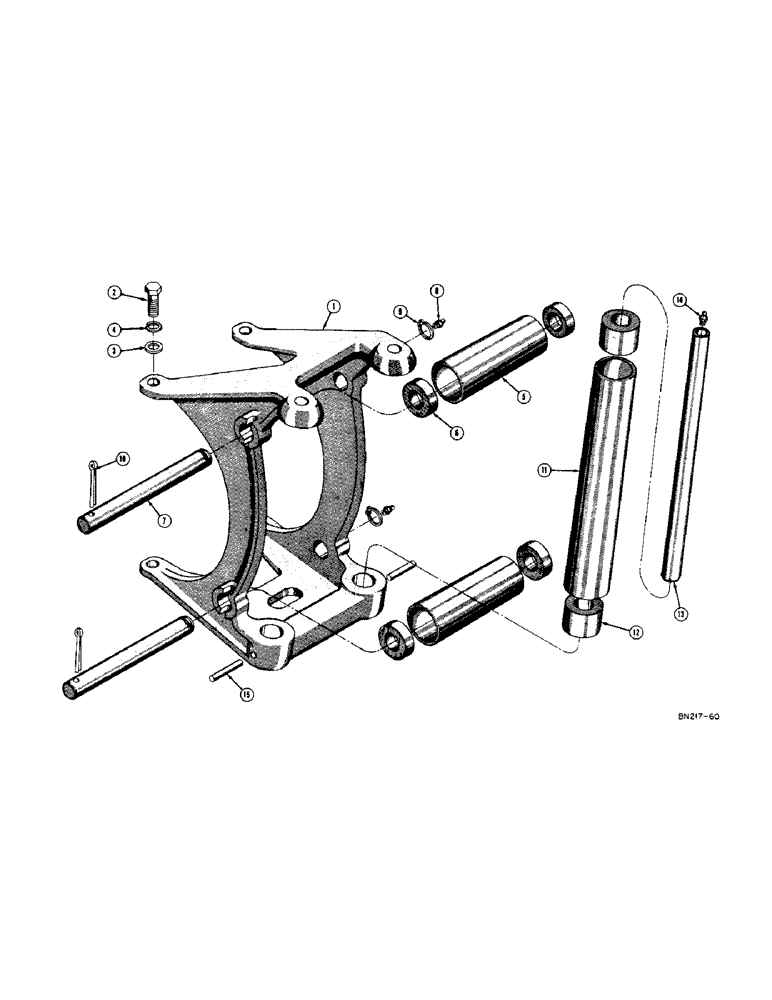

Запчасти Case 420 (182[1]) - C-12 WINCH FAIRLEAD (05) - UPPERSTRUCTURE CHASSIS

1

D26626

FRAME - roller

1шт.

2

14-1224

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5

HHCS - 3/4 - 16 NF x 1-1/2

4шт.

3

95-12

WASHER,3/4"

- plain (3/4)

4шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

5

D26630

ROLLER - horizontal (1 - used with 3 roller fairlead; 2 - used with 4 roller fairlead)

1-2шт.

6

D26631

BUSHING - horizontal roller

4шт.

7

D26632

SHAFT - horizontal roller

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

2шт.

9

O179BF

SNAP RING - horizontal roller shaft

2шт.

10

132-204

SPLIT PIN/SAFETY PIN

PIN - cotter, horizontal roller shaft (3/8 x 3)

2шт.

11

D26627

ROLLER - vertical

2шт.

12

D26628

BUSHING - vertical roller

4шт.

13

D26629

SHAFT - vertical roller

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

2шт.

15

138-182

LOCK PIN,3/8" x 3", Slotted

PIN, , Vertical roller shaft 3/8" x 3", Slotted

2шт.
